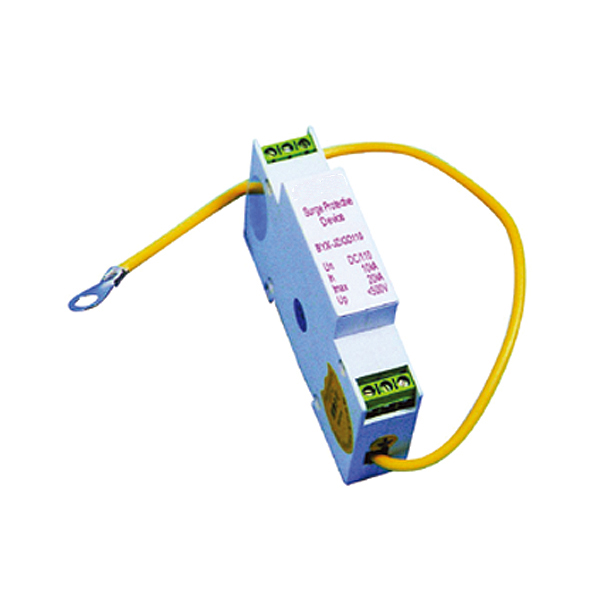

BYX-JZ series signal surge protect device is mainly used to protect telephone and fax ma-chine line, DDN and ISDN special line, computer connect port and auto control equipment.Mounting: 35mm DIN rail in seriesWay: 1,4,8,12,16,24

Type	BYX-JZ GC110	BYX-JZ GD110		BYX-JZ GC48	BYX-JZ GD48		BYX-JZ GC24	BYX-JZ GD24		BYX-JZ GF48	BYX-JZ GF24
Rated voltage Un	DC110V			DC48V			DC24V			DC48V	DC24V
Maximum continuous operating voltage Uc	DC150V			DC60V			DC30V			DC60V	DC30V
Limiting voltage Up (10/700 uS)	≤500V			≤200V			≤120V			≤200V	≤120V
Nominal discharge current (8/20uS) In (KA)	10KV
Surge protected volage Ur (1kV/uS)	≤600V
Transmission Frequency	2MHz		10MHz	2MHz		10MHz	2MHz		10MHz	100MHz
Insertion loss	<0.5db									≤3db
Connect model	Terminals
Protect cores	1,2
Protect method	Whole protection mode
Response time T	<10ns
