BYX-RJ11 Surge protective device

Bookmark This Page

Print This Page

Contact Online

Asia :

　　　　　　　　　　　　Europe & Africa :

Middle East Area :

　　　　Oceania & America :

E-Mail : sales@elecal.com

Catalogue Download (PDF Files)

Add to Inquiry Basket　　

View Inquiry Basket

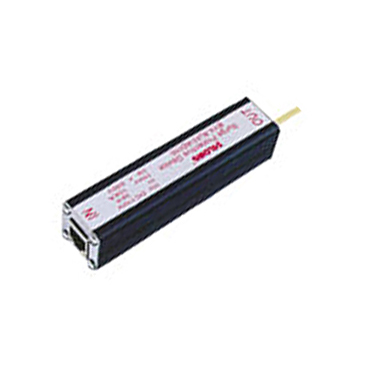

BYX-RJ11/AD110

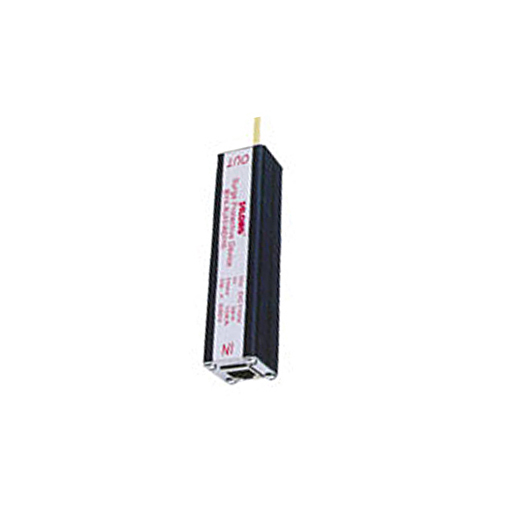

BYX-RJ11/CC48

Introduction

BYX-RJ11 series surge protective device is suiting to such as modem, DDN special line, fax-machine and telephone-machine which protects the electric network shocked by the thunder or surge over voltage.

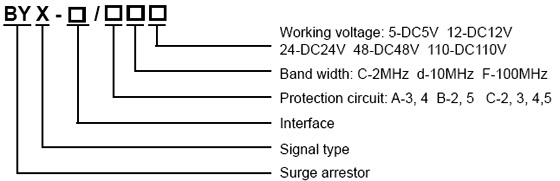

Model and meaning

Technical Parameters

Item	BYX-RJ11
	AC110	BC110	CC110	AC48	BC48	CC48	AC24	BC24	CC24
operating voltage Un	DC110V			DC48			DC24V
Maximum continuous operating voltage	DC150V			DC60V			DC30V
Voltage limiting Up	≤500V			≤200V			≤120V
Normal discharge current In	3kA
Impulse protective voltage Ur(1kv/?s)	≤600V
Frequency range	2MHz
Insertion loss	<0.5db
Interface form	RJ11
Protective feet	3, 4	2, 5	2,3,4,5	3, 4	2, 5	2,3,4,5	3, 4	2, 5	2,3,4,5
Protective way	Full protective mode
Response time	<1ns
Outer covering material	Shiled aluminum

Installation

Electric principal

1. Installed at the interface of the data line between LPZ1 and LPZ3.
2. Suiting to the terminal device such as modem (ISDN, ADSL), DDN special line, fax-machine and telephone machine.
3. Being installed the RJ11 interface, it can make up signal defence thunder case with many poles or return circuits according to the request of the customers.
