| 110-250V socket outlets |
|
IP56 series 110-250V socket outlets feature a patented transparent hinged flap which snaps shut and locks over the socket when the plug is withdrawn, forming an automatic IP66 seal. The flap is transparent so the pin configuration can be readily identified without opening. |
| Technical data |
|

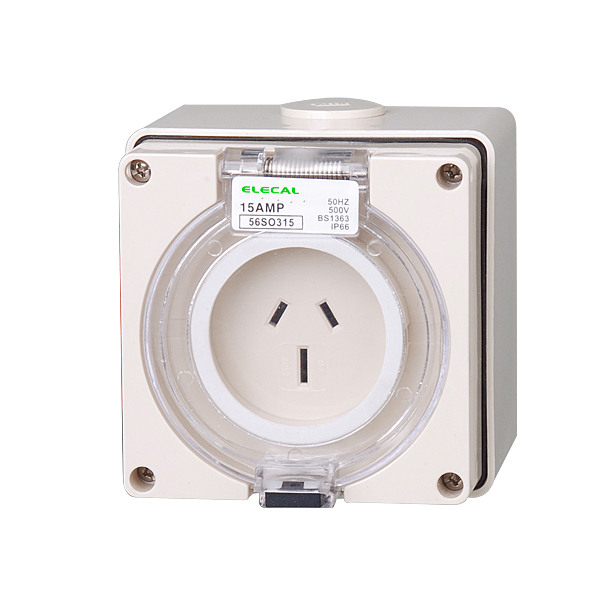

Catalogue No. |
56SO
310 |
56SO
310/2 |
56SO
315 |
56SO
313 |
56SO
316/110 |
56SO
316/240 |
56SO
320 |
56SO
332 |
|
Rated operational voltage Ue(50Hz) |
Volts |
250 |
250 |
250 |
250 |
110
Yellow |
230
Blue |
250 |
250 |
|
Rated thermal current enclosed |
Amps |
10 |
10 |
15 |
13 |
16 |
16 |
20 |
32 |
|
No. of socket pins
(including earth)
|
3 |
3 |
3 |
3 |
3 |
3 |
3 |
3 |
| Description |
NZ/Aust |
NZ/Aust
Twin
Socket outlet |
NZ/Aust |
BS
Square pin |
CEE17.6h |
CEE17.6h |
AS3123 |
AS1323 |
| Socket configuration |
|
|
|
|
|
|
|
|
| Cable cross sections solid or stranded mm2 |
Min |
0.75 |
0.75 |
0.75 |
0.75 |
0.75 |
0.75 |
1.0 |
1.0 |
| Max |
10 |
10 |
10 |
10 |
6 |
6 |
10 |
10 |
| IP rating |
IP66 |
IP66 |
IP66 |
IP66 |
IP66 wihtout plug
IP44 with plug |
IP66 wihtout plug
IP44 with plug |
IP66 |
IP66 | |
| 500V socket outlets |
| Socket units are standard one gang module use with 56E1 enclosures combining with other accessories in a larger enclosure. |
|

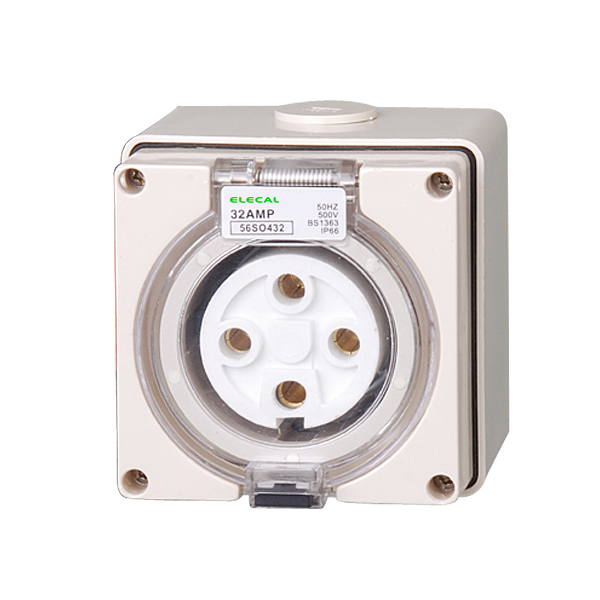

Catalogue No. |
56SO
416 |
56SO
416K |
56SO
420 |
56SO
432 |
56SO
435 |
56SO
440 |
56SO
450 |
56SO
516 |
|
Rated operational voltage Ue(50Hz) |
Volts |
500 |
500 |
500 |
500 |
500 |
500 |
500 |
500 |
|
Rated thermal current enclosed |
Amps |
16 |
16 |
20 |
32 |
35 |
40 |
50 |
16 |
|
No. of socket pins
(including earth)
|
4 |
4 |
4 |
4 |
4 |
4 |
4 |
4 |
| Socket configuration |
|
|
|
|
|
|
|
|
| Cable cross sections solid or stranded mm2 |
Min |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
| Max |
10 |
10 |
10 |
16 |
16 |
16 |
25 |
10 |
| IP rating |
IP66 |
IP66 |
IP66 |
IP66 |
IP66 |
IP66 |
IP66 |
IP66 |
|

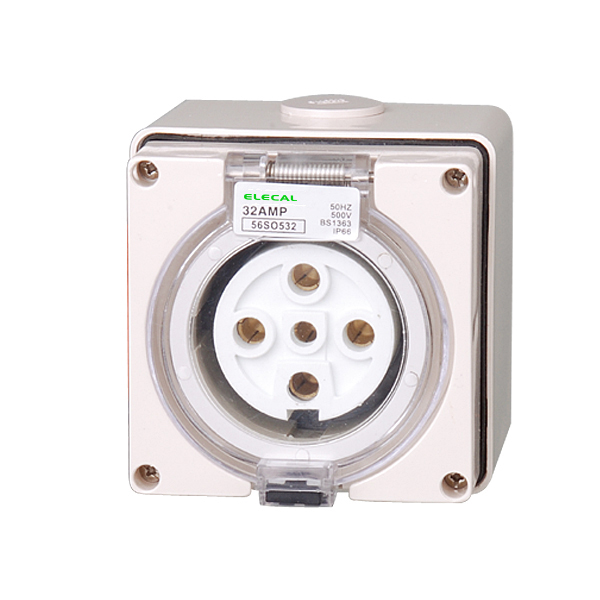

Catalogue No. |
56SO
520 |
56SO
532 |
56SO
535 |
56SO
540 |
56SO
550 |
56SO
616 |
56SO
716 |
56SO
720 |
|
Rated operational voltage Ue(50Hz) |
Volts |
500 |
500 |
500 |
500 |
500 |
500 |
500 |
500 |
|
Rated thermal current enclosed |
Amps |
20 |
32 |
35 |
40 |
50 |
20 |
16 |
20 |
|
No. of socket pins
(including earth)
|
5 |
5 |
5 |
5 |
5 |
5 |
7 |
7 |
| Socket configuration |
|
|
|
|
|
|
|
|
| Cable cross sections solid or standed mm2 |
Min |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
| Max |
10 |
16 |
16 |
16 |
25 |
10 |
10 |
10 |
| IP rating |
IP66 |
IP66 |
IP66 |
IP66 |
IP66 |
IP66 |
IP66 |
IP66 | |
