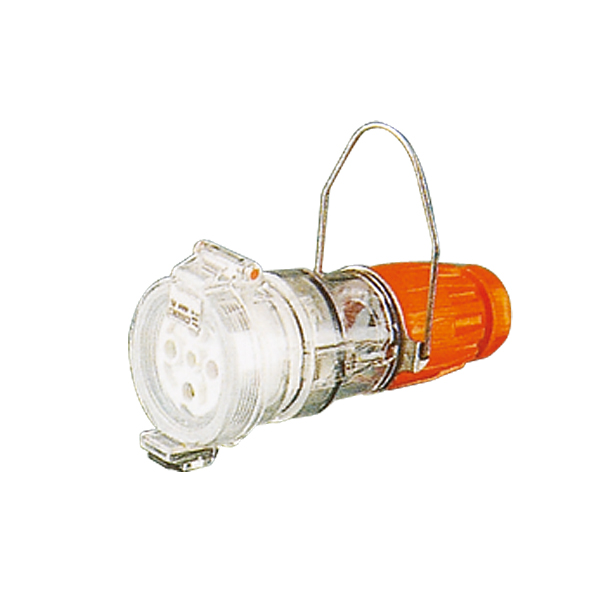

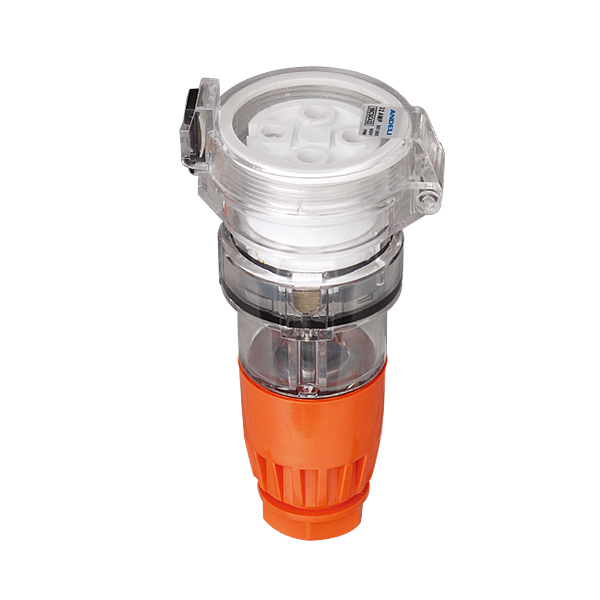

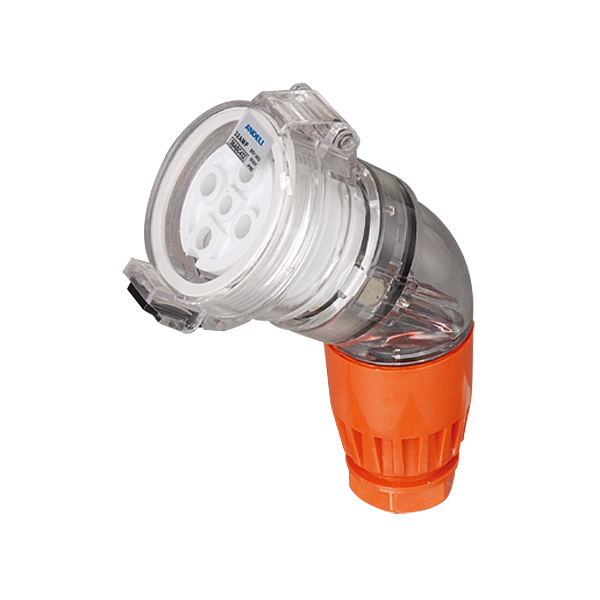

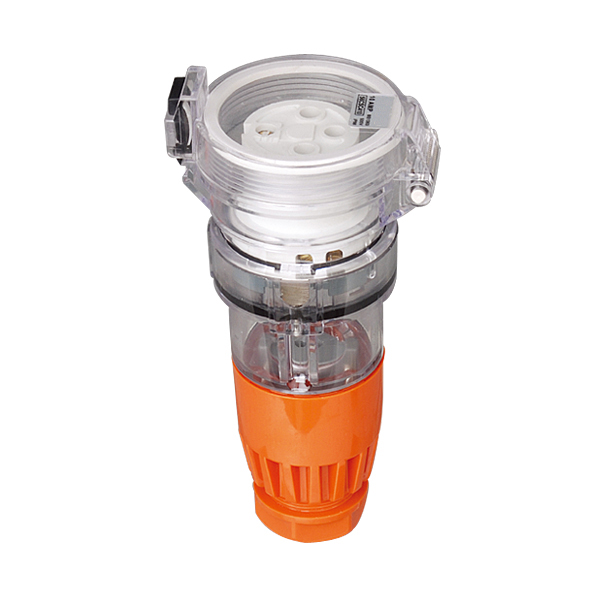

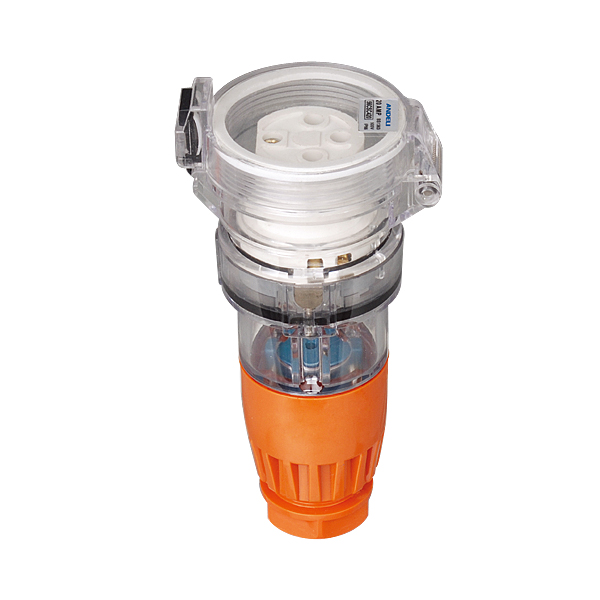

Extension Sockets & Appliance Connectors

Three phase extension socket/appliance connector is an important design breakthrough.

Now there is a common unit for both cord extension socket and appliance connector applications.

All connectors have impact resistant, UV stabilised mouldings.

The IP66 rating can be achieved when extension socket/connectors are used in conjunction with compatible accessories such as 56P plugs, 56PA plugs and 56A1 appliance inlets.

IP66 rated units feature a hose proof cap which maintains the intemational protection rating when the accessory is not being used.

Note:Cap not provide as standard with single phase extension sockets. Refer 56T series for terminators to connect hose to non standard gland nut thread.

Options available: 56SC2 socket cap to suit single phase extension sockets. 56CSC310 and 56CSC315 available in resistant orange -add RO to catalugue Number, e.g.56CSC310 becomes 56CSC310RO.

Pendant Outlets

56PO three phase pendant outlets are a hanging version of our 56CSC connectors. All have impact resistant UV stabilised mouldings.

250V plugs

The 56 series single phase plugs are available in 10A, 15A, 20A and 32A Pin configurations to suit the Australian and New Zealand markets and in the British 13A square pin configuration. All plugs are IP66 rated.
