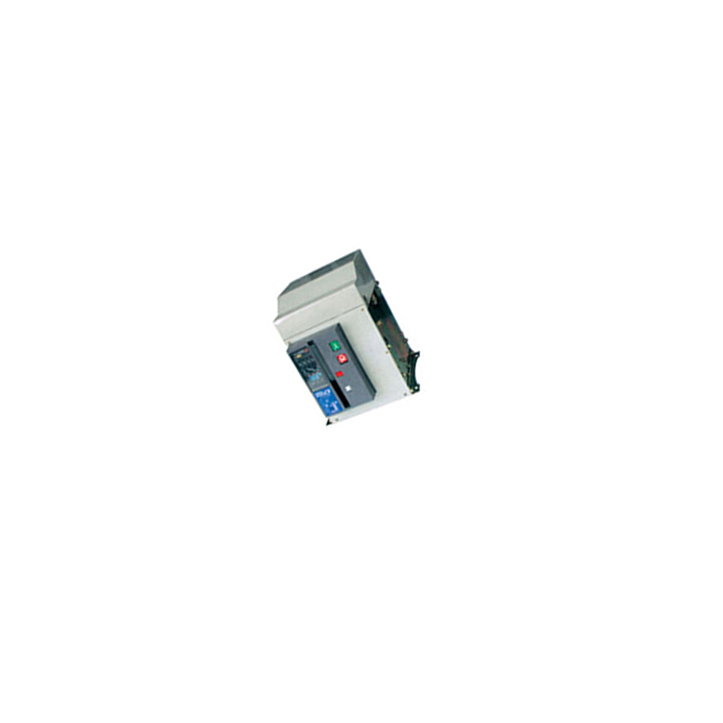

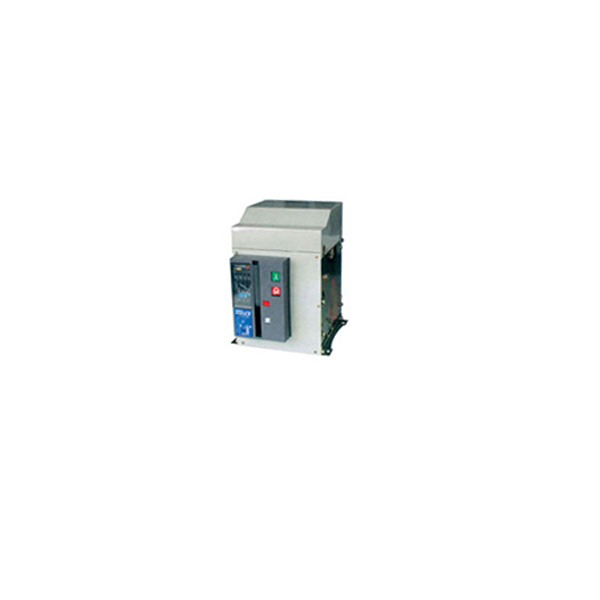

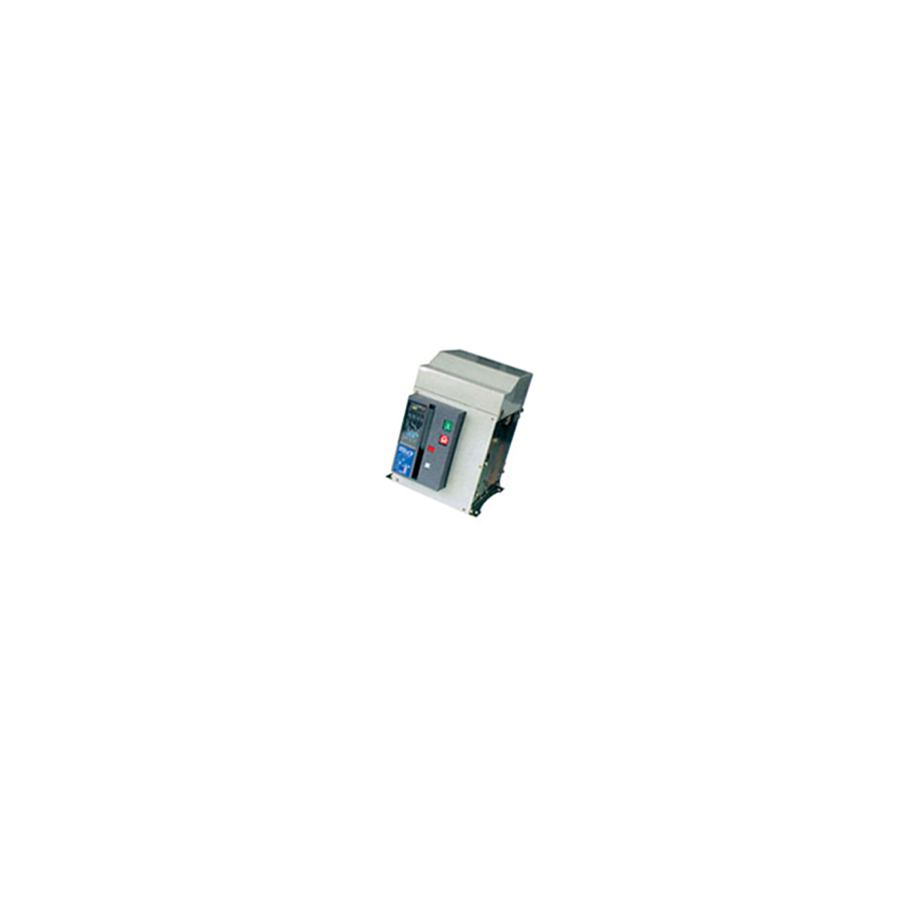

DW15HH Series intellect type universal circuit breaker
DW15HH Series intellect type universal circuit breaker is used for controlling and protect low voltage distribution network. It usually installs in the low voltage distribution cabinet as the main switch for the main protection, the technique performance has reached the same type products in advanced standard of international.

Main technical Specifications

Rated current of frame (Inm)A		4000	2000	Enter line way	Fly arcly Distance
Rated ultimate Short Circuit Breaking CapacityIcu(KA)O-CO	400V	80	50	up enter line or down enter line	20mm
	690V	-	30
Rated ultimate short circuit connection capacity nlcu/cosΦ	400V	176/0.2	105/0.25
	690V	-	-
Rated capacity of short circuit breaker Ics(kA)O-CO-CO	400V	60	50
	690V	-	-
Rated short time current lcw(kA)1s,Delay time0.4s,O-CO	400V	60	40
	690V	-	-
