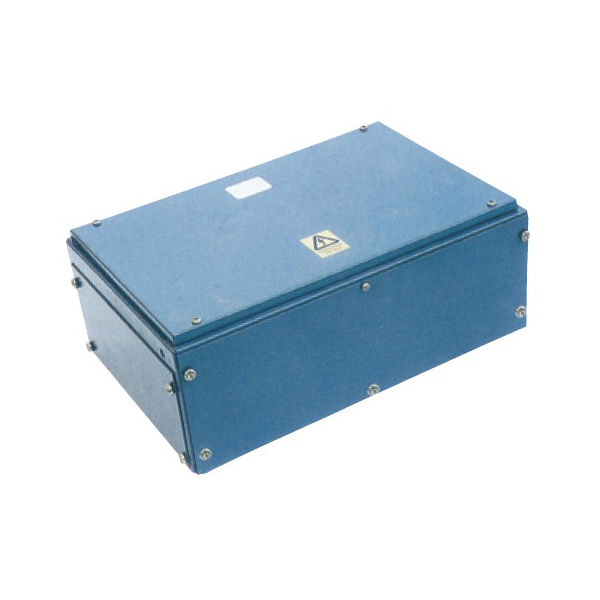

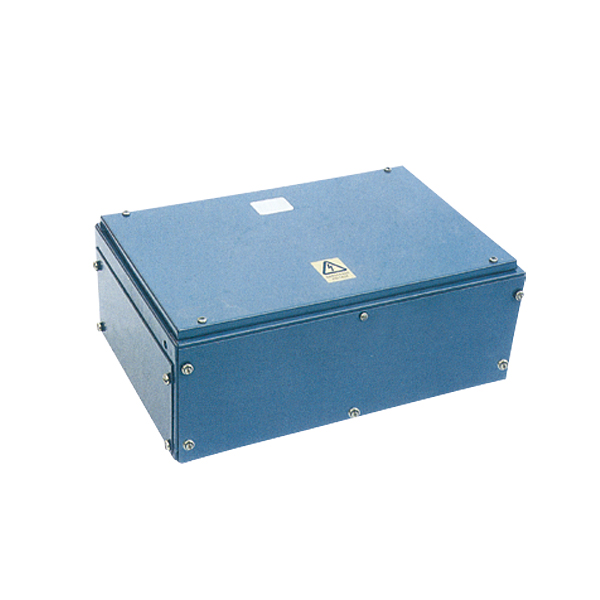

Busbar Chamber AMBC-M
 |
 |
Add to Inquiry Basket
View Inquiry Basket
The products that you selected had been put into inquiry basket !1.Application
AMBC-M busbar chamber system is designed to provide either compact, wall-mount-ing installations or by using optional pedestal sets easily assembled switchboards.Every facility is provided to enable it to be mounted easily and economically to busbarchambers which can be applied either to a suitable load-bearing vertical surface; or bymeans of a pedestal set, affixed to a vertical surface which need not be load-bearing.These are produced in 100, 200, 400, 630 and 800 Amp
| Current | List No. according to nominal length (mm) | |||
|---|---|---|---|---|
| (A) | 550 | 900 | 1350 | 1800 |
| 100 | 142 BBC | 143 BBC | 144 BBC | 146 BBC |
| 200 | 242 BBC | 243 BBC | 244 BBC | 246 BBC |
| 400 | 442 BBC | 443 BBC | 444 BBC | 446 BBC |
| 630 | - | 643 BBC | 644 BBC | 646 BBC |
| 800 | - | 843 BBC | 844 BBC | 846 BBC |
| Nominal | A | B | C | D | E | F | G |
|---|---|---|---|---|---|---|---|
| length (mm) | mm | mm | mm | mm | mm | mm | mm |
| 1800 | 1812 | 364 | 222 | 280 | 1724 | 862 | 6 |
| 1350 | 1362 | 364 | 222 | 280 | 1274 | - | 4 |
| 900 | 912 | 364 | 222 | 280 | 824 | - | 4 |
| 550 | 562 | 364 | 222 | 280 | 474 | - | 4 |
