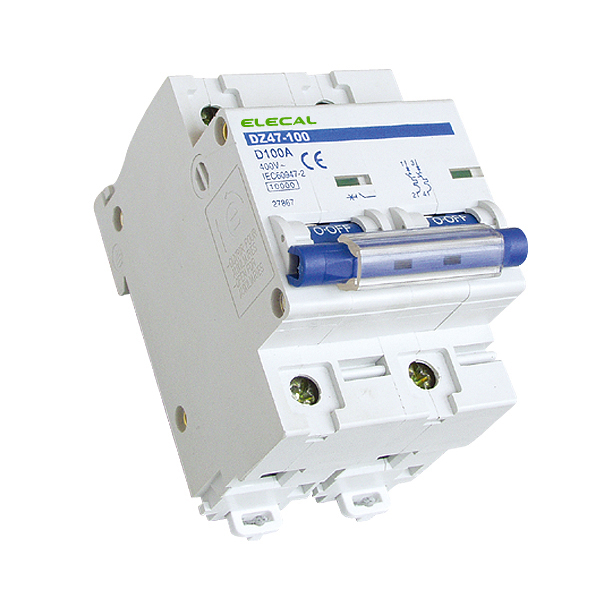

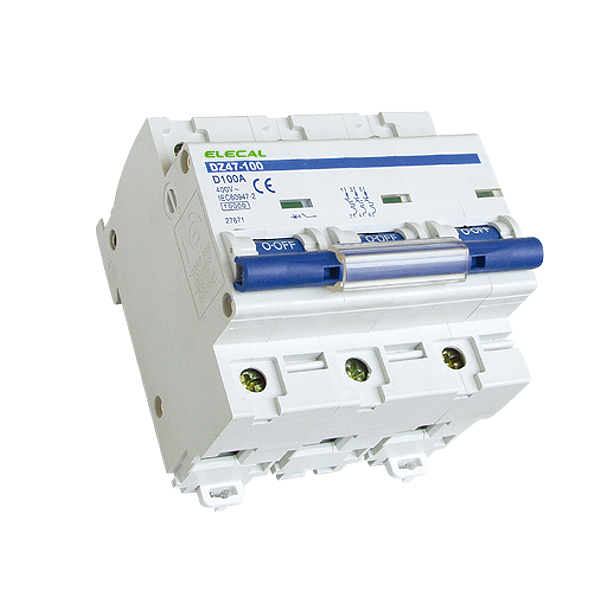

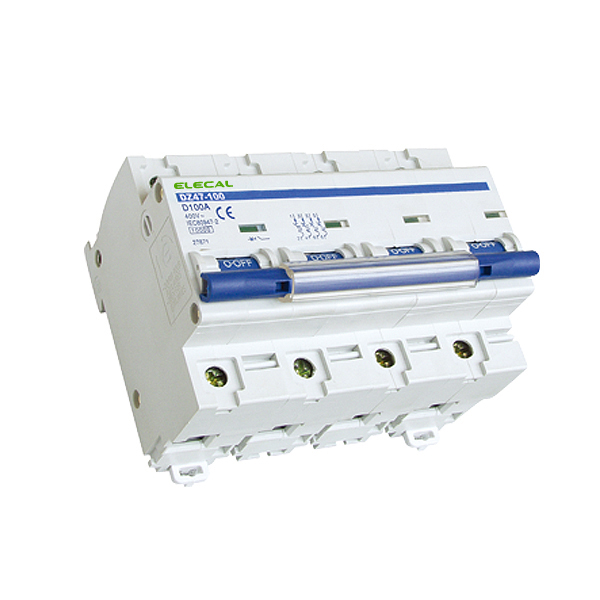

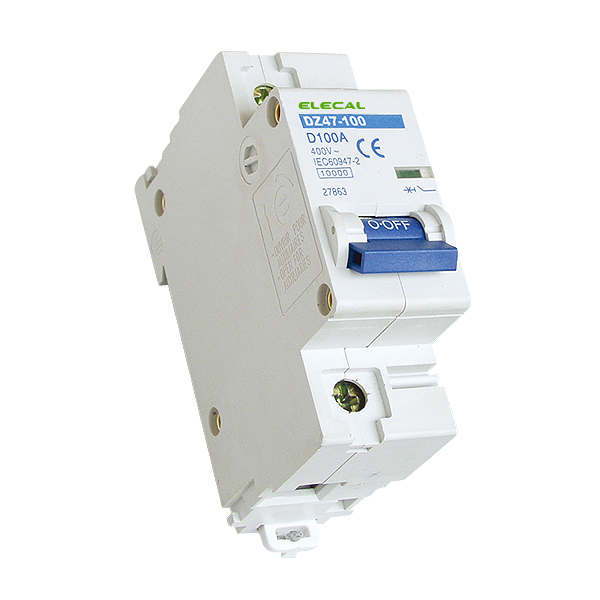

1. Application

DZ47-100 is such features as delicate appearance, light weight, excellent and reliableperformance, high breaking capacity, rapid tripping and mounted by rail. Its enclosure and com-ponents adopts high fire-retarding and shock-resistance plastic of long durability. It mainly servesfor protecting the circuits of AC 50Hz, 230V of single pole, 400V of two poles or three or fourpoles from overload or short-circuit, and also for unfrequent making and breaking electricalapparatus and lighting circuit.It conforms with the standards of IEC60947-2.



2. Main Technical Parameter

Type	DZ47-100
Pole	1P	2P,3P,4P
Rated current (A)	63,80,100
Rated voltage (V)	230	400
Ambient temperature	-5oC~+40oC
Type of instantaneous release	C,D
Rated short circuit breaking capacity Icn(kA)	6

3. The over-current protection property

Ambient Temperature	Initial Status	Test Current	Expected Result	Expected Result	NOte
40±2oC	Cold position	1.05In(In≤63A)	t≤1h	Non-release	-
	Cold position	1.05In (In[63A)	t≤2h	Non-release	-
	Carried out immedi-ately after previous test	1.30In(In≤63A)	t < 1h	Release	Current smoothlyrises to specified value within 5s
		1.30In (In>63A)	t < 2h	Release
-5~+40oC	Cold position	8.00In	t≤0.2s	Non-release	-
	Cold position	12.00In	t< 0.2s	Non-release	-

4. Applicable conducting wire

Rated current(A)	Nominal cross section of wire mm2
63A	16
80A	25
100A	35

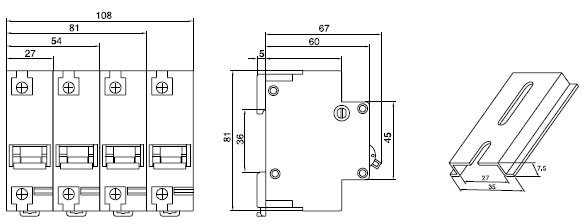

5. Dimension
