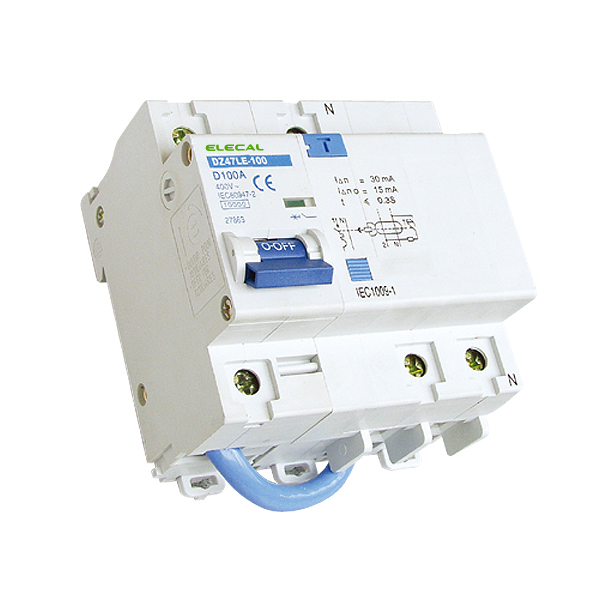

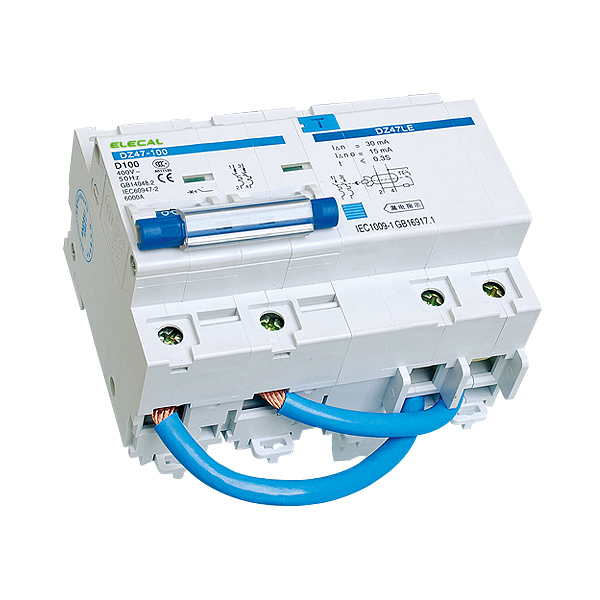

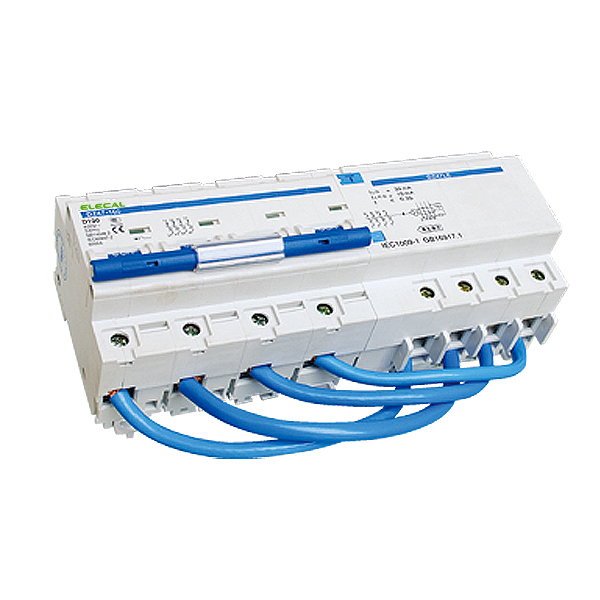

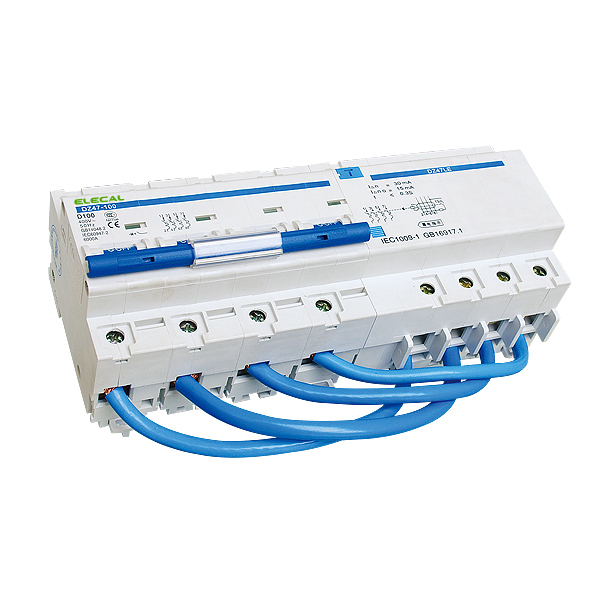

DZ47LE-100 Residual Current Operated Circuit Breaker With Over-current Protection

Bookmark This Page

Print This Page

Contact Online

Asia :

　　　　　　　　　　　　Europe & Africa :

Middle East Area :

　　　　Oceania & America :

E-Mail : sales@elecal.com

Catalogue Download (PDF Files)

Add to Inquiry Basket　　

View Inquiry Basket

1. Application

DZ47LE-100 is applicable to a line of AC 50Hz/60Hz, rated voltage 230V for single pole two-wire, 2-pole or 400V for 3-pole, 3-pole 4-wire, 4-pole and rated current up to 40A. It can protectthe line and motor from overload and short circuit. It can also be used for infrequent line conver-sion and infrequent motor start. It conforms with the standards of IEC60947-2.

2. Main Technical Parameter

Type	DZ47LE-100
Pole	1P+N, 2P	3P, 3P+N, 4P
Rated current (A)	63,80,100
Rated voltage(V)	230	400
Rated short circuit breaking capacity Icn(KA)	6
Rated residual making/breaking capacity I△m(A)	2000
Rated residual action current I△n(A)	0.03,0.1,0.3
Rated residual non-action current I△no(A)	0.5I△n
Over voltage protection grade	280V±5%

3. Applicable conducting wire

Rated current(A)	63	80	100
Nominal cross section of wire mm²	16	25	35

4. Residual current breaking time

In(A)	I△n(A)	Breaking time(s) when equals to rating following
In(A)	I△n(A)	I△n	2I△n	5I△n	5,10,20,50,100,200,500^a(A)	I△tb
6-63	0.03, 0.05, 0.1, 0.3	0.1	0.06	0.04	0.04	0.04

5. The over-current protection property

Ambient Temperature	Initial Status	Test Current	Expected Result	Expected Result	NOte
40±2^oC	Cold position	1.05In(In≤63A)	t≤1h	Non-release	-
	Cold position	1.05In (In[63A)	t≤2h	Non-release	-
	Carried out immedi-ately after previous test	1.30In(In≤63A)	t < 1h	Release	Current smoothlyrises to specified value within 5s
	Carried out immedi-ately after previous test	1.30In (In>63A)	t< 2h	Release	Current smoothlyrises to specified value within 5s
-5~+40^oC	Cold position	8.00In	t≤0.2s	Non-release	-
-5~+40^oC	Cold position	12.00In	t < 0.2s	Non-release	-

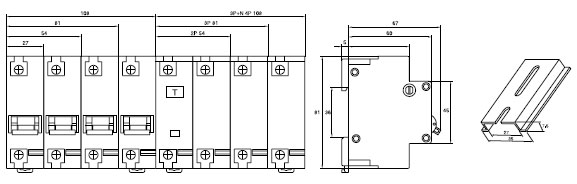

6. Dimension
