1. Application

JR29 series thermal overload relay is mainly suitable for A.C.electric power system with volt-age up to 660V, current up to 500A, 50/60Hz. It is generally used for the protection of overloadand phase-lacking in circuits with three-phase induce motors and is often made up electromag-netic starters with CJX8 series A.C. contactors. The product conforms to IEC60947-4-1 stardand.Noter: JR29-16 is manually reset automatic to the other.

2. Motion Characteristic: Three-phase Balance Motion Time

No Times the setting current Motion time Start conidition Ambient temperature 1 1.05 >2h cold state 20oC±5oC 2 1.2 <2h heat state (Following the No.1 test) 3 1.5 <4min 4 7.2 10A 2s< TP ≤ 10S ≤ 63A cold state 10 4s< TP ≤ 10S ≤ 63A

3. Phase-losing Motion Characteristic

No Times the setting current Motion time Start condition Ambient temperature Any two phase Another phase 1 1.0 0.9 >2h cold state 20oC±5oC 2 1.15 0 <2h heat state (Following the No.1 test)

4. Specification

Type Setting Range(A) For Contactor JR29-16 0.11~0.16 CJX8-09 CJX8-16 0.14~0.21 0.19~0.29 0.27~0.4 0.35~0.52 0.42~0.63 0.55~0.83 0.7~10. 0.9~1.3 1.1~1.5 1.3~1.8 1.5~2.1 1.7~2.4 2.1~3 2.7~4 3.4~4.5 4~6 5.2~7.5 6.3~9 7.5~11 9~13 12~17.6		Type Setting Range(A) For Contactor JR29-25 0.1~0.16 CJX8-25 CJX8-30 0.16~0.25 0.25~0.4 0.4~0.63 0.63~1 1~1.4 1.3~1.8 1.7~2.4 2.2~3.1 2.8~4 3.5~5 4.5~6.5 6~8.5 7.5~11 10~14 13~19 18~25 24~32 - - - -
Type Setting Range(A) For Contactor JR29-45 0.28~4 CJX8-37 CJX8-45 0.35~0.52 0.45~0.63 0.55~0.83 0.7~1 0.86~1.3 1.1~1.6 1.4~2.1 1.8~2.5 2.2~3.3 2.8~4 3.2~5.2 4.5~6.3 5.5~8.3 7~10 8.6~13 11~16 14~21 18~27 25~35 30~45 - - -		Type Setting Range(A) For Contactor JR29-85 6~10 CJX8-65 CJX8-85 8~14 12~20 17~29 25~40 35~55 45~70 60~100 JR29-105 27~42 CJX8-105 36~52 45~63 57~82 70~105 80~115 JR29-170 90~130 CJX8-170 100~160 140~200 JR29-250 100~160 CJX8-250 160~250 250~400 JR29-370 100~160 CJX8-370 160~250 250~400 310~500

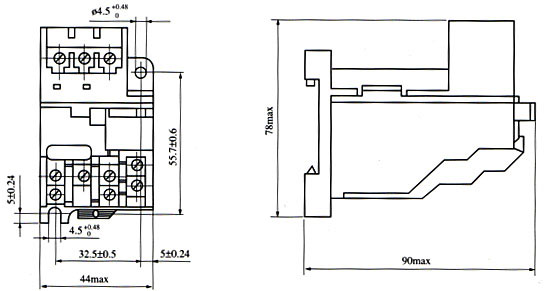

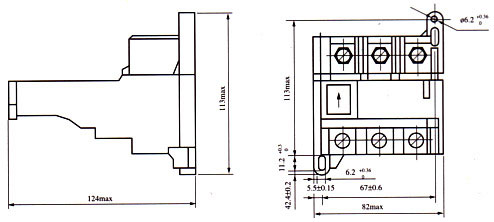

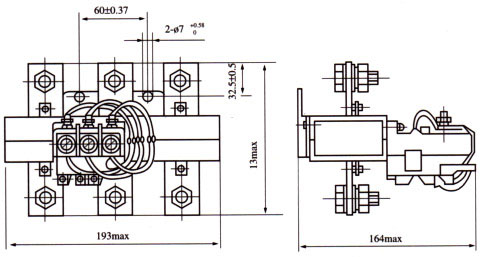

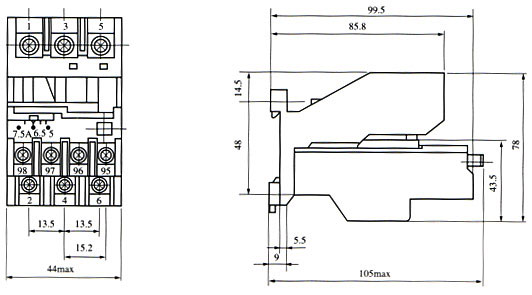

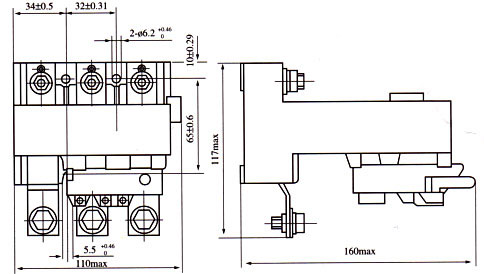

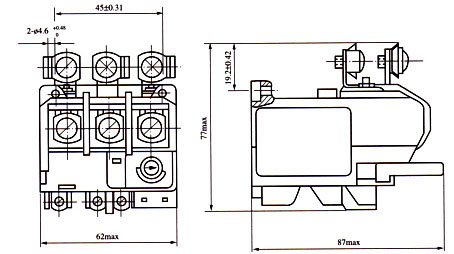

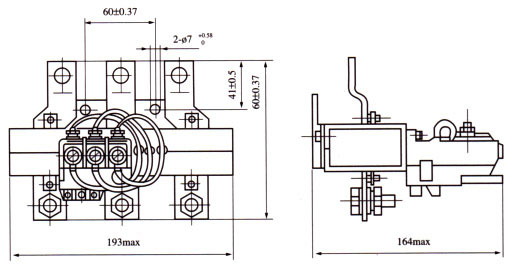

5. Outline and Mounting Dimension

JR29-16 Independent installation

JR29-25 Independent installation

JR29-45 Independent installation

JR29-85 Independent installation

JR29-105 Independent installation

JR29-250 Independent installation

6. Accessories

Pic Description JR29-16 mounting base JR29-25 mounting base JR29-75 mounting base Application Assembled with JR29-16 to form acomplete set Assembled with JR29-25 to form acomplete set Assembled with JR29-75 to form acomplete set
