JDB200-B series solid state overload relay
 |
 |
 |
Add to Inquiry Basket
View Inquiry Basket
The products that you selected had been put into inquiry basket !1.Application
The JDB200-B series solid state overload relay is suitable for protection of phase-failurre and overload of AC motor of AC50/60Hz, rated voltage up to 690V, rated current up to 600A. The features are reliable, lower energy comsumption and broad adjusting current. The product confirms to IEC60947-4-1 standard.
2.Specification
The JDB200-B series solid state overload relay is suitable for protection of phase-failurre and overload of AC motor of AC50/60Hz, rated voltage up to 690V, rated current up to 600A. The features are reliable, lower energy comsumption and broad adjusting current. The product confirms to IEC60947-4-1 standard.
2.Specification
| Type | Number | Rated current(A) | Setting current range(A) |
|---|---|---|---|

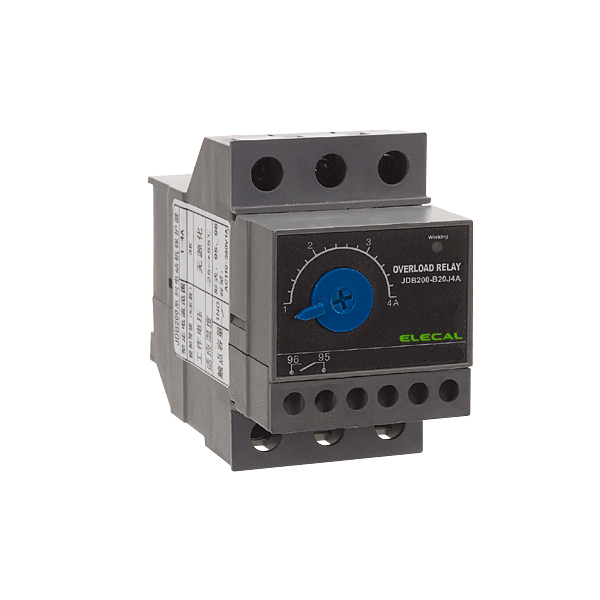

| JDB200-B20J | 1.2A | 20 | 0.3~1.2 |
| 4A | 1~4 | ||
| 12A | 3~12 | ||
| 20A | 5~20 | ||
| JDB200-B60C | 8A | 60 | 2~8 |
| 20A | 5~20 | ||
| 60A | 15~60 | ||

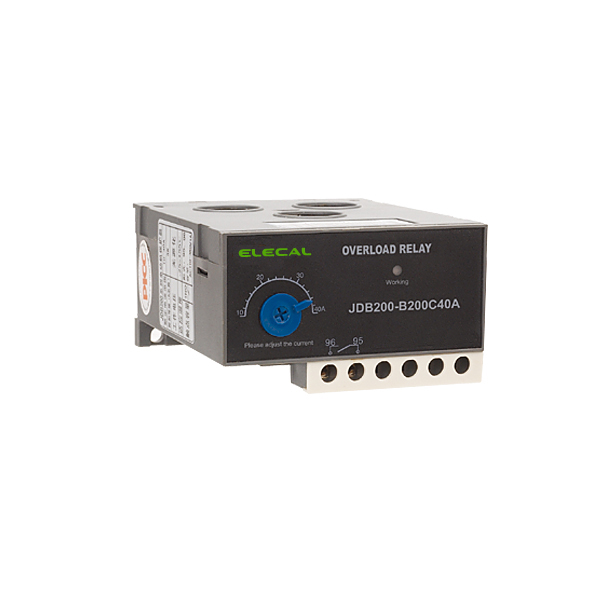

| JDB200-B200C | 40A | 200 | 10~40 |
| 120A | 30~120 | ||
| 200A | 50~200 | ||

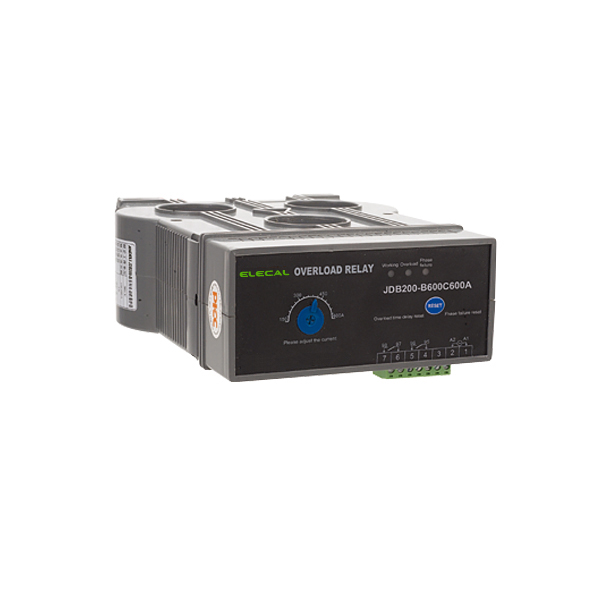

| JDB200-B600C | 200A | 600 | 50~200 |
| 600A | 150~600 |
