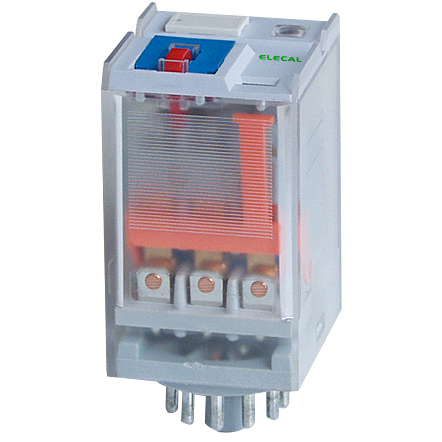

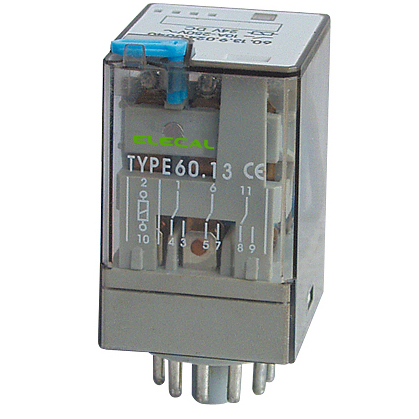

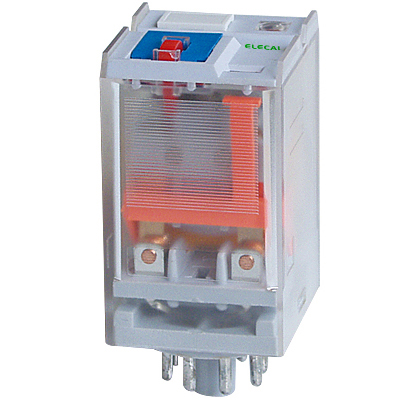

60.13-I, 70.2, 70.3
 |
 |
 |
Add to Inquiry Basket
View Inquiry Basket
The products that you selected had been put into inquiry basket !| Specifications Model | 60.13-I | 70.2 | 70.3 | |
|---|---|---|---|---|
| Terminal layout | 3Z | 2Z | 3Z | |
| Contact capacity | AC | 10A 250V | 10A 250V | 10A 250V |
| DC | 10A 30V | 10A 30V | 10A 30V | |
| Contact resistance(m) | ≤50m | ≤50m | ≤50m | |
| Insulation resistance(M) | ≥500M | ≥500M | ≥500M | |
| Dielectric strength | BOC | 1500VAC | 1500VAC | 1500VAC |
| BCC | 1500VAC | 1500VAC | 1500VAC | |
| Coil nominal voltage | AC | 6 to 380V | 6 to 380V | 6 to 380V |
| DC | 6 to 220V | 6 to 220V | 6 to 220V | |
| Coil nominal power | AC | 2.0VA to 2.8VA | 2.0VA to 2.8VA | 2.0VA to 2.8VA |
| DC | ≤1.5W | ≤1.5W | ≤0.5W | |
| Electrical life(OPS) | 105 | 105 | 105 | |
| Mechanical life(OPS) | 107 | 107 | 107 | |
| Operating temperature(oC) | -40~+60 | -40~+60 | -40~+60 | |
| Weight(g) | ≤80 | ≤85 | ≤85 | |
| Mounting methods | Outlet | Outlet | Outlet | |
