General Relay
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
Add to Inquiry Basket
View Inquiry Basket
The products that you selected had been put into inquiry basket !1.Main Technical Parameter

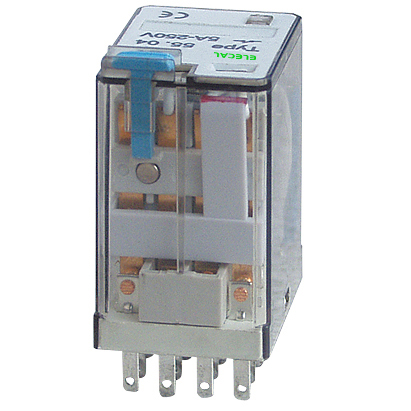

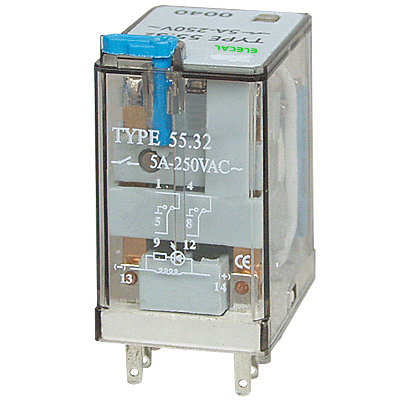

| Specifications Model | 55.02 | 55.04 | 55.32 | |
|---|---|---|---|---|
| Terminal layout | 2Z | 4Z | 2Z | |
| Contact capacity | AC | 10A 250V | 5A 250V | 5A 250V |
| DC | 10A 30V | 5A 30V | 5A 30V | |
| Contact resistance(m) | ≤50m | ≤50m | ≤50m | |
| Insulation resistance(M) | ≥100M | ≥100M | ≥100M | |
| Dielectric strength | BOC | 1000VAC | 1000VAC | 1000VAC |
| BCC | 1500VAC | 1500VAC | 1500VAC | |
| Coil nominal voltage | AC | 6 to 240V | 6 to 240V | 6 to 240V |
| DC | 6 to 110V | 6 to 110V | 6 to 110V | |
| Coil nominal power | AC | 0.9VA to 1.2VA | 0.9VA to 1.2VA | 0.9VA to 1.2VA |
| DC | ≤0.9W | ≤0.9W | ≤0.9W | |
| Electrical life(OPS) | 105 | 105 | 105 | |
| Mechanical life(OPS) | 107 | 107 | 107 | |
| Operating temperature(oC) | -40~+60 | -4~+60 | -40~+60 | |
| Weight(g) | ≤35 | ≤35 | ≤35 | |
| Mounting methods | Printed-circuit board, Flange, Outlet | Printed-circuit board, Flange, Outlet | Printed-circuit board, Flange, Outlet | |

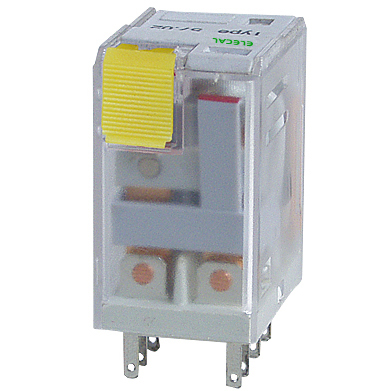

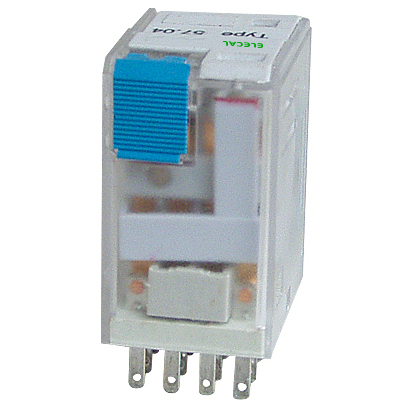

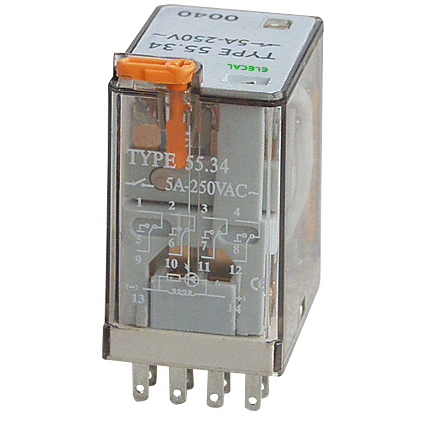

| Specifications Model | 55.34 | 57.02 | 57.04 | |
|---|---|---|---|---|
| Terminal layout | 4Z | 2Z | 4Z | |
| Contact capacity | AC | 5A 250V | 10A 250V | 5A 250V |
| DC | 5A 30V | 10A 30V | 5A 30V | |
| Contact resistance(m) | ≤50m | ≤50m | ≤50m | |
| Insulation resistance(M) | ≥100M | ≥100M | ≥100M | |
| Dielectric strength | BOC | 1000VAC | 1000VAC | 1000VAC |
| BCC | 1500VAC | 1500VAC | 1500VAC | |
| Coil nominal voltage | AC | 6 to 240V | 6 to 240V | 6 to 240V |
| DC | 6 to 110V | 6 to 110V | 6 to 110V | |
| Coil nominal power | AC | 0.9VA to 1.2VA | 0.9VA to 1.2VA | 0.9VA to 1.2VA |
| DC | ≤0.9W | ≤0.9W | ≤0.9W | |
| Electrical life(OPS) | 105 | 105 | 105 | |
| Mechanical life(OPS) | 107 | 107 | 107 | |
| Operating temperature(oC) | -40~+60 | -40~+60 | -40~+60 | |
| Weight(g) | ≤35 | ≤35 | ≤35 | |
| Mounting methods | Printed-circuit board, Flange, Outlet | Printed-circuit board, Flange, Outlet | Printed-circuit board, Flange, Outlet | |

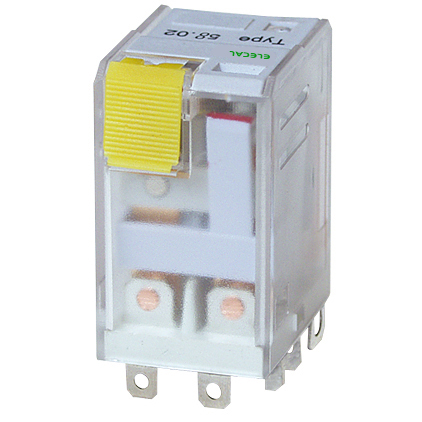

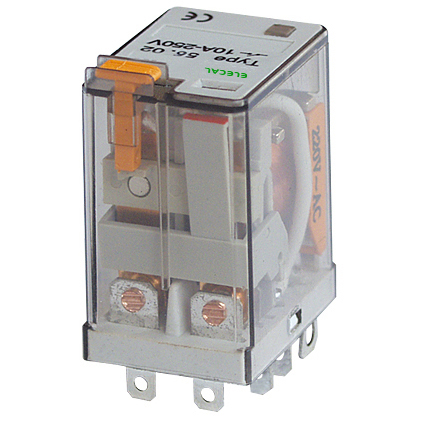

| Specifications Model | 56.02 | 56.04 | 58.02 | |
|---|---|---|---|---|
| Terminal layout | 2Z | 4Z | 2Z | |
| Contact capacity | AC | 10A 250V | 10A 250V | 10A 250V |
| DC | 10A 28V | 10A 28V | 10A 28V | |
| Contact resistance(m) | ≤50m | ≤50m | ≤50m | |
| Insulation resistance(M) | ≥100M | ≥100M | ≥100M | |
| Dielectric strength | BOC | 1000VAC | 1000VAC | 1000VAC |
| BCC | 1500VAC | 1500VAC | 1500VAC | |
| Coil nominal voltage | AC | 6 to 240V | 6 to 240V | 6 to 240V |
| DC | 6 to 110V | 6 to 110V | 6 to 110V | |
| Coil nominal power | AC | 0.9VA to 1.2VA | ≤2.5VA | 0.9VA to 1.2VA |
| DC | ≤0.9W | ≤1.6W | ≤0.9W | |
| Electrical life(OPS) | 105 | 105 | 105 | |
| Mechanical life(OPS) | 107 | 107 | 107 | |
| Operating temperature(oC) | -40~+70 | -40~+70 | -40~+70 | |
| Weight(g) | ≤35 | ≤70 | ≤35 | |
| Mounting methods | Printed-circuit board, Flange, Outlet | Printed-circuit board, Flange, Outlet | Printed-circuit board, Flange, Outlet | |

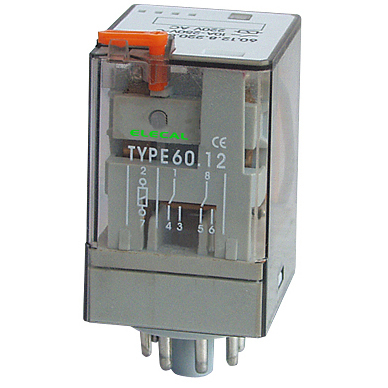

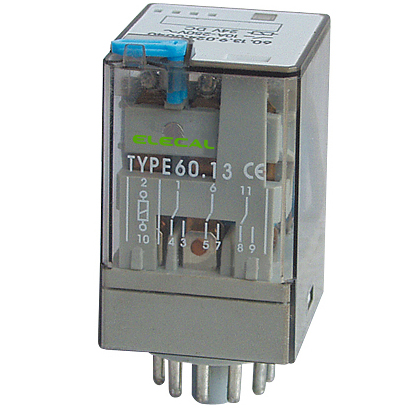

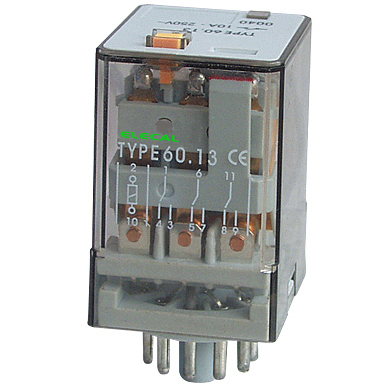

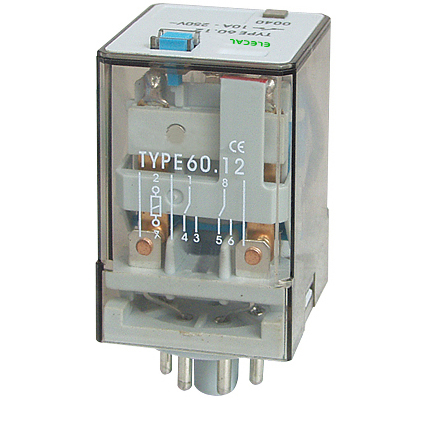

| Specifications Model | 60.12 | 60.13 | 60.12-I | |
|---|---|---|---|---|
| Terminal layout | 2Z | 3Z | 2Z | |
| Contact capacity | AC | 10A 220V | 10A 220V | 10A 250V |
| DC | 10A 28V | 10A 28V | 10A 30V | |
| Contact resistance(m) | ≤50m | ≤50m | ≤50m | |
| Insulation resistance(M) | ≥500M | ≥500M | ≥500M | |
| Dielectric strength | BOC | 2000VAC | 2000VAC | 1500VAC |
| BCC | 2000VAC | 2000VAC | 1500VAC | |
| Coil nominal voltage | AC | 6 to 240V | 6 to 240V | 6 to 380V |
| DC | 6 to 125V | 6 to 125V | 6 to 220V | |
| Coil nominal power | AC | ≤3.5VA | ≤3.5VA | 2.0VA to 2.8VA |
| DC | ≤2W | ≤2W | ≤1.5W | |
| Electrical life(OPS) | 205 | 205 | 105 | |
| Mechanical life(OPS) | 207/507 | 207/507 | 107 | |
| Operating temperature(oC) | -40~+70 | -40~+70 | -40~+60 | |
| Weight(g) | ≤125 | ≤125 | ≤80 | |
| Mounting methods | Outlet | Outlet | Outlet | |
| Specifications Model | 60.13-I | 70.2 | 70.3 | |
|---|---|---|---|---|
| Terminal layout | 3Z | 2Z | 3Z | |
| Contact capacity | AC | 10A 250V | 10A 250V | 10A 250V |
| DC | 10A 30V | 10A 30V | 10A 30V | |
| Contact resistance(m) | ≤50m | ≤50m | ≤50m | |
| Insulation resistance(M) | ≥500M | ≥500M | ≥500M | |
| Dielectric strength | BOC | 1500VAC | 1500VAC | 1500VAC |
| BCC | 1500VAC | 1500VAC | 1500VAC | |
| Coil nominal voltage | AC | 6 to 380V | 6 to 380V | 6 to 380V |
| DC | 6 to 220V | 6 to 220V | 6 to 220V | |
| Coil nominal power | AC | 2.0VA to 2.8VA | 2.0VA to 2.8VA | 2.0VA to 2.8VA |
| DC | ≤1.5W | ≤1.5W | ≤0.5W | |
| Electrical life(OPS) | 105 | 105 | 105 | |
| Mechanical life(OPS) | 107 | 107 | 107 | |
| Operating temperature(oC) | -40~+60 | -40~+60 | -40~+60 | |
| Weight(g) | ≤80 | ≤85 | ≤85 | |
| Mounting methods | Outlet | Outlet | Outlet | |

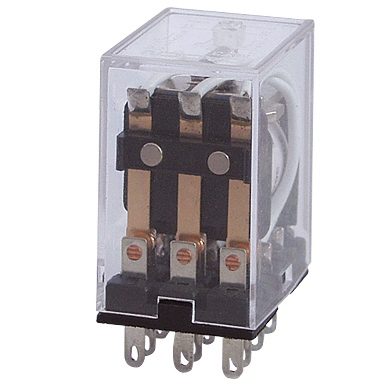

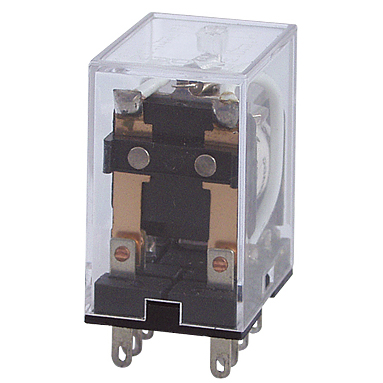

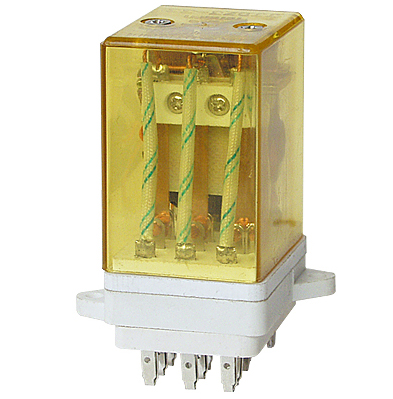

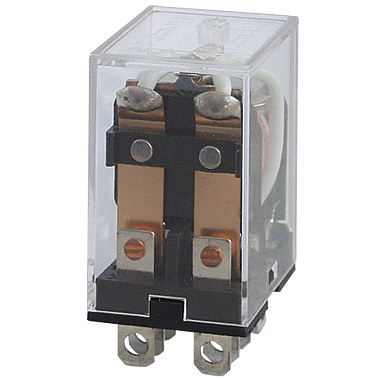

| Specifications Model | JJDZ3-33 | MY2 | MY3 | |
|---|---|---|---|---|
| Terminal layout | 3Z | 2Z | 3Z | |
| Contact capacity | AC | 3A/28VDC 3A/220VAC | 5A 250V | 5A 250V |
| DC | 5A 30V | 5A 30V | ||
| Contact resistance(m) | ≤50m | ≤50m | ≤50m | |
| Insulation resistance(M) | ≥500M | ≥100M | ≥100M | |
| Dielectric strength | BOC | 1000VAC | 1000VAC | 1000VAC |
| BCC | 5000VAC | 1500VAC | 1500VAC | |
| Coil nominal voltage | AC | 6 to 220V | 6 to 240V | 6 to 240V |
| DC | 6 to 220V | 6 to 220V | ||
| Coil nominal power | AC | ≤3W | 0.9VA to 1.2VA | 0.9VA to 1.2VA |
| DC | ≤0.9W | ≤0.9W | ||
| Electrical life(OPS) | 105 | 105 | 105 | |
| Mechanical life(OPS) | 107 | 107 | 107 | |
| Operating temperature(oC) | -30~+40 | -40~+60 | -40~+60 | |
| Weight(g) | 85 | ≤35 | ≤35 | |
| Mounting methods | Outlet | Printed-circuit board, Outlet | Printed-circuit board, Outlet | |

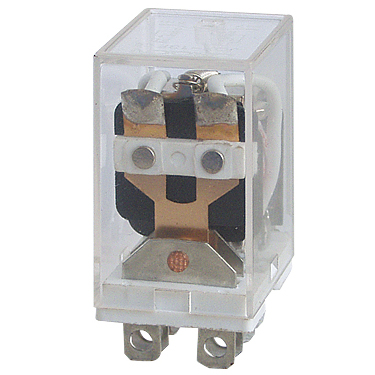

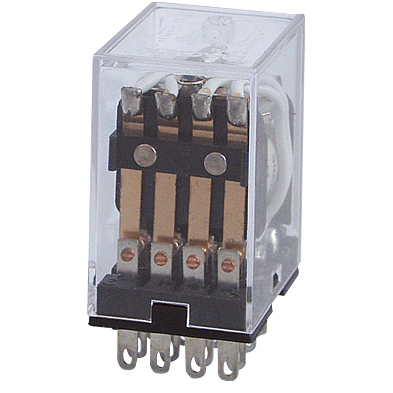

| Specifications Model | MY4 | LY1 | LY2 | |
|---|---|---|---|---|
| Terminal layout | 4Z | 1Z | 2Z | |
| Contact capacity | AC | 3A 250V | 15A 250V | 10A 250V |
| DC | 3A 30V | 15A 30V | 10A 30V | |
| Contact resistance(m) | ≤50m | ≤50m | ≤50m | |
| Insulation resistance(M) | ≥100M | ≥100M | ≥100M | |
| Dielectric strength | BOC | 1000VAC | 1000VAC | 1000VAC |
| BCC | 1500VAC | 1500VAC | 1500VAC | |
| Coil nominal voltage | AC | 6 to 240V | 6 to 240V | 6 to 240V |
| DC | 6 to 220V | 6 to 220V | 6 to 220V | |
| Coil nominal power | AC | 0.9VA to 1.2VA | 0.9VA to 1.2VA | 0.9VA to 1.2VA |
| DC | ≤0.9W | ≤0.9W | ≤0.9W | |
| Electrical life(OPS) | 105 | 105 | 105 | |
| Mechanical life(OPS) | 107 | 107 | 107 | |
| Operating temperature(oC) | -40~+60 | -40~+60 | -40~+60 | |
| Weight(g) | ≤35 | ≤35 | ≤35 | |
| Mounting methods | Printed-circuit board, Outlet | Printed-circuit board, Flange, Outlet | Printed-circuit board, Flange, Outlet | |

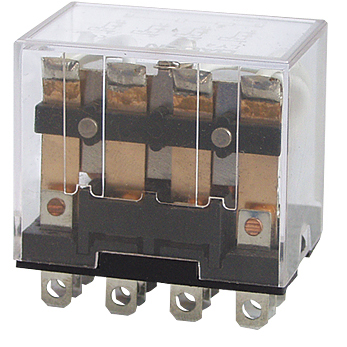

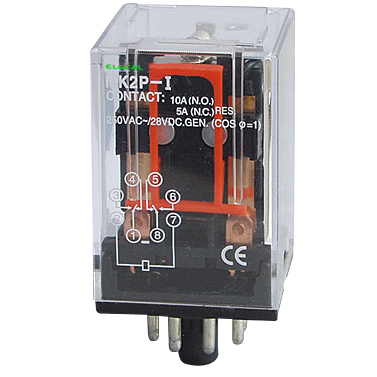

| Specifications Model | LY3 | LY4 | MK2P-I | |
|---|---|---|---|---|
| Terminal layout | 4Z | 2Z | 3Z | |
| Contact capacity | AC | 10A 250V | 10A 250V | 10A 250V |
| DC | 10A 28V | 10A 30V | 10A 30V | |
| Contact resistance(m) | ≤50m | ≤50m | ≤50m | |
| Insulation resistance(M) | ≥100M | ≥500M | ≥500M | |
| Dielectric strength | BOC | 1000VAC | 1500VAC | 1500VAC |
| BCC | 1500VAC | 1500VAC | 1500VAC | |
| Coil nominal voltage | AC | 6 to 240V | 6 to 380V | 6 to 380V |
| DC | 6 to 110V | 6 to 220V | 6 to 220V | |
| Coil nominal power | AC | ≤2.5VA | ≤2.8VA | ≤2.8VA |
| DC | ≤1.6W | ≤1.6W | ≤1.6W | |
| Electrical life(OPS) | 105 | 105 | 105 | |
| Mechanical life(OPS) | 107 | 107 | 107 | |
| Operating temperature(oC) | -40~+70 | -40~+60 | -40~+60 | |
| Weight(g) | ≤70 | ≤80 | ≤80 | |
| Mounting methods | Printed-circuit board, Flange, Outlet | Outlet | Outlet | |

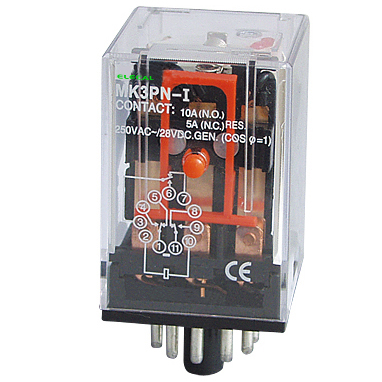

| Specifications Model | MK3P-I | MK2PN-I | MK3PN-I | |
|---|---|---|---|---|
| Terminal layout | 3Z | 2Z | 3Z | |
| Contact capacity | AC | 10A 250V | 10A 250V | 10A 250V |
| DC | 10A 30V | 10A 30V | 10A 30V | |
| Contact resistance(m) | ≤50m | ≤50m | ≤50m | |
| Insulation resistance(M) | ≥500M | ≥500M | ≥500M | |
| Dielectric strength | BOC | 1500VAC | 1500VAC | 1500VAC |
| BCC | 1500VAC | 1500VAC | 1500VAC | |
| Coil nominal voltage | AC | 6 to 380V | 6 to 380V | 6 to 380V |
| DC | 6 to 220V | 6 to 220V | 6 to 220V | |
| Coil nominal power | AC | ≤2.8VA | ≤2.8VA | ≤2.8VA |
| DC | ≤1.6W | ≤1.6W | ≤1.6W | |
| Electrical life(OPS) | 105 | 105 | 105 | |
| Mechanical life(OPS) | 107 | 107 | 107 | |
| Operating temperature(oC) | -40~+60 | -40~+60 | -40~+60 | |
| Weight(g) | ≤80 | ≤80 | ≤80 | |
| Mounting methods | Outlet | Outlet | Outlet | |
