Digital Timer
 |
 |
Add to Inquiry Basket
View Inquiry Basket
The products that you selected had been put into inquiry basket !| Classification | Digital Timer | Digital Timer | Timer | |||
|---|---|---|---|---|---|---|

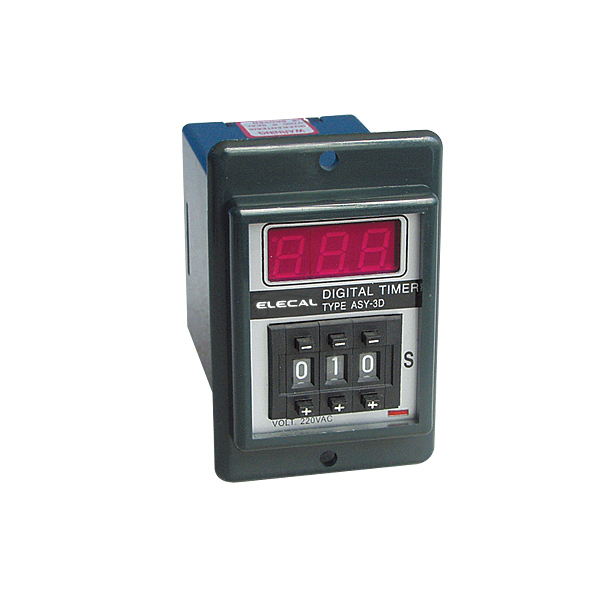

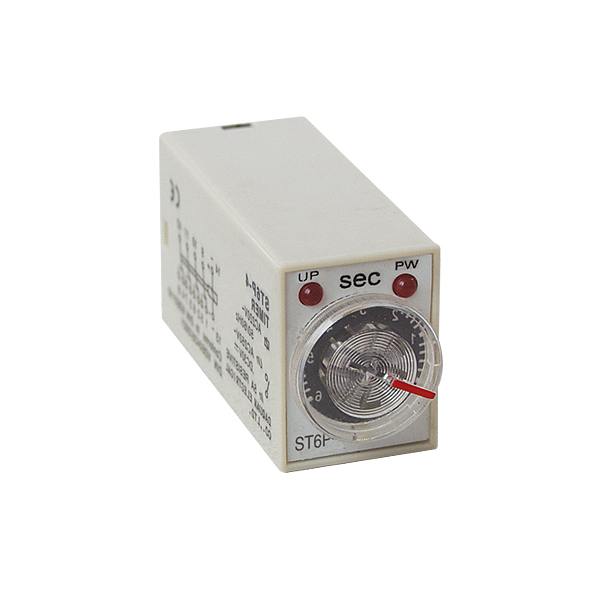

| Specification Model | ASY-2D | ASY-3D | H3Y-(ST6P) | |||
| Dimension | 88H × 58W × 68D | 88H × 58W × 68D | 28H × 21W × 52.6D | |||
| Mounting & Socket | Surface(-N) | PF083A | PF083A | PYF08A(E) | PYF14A(E) | |
| Flush(-Y) | US-08 P3G-08 | US-08 P3G-08 | With Y-20 adapter | |||
| Full Timing Range | SEC: 9.9,99 MIN: 9.9,99 HR: 9.9,99 |
SEC: 9.99,99.9,999 MIN: 99.9,999 HR: 99.9,999 |
SEC: 1,3,5,10,30,60,120 MIN: 3,5,10,30,60 HR: 3 | |||
| Rated Voltage (V) | AC: 12,24,110,220,240 50/60Hz DC: 12,24 |
AC: 12,24,110,220,240 50/60Hz DC: 12,24 |
AC: 12,24,110,220,240 50/60Hz DC: 12,24 | |||
| Indicator Operating | After contact transfer | After contact transfer | Power, up Operating | |||
| O/P Contact | Model | ASY-2D | ASY-3D | |||
| Time Limit 1C | ||||||
| Time Limit 2C | 5A | 5A | ||||
| Instantaneous 1C | ||||||
| Life | Mechanical | 5 × 106 Times | 5 × 106 Times | 5 × 106 Times | ||
| Electrical | 105 Times | 105 Times | 105 Times | |||
| Accuracy | Repeat Error | ±0.05% max | ±0.05% max | ±3% max | ||
| Setting Error | 0 | 0 | - | |||
| Voltage Error | ±0.05 Sec | ±0.05 Sec | ±2% max | |||
| Temp Error | ±0.05 Sec | ±0.05 Sec | ±5% max | |||
| Reset Time | 0.3 sec max | 0.3 sec max | 0.2 sec max | |||
| Consumed Power | 5VA | 5VA | 3VA | |||
| Ambient temperature | -10oC~+55oC | -10oC~+55oC | -10oC~+55oC | |||
| Ambient Huminity | 48~85% RH | 48~85% RH | 48~85% RH | |||
| Weight | 230g | 230g | 45g | |||
