Application :

---

High rellability by S.M.T & TQC.(Surface Mounting Technology) High Isolation over than 50MQ/500VDC High dielectric over than 2.5KV Low enable current less than 7.5mA/12VDC CMOSIC or TTL Compatible. Low EMI/EFI& surge by Zeero cross Trigger Method. High surge current duration,over 10 Times of rated current/one cycle. High surge voltage duration by snubber circuit.

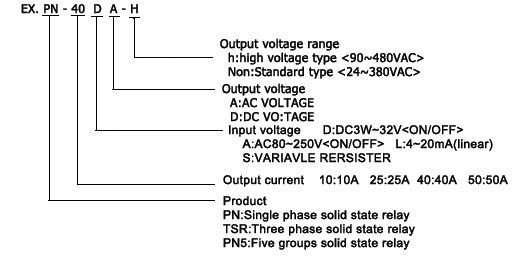

Guiding of Model :

---

Control Method :

---

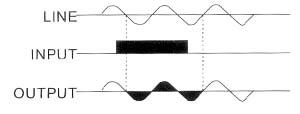

Zero Cross Trigger Method
Output TURN ON or TURN OFF only on zero cross point of sine wave,may avoid surge or EMI/RFI occurring.
Specially suited to control resistive,capacitive and Non-saturated inductive loads

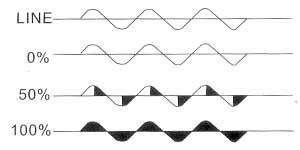

Variable resistance control method
Power output is controlled by the trigger angle of triac with variable resister 250KQ/110VAC,500KQ/220VAC

Application Hints : 　　　　　　

Input	NPN	Output	NO	Input	NPN	Output	NO	Input	NPN	Output	NO
Input	NPN	Output	NO	Input	NPN	Output	NO	Input	NPN	Output	NO

---
