SSR 120A-350A Solid State Relay

Bookmark This Page

Print This Page

Contact Online

Asia :

　　　　　　　　　　　　Europe & Africa :

Middle East Area :

　　　　Oceania & America :

E-Mail : sales@elecal.com

Catalogue Download (PDF Files)

Add to Inquiry Basket　　

View Inquiry Basket

Application :

Current:5-400A

Voltage:24-440V

All models feature the same compact dimensions.

Built-in MOV effectively absorbs extermal surges.

Operation indicator(red LEDa)enables monitoring operation .

Protective cover for greater safety .

DC and AC,ACand AC,DC and DC,AC and DC input versions available.

Typical Applications :

Universal switch and termal control

Industrial automatic control

Numerial-controlled machinery,remote-control system.

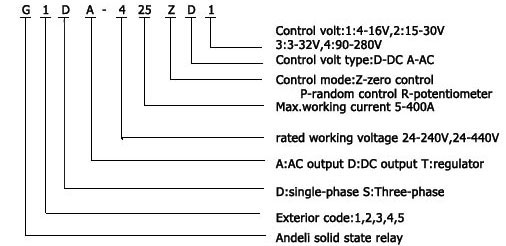

Guiding of Model :

Teachnical data:

Input		OutputCD			Cooling condition	Safety Coefficient of operatin currentG
V_in	I_in	V_rms	I_rms	V_{iso i/o/c}		Resistive loading	inductive loading
DC4-16V_(DC)	120mA_(DC) 20-50mA_(AC)	24-440V_(AC)	5-400A	2500V_(AC)	with radiator natural wind cooling or water cooling	60%	40%
DC15-30V_(DC)
DC3-32V_(DC)
DC90-280V_(AC)

Dimension:
