FEATURES :

---

High current carrying capacity up to 20 amps Transient protected No leakage in N.O. position No heat sinking required . Available in any time delay period required . Digital CMOS timing . No minimum load required . Totally encapsulated for protection from harsh environments . 100% Operational testing before shipping .

TIMING MODE :

---

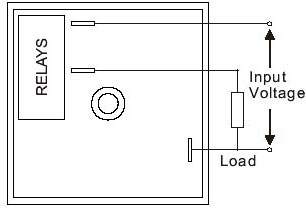

　　Often called Interval, Interval Dealy, Delay on Energization with Instantaneous Transfer. When power is applied to the input voltage terminals, the load is energized immediately and the time delay cycle starts. At the end of the delay period, the timer transfers back to its pre-power position. Removal and re application of input voltage resets the timer .

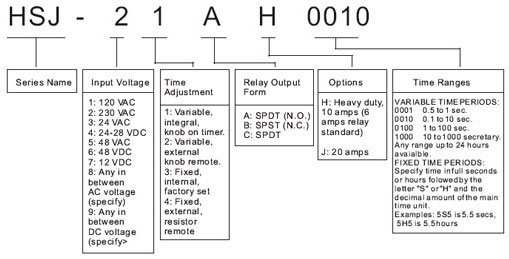

SELECTING CODE :

---

Teahnical Data :

---
