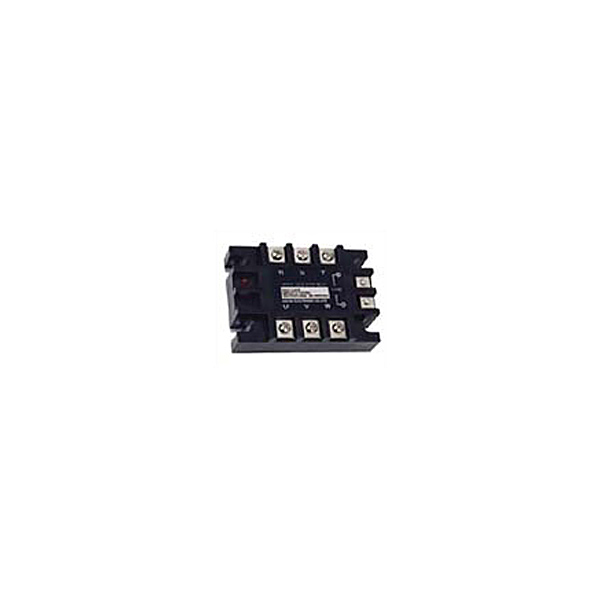

HGC Series Three Phase Solid State Relay

Bookmark This Page

Print This Page

Contact Online

Asia :

　　　　　　　　　　　　Europe & Africa :

Middle East Area :

　　　　Oceania & America :

E-Mail : sales@elecal.com

Catalogue Download (PDF Files)

Add to Inquiry Basket　　

View Inquiry Basket

FEATURES :

TRIAC output, zero current turn-off

INput and output 4000V optically isolated

LED indicator

Internal varistor (MOV) and RC snubber dua l surge absorb protec t

Performance than price high, high reliability

100% tested at rated current ,CE compliant..

Application :

　　HGC series three phase solid state relays, adapting ignition-proof engineering plastic cover, filled with EPOXY, screw thread connection, have the features of hard structure,vibration-proof capability high, input driving current small convenient to interface with terminals of computer and various digital tele-control circuit. This series are widely used in the fields of petrochemical equipment, foodstuff-producing machines, packaging machines, textile and plastic mechanisms, tool numerical control, gymnasium equip. Specialities be the same with canker, aquosity request prevent explode scurvines circumstance, and often switch of occasion.

FEATURES :

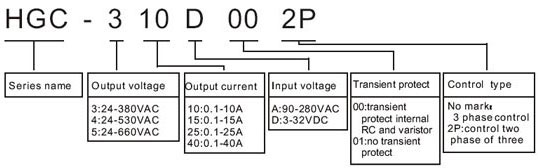

SELECTING CODE :

Iutput parameters (Ta:25℃) :


Input type	D:DC Control	A:AC Control
Control voltage range	3-32 VDC	90-280 Vrms (50-60Hz)
Turn-on voltage(Max.)	3.0 VDC	90 Vrms
Turn-off voltage(Min.)	1.0 VDC	10 Vrms
Nominal input impedance	1500 Ohms	60k Ohms
Typical input current	10mA@5 VDC 22mA@ 24 VDC	5mA@220 VAC 2.2mA@110 VAC
Max.Reverse voltage	-32 VDC	_

Output parameters (Ta:25℃) :

Output current type		10	15	25	40
Operating voltage range		2:28 280VAC 3:48 480VAC
Max. Load current		10A	15A	25A	40A
Max. Surge current-Non repetitive (10ms)		120Apk	160Apk	250Apk	300Apk
Max. I t for fusing(10ms)		72 A²s	128 A²s	312 5 A²s	450 A²s
Thermal resistance junction to case(Rjc)		2.5℃ /W	2.3 ℃/W	1.1℃ /W	0.9 ℃/W
Min. Off-state dv/dt		250V/usec	500V/usec	250V/usec	250V/usec
Max. Over-zero voltage		±35VAC
Min. Load current		100mA
Max. On-state voltage drop		1.5VAC@rated current
Max. Off-state leakage current		5mA,1mA /no RC @rated voltage
Transient over voltage		2:800Vpk 3:1000Vpk
Operating frequency range		47 63Hz
Dielectric strength 50Hz 1Min( )		4000VAC input-output 2500VAC input/output-base
Insulation resistance		1000M 500VDC Voltage Test
Vibration resistance Destructive Functional		117.6mm/s2(12G),10-55 Hz double Amplitude of 2 mm 117.6mm/s2(12G),10-55 Hz double Amplitude of 2 mm
Destructive FunctionalShock resistance		Min.980m/s2(100G)(5 times each for X,Y,Z axis) Min.980m/s2(100G)(4 times each for X,Y,Z axis)
Max. Capacitance		8pF input-output
Max. Turn-on time	Zero voltage turn-on	(1/2 cycle of load power)+1msec(DC input) (3/2 cycle of load power)+1msec(AC input)
Max. Turn-on time	Random turn-on	1msec
Max. Turn-off time		(1/2 cycle of load power)+1msec(DC input) (3/2 cycle of load power)+1msec(AC input)
Ambient operating temperature		-30℃ to 80 ℃
Ambient storage temperature		-30℃ to 120 ℃
Ambient humidity relative		45% to 85%
Weight typical		≤85g

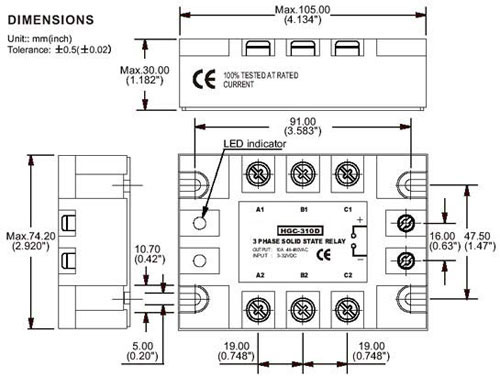

Diminsions :

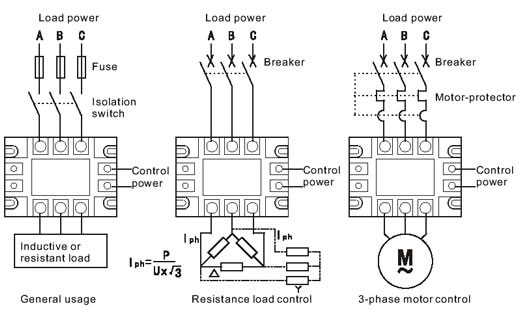

CONNECTION/WIRING :

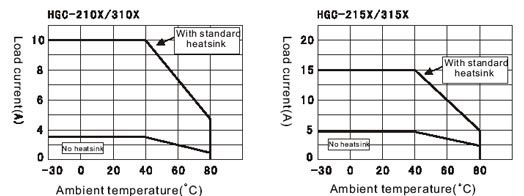

CURRENT DERATING CURVES :
