HGK Series AC Solid State Relay

Bookmark This Page

Print This Page

Contact Online

Asia :

　　　　　　　　　　　　Europe & Africa :

Middle East Area :

　　　　Oceania & America :

E-Mail : sales@elecal.com

Catalogue Download (PDF Files)

Add to Inquiry Basket　　

View Inquiry Basket

FEATURES :

TRIAC output, Zero current turn-off

INput and output 4000V optically isolated

LED indicator

INternal RC snubber.

Internal varistor (MOV) and RC snubber dual surge absorb protect .

Zero voltage and random turn-on switching

100% tested at rated current , CE compliant

With safety cover, panel mount .

Application :

　　 HGK Series AC Solid State Relays,adapting ignition-proof engineering plastic cover,unique sculpt, origina l architecture, screw thread connection, have the features of hard structure, vibration-proof capability high , input current small convenient to interface with terminals of computer and various digital tele-control circuit . This series are widely used in the fields of petrochemical equipment, foodstuff producing mechanism , packaging machines, textile and plastic mechanisms, tool numerical control, gymnasium equip . Speciality be the same with canker, aquosity request prevent explode scurvines circumstance, and ofte n switch of occasion .

PRECAUTIONS :

Heatsink should be used when the current is up to 5 Amperes, and heat-conductive silicate should be spreaded between the heatsink and the base.

When controlling inductive load, the SSR may be damaged by the high transient voltage and surge current added on the output, so some special clamping devices to control voltage, such as zener diode, varistor(MOV).

When controlling a small current(close to Min. Load current), a dummy load resistance should b e parallelled to reduce the rest higher voltage produced by the leakage current on the outpu t

To avoid the temperature exceeding the allowance, heatsink efficiency and the mounting positio n should be regarded, suitable space will be left when two or more SSR are mounted .

The output end must not be used in parallel to enlarge the current, however can be used in series for higher suitable operating voltage.

The input end can be used either mean when sharing a control power supply.

Please contact HALON application engineering department for additional information and specific
application questions.

SELECTING CODE :

Iutput parameters (TA:25℃) :


Input type	D:DC Control	A:AC Control
Control voltage range	3-32 VDC	90-280 Vrms (50-60Hz)
Turn-on voltage(Max.)	3.0 VDC	90 Vrms
Turn-off voltage(Min.)	1.0 VDC	10 Vrms
Nominal input impedance	1500 Ohms	60 Ohms
Typical input current	10mA@5 VDC 22mA@ 24 VDC	5mA@220 VAC 2.2mA@110 VAC
Max.Reverse voltage	-32 VDC	_

Teahnical Data :

Output current type		10	15	25	40
Operating voltage range		2:28 280VAC 3:48 480VAC
Max. Load current		10A	15A	25A	40A
Max. Surge current-Non repetitive (10ms)		120Apk	160Apk	250Apk	300Apk
2Max. I t for fusing(10ms)		272A s	128 2As	312 5 sA2	450 2As
Thermal resistance junction to case(Rjc)		2.5 ℃/W	2.3℃ /W	1.1 ℃/W	0.9℃ /W
Min. Off-state dv/dt		250V/usec	500V/usec	250V/usec	250V/usec
Max. Over-zero voltage		35VAC
Min. Load current		100mA
Max. On-state voltage drop		1.5VAC@rated current
Max. Off-state leakage current		5mA,1mA /no RC @rated voltage
Transient over voltage		2:800Vpk 3:1000Vpk
Operating frequency range		47 63Hz
Dielectric strength 50Hz 1Min( )		4000VAC input-output 2500VAC input/output-base
Insulation resistance		1000MQ 500VDC Voltage Test
Vibration resistance Destructive Functional		117.6mm/s2(12G),10-55 Hz double Amplitude of 2 mm 117.6mm/s2(12G),10-55 Hz double Amplitude of 2 mm
Destructive FunctionalShock resistance		Min.980m/s2(100G)(5 times each for X,Y,Z axis) Min.980m/s2(100G)(4 times each for X,Y,Z axis)
Max. Capacitance		8pF (input-output )
Max. Turn-on time	Zero voltage turn-on	(1/2 cycle of load power)+1msec(DC input) (3/2 cycle of load power)+1msec(AC input)
Max. Turn-on time	Random turn-on	1msec
Max. Turn-off time		(1/2 cycle of load power)+1msec(DC input) (3/2 cycle of load power)+1msec(AC input)
Ambient operating temperature		-30℃ to 80℃
Ambient storage temperature		-30℃ to 120 ℃
Ambient humidity relative		45% to 85%
Weight typical		≤85g

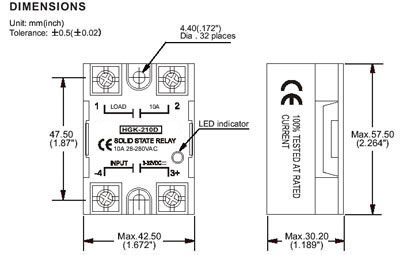

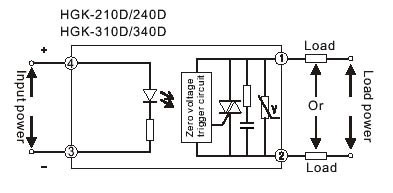

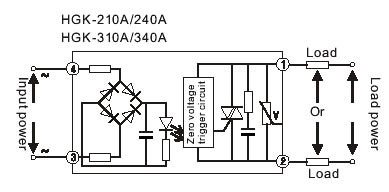

CONNECTION/WIRING :

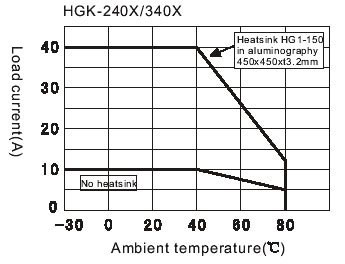

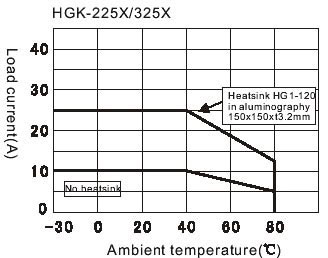

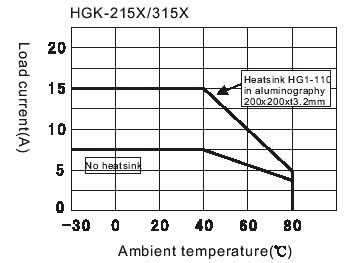

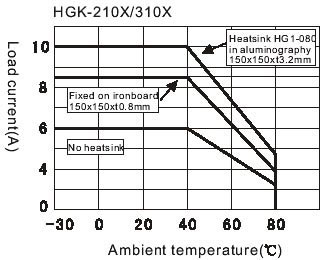

CURRENT DERATING CURVES :
