1.Application

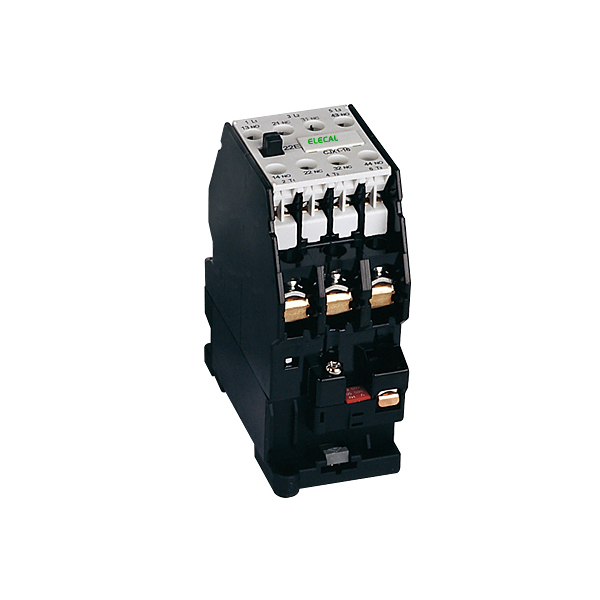

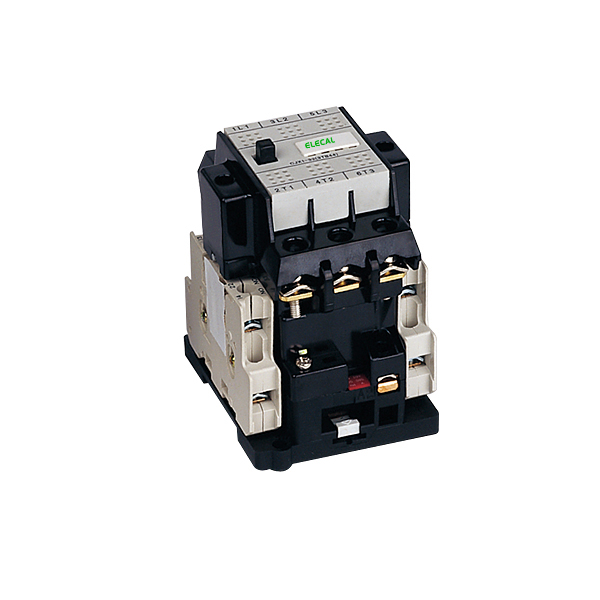

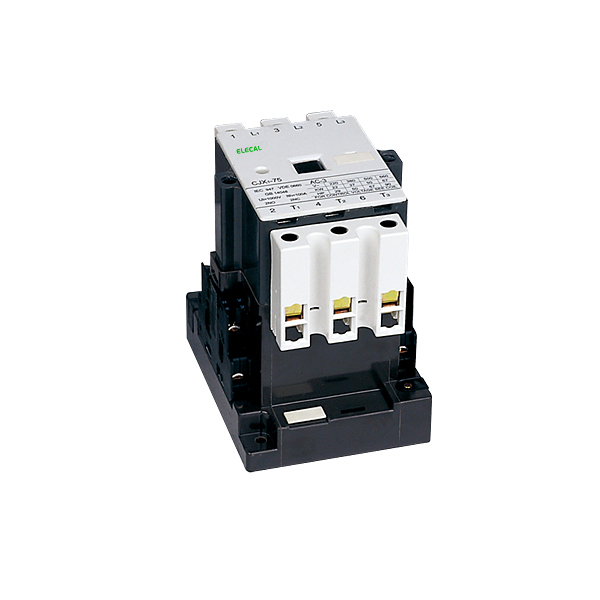

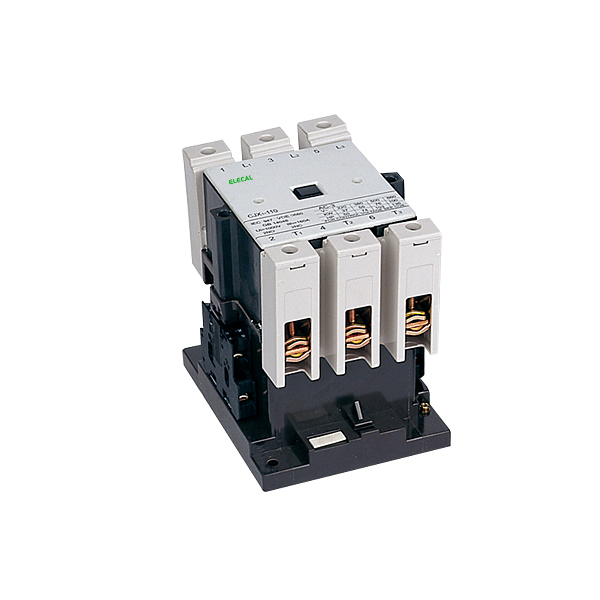

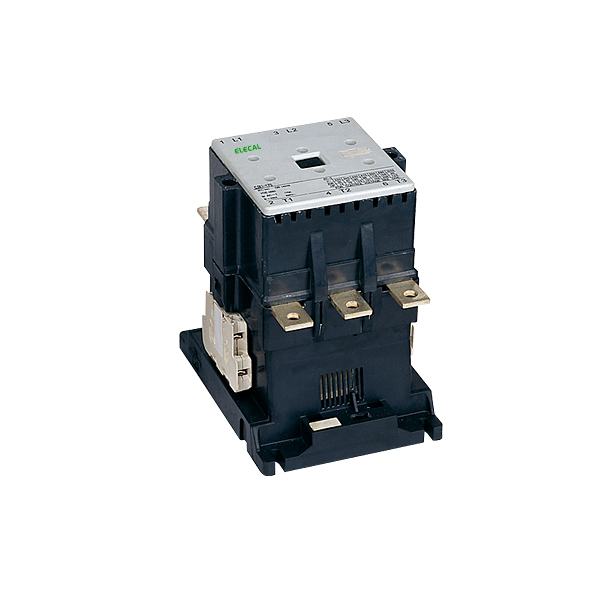

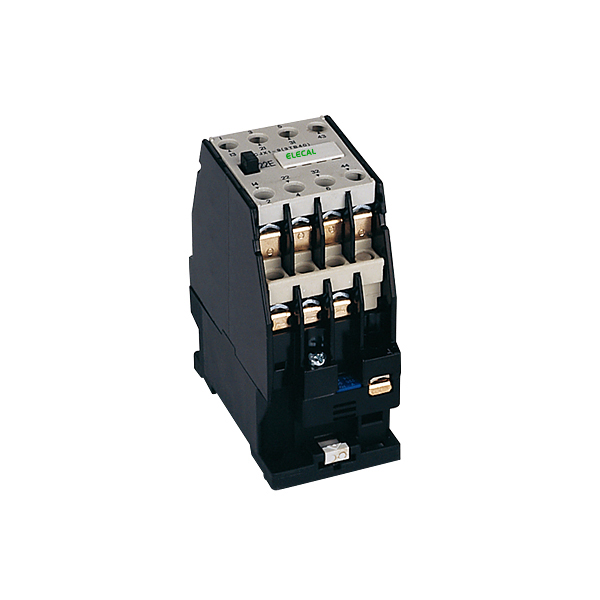

CJX1 series AC contactors are suitable for frequency 50/60Hz,rated insulation voltage up to1000V,rated operation current 9~475A under AC-3 duty.It is mainly used for making/breakingelectric circuit at a long distance & for frequent starting/stopping & with thermal relay to com-pose a magnetic motor starter.The product conforms to IEC60947-4-1 stardand.

2. Specification

Type		CJX1-9 CJX1-12	CJX1-16 CJX1-22	CJX1-32	CJX1-45 CJX1-63	CJX1-75 CJX1-85	CJX1-110 CJX1-140	CJX1-170 CJX1-205	CJX1-250 CJX1-300	CJX1-400 CJX1-475
Mechanicalendurance(×106)		10	10	10	8	8	8	8	8	8
Conventionalthermal current(A)		20	30	45	80	100	160	210	300	400/550
Rated insulationvoltage(V)		660	660	660	1000	1000	1000	1000	1000	1000
Rated(380V)operatingcurrent(A)	AC-3	9/12	16/22	32	45/63	75/85	110/140	170/205	250/300	400/475
	AC-4	3.3/4.3	7.7/8.5	15.6	24/28	34/42	54/68	75/96	110/125	150
Power ofcontrollablemotor(KW)AC-3	380V	4/5.5	7.5/11	15	22/30	37/45	55/75	90/110	132/160	200/250
	660V	5.5/7.5	11	23	39/55	67	100	156	235	375
Power ofcontrollablemotor(KW)AC-4	380V	1.4/1.9	3.5/4	7.5	12/14	17/21	27/35	38/50	58/66	81
	660V	2.4/3.3	6/6.6	13	20.8/24	29.5/36	46.9/60	66/86	100/114	140
Frequencyof operation(l/h)	AC3	1000	750	750	1200/1000	1000/850	1000/750	700/500	700/500	500/420
	AC4	250	250	250	400/300	300/250	300/200	200/130	200/130	150
Electricalendurance(×106)	AC3	1.2	1.2	1.2	1.2	1.2	1.2	1.2	1.2	1.2
	AC4	0.2	0.2	0.2	0.2	0.2	0.2	0.2	0.2	0.2
Operating voltagerange of coil		(0.8~1.1)Ue
Powerconsump-tion of coil	Atracting(VA)	10	10	12.1	17	32	39	58	84	115
	Starting(VA)	68	69	101	183	330	550	910	1430	2450
Rated insulationvoltage of auxitiarycontacts(V)		690	690	690	690	690	690	690	690	690
Conventionalthermal current ofauxitiary contacts(A)		10	10	10	10	10	10	10	10	10
Ratedoperatingcurrent ofauxitiarycontacts(A)	AC15380/220	6/10	6/10	4/6	4/6	4/6	4/6	4/6	4/6	4/6
	DC13220V	0.45	0.45	0.48	0.48	0.48	0.48	0.48	0.48	0.48
Ratedvoltage ofthe controlcoil(V)	50Hz	24,36,48,110,127,220,380,etc
	60Hz	24,110,220,440,etc.

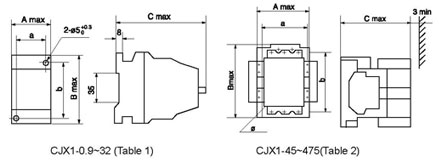

3. Outline and Mounting Dimension

---

Type	A max	B max	C max	a	b
CJX1-9,12	45	78.5	104(90)	35+0.31	60+0.37
CJX1-16,22	46	85	114	35+0.31	75+0.37
CJX1-32	74	85	108	50+0.31	75+0.37

Type	A max	B max	C max	a	b	φ
CJX1-45,63	91(114)	120	124	70+0.6	100+0.2	4.8
CJX1-75,85	102(125)	135	142	80+0.6	100+0.2	5.5
CJX1-110,140	122(145)	156	154	100+0.2	130+0.8	6.5
CJX1-170,205	140(163)	185	190	100+0.2	160+0.8	7
CJX1-250,300	150(173)	205	200	120+0.2	180+0.8	9
CJX1-400,475	165(188)	205	225	130+0.8	180+0.8	9
