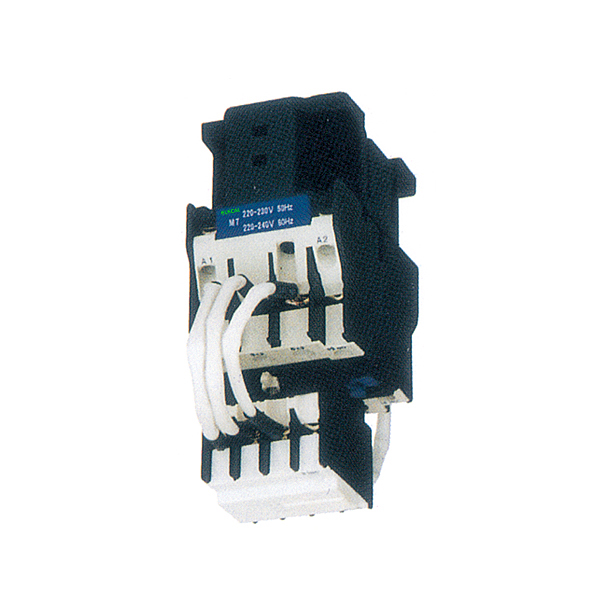

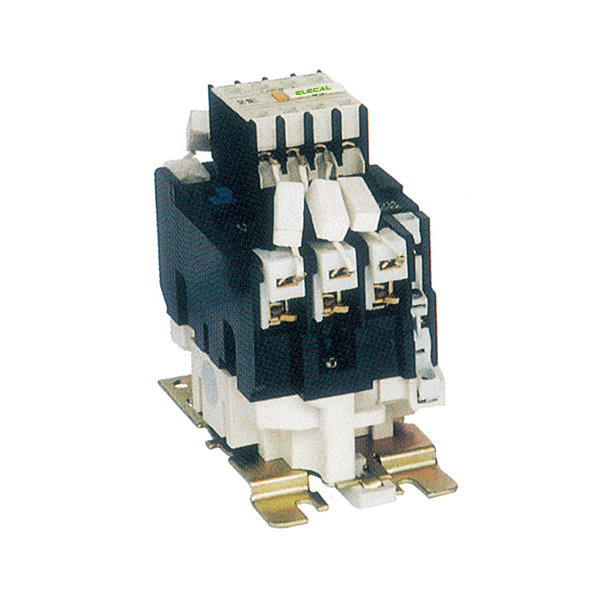

CJ19 Changeover Capacitor Contactor

Bookmark This Page

Print This Page

Contact Online

Asia :

　　　　　　　　　　　　Europe & Africa :

Middle East Area :

　　　　Oceania & America :

E-Mail : sales@elecal.com

Catalogue Download (PDF Files)

Add to Inquiry Basket　　

View Inquiry Basket

1.Application

CJ19 series changeover capacitor contactor is mainly applicable to a power line of AC 50Hzor 60Hz, rated working voltage up to 380V. It is used to put a low voltage parallel connectedcapacitor in operation or switch it off in a low voltage reactive power compensation device. Thecontactor is equipped with a surge suppressor, which can effectively reduce the surge currentpassing through the capacitor at weitching on and suppress the over-voltage at switching off.The product is in conformity with the standards IEC947-4-1.

2.Specification

Model		CJ19-25	CJ19-32	CJ19-43	CJ19-63	CJ19-95
Electrical lfie(×10³)		100	100	100	100	100
Rated current le(380V)A		17	23	29	43	63
Power ofcontrolled capacitor	220/230V	6	9	10	15	22
Power ofcontrolled capacitor	380/400V	12	18	20	30	40
Rated insulation voltage Ui(V)		500
Rated operational voltage Ue(V)		380
Restrained surge capacity		20le
Operation range		Pick-up:(85%~110%)Us; Drop-out:(20%~75%)Us
Coil power(VA)	Start-up	70	110	110	200	200
Coil power(VA)	Holding	8	11	11	20	20
Control capacity of auxiliary contact		AC-15 360VA; DC-13 33W
Weight(Kg)		0.44	0.63	0.64	1.4	1.5

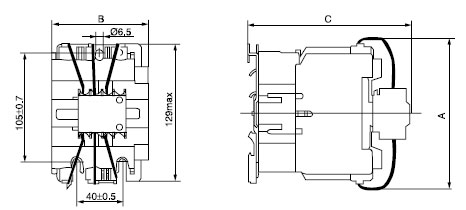

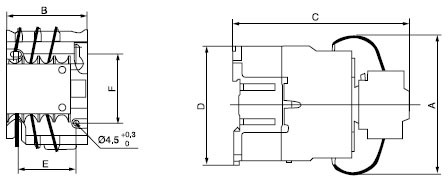

3. Outline and Mounting Dimension

Type	Amax	Bmax	Cmax	Dmax	E	F	Note
CJ19-25	80	47	124	76	34/35	50/60	Screw mount/35mm rail mount
CJ19-32	90	58	134	86	40	48
CJ19-43	90	58	136	86	40	48
CJ19-63	132	79	150
CJ19-95	135	87	158
