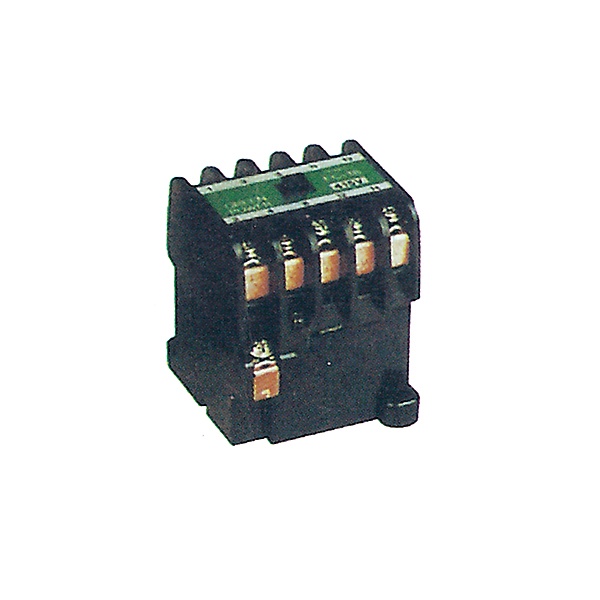

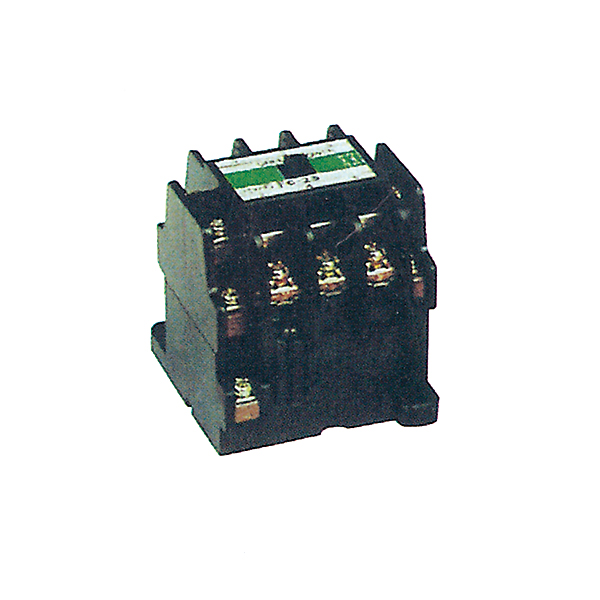

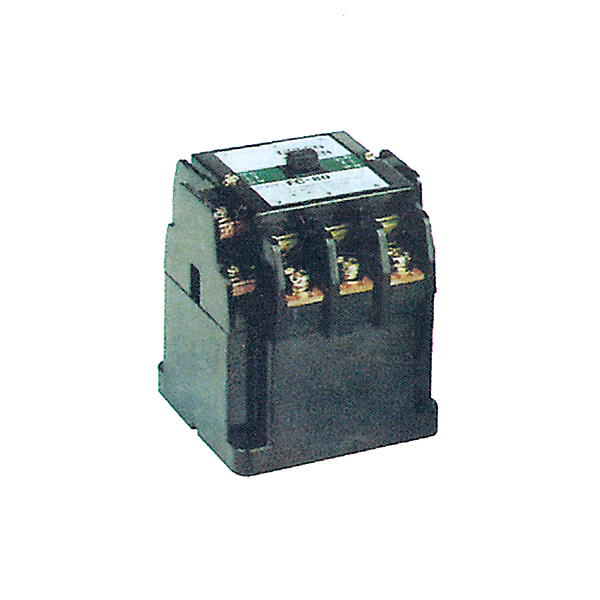

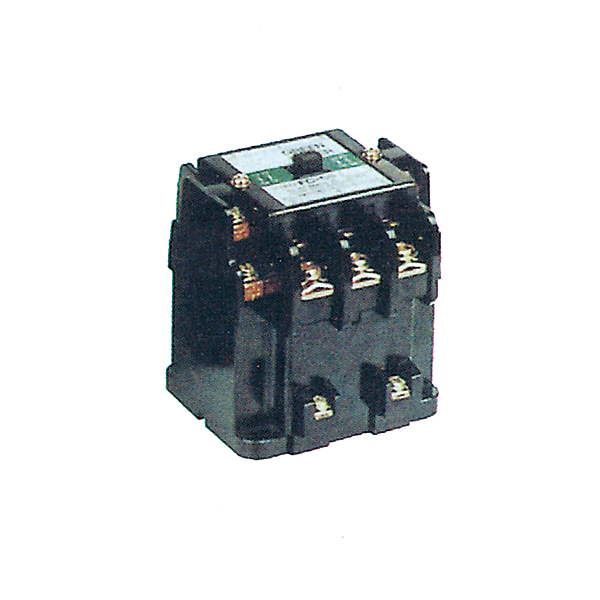

CJX3 AC Contactor
 |
 |
 |
 |
Add to Inquiry Basket
View Inquiry Basket
The products that you selected had been put into inquiry basket !1. Application
CJX3 series AC contactor is used to 50Hz or 60Hz, rated working voltage 660V, rated work-ing current 80A electric power system, to switch on and off circuit and AC motors in frequentcontrol, protecting overload circuit. It conforms to IEC60947-1 standard.
2. Specification
3. Outline and Mounting Dimension
CJX3 series AC contactor is used to 50Hz or 60Hz, rated working voltage 660V, rated work-ing current 80A electric power system, to switch on and off circuit and AC motors in frequentcontrol, protecting overload circuit. It conforms to IEC60947-1 standard.
2. Specification
| Type | Rated insulating voltage(V) | Rated heating current(A) | AC-3 controlled power(kW) | Operating rotation time//hour(AC-3) | Electrical life AC-3(104) |
Mechani-cal life(104) | Coil power starting/ workingVA/VA | ||
| 220V | 380V | 660V | |||||||
| CJX3-10 | 690 | 20 | 3.5 | 5.5 | 5.5 | 600 | 100 | 500 | 60/2.2 |
| CJX3-11 | 20 | 3.5 | 5.5 | 5.5 | |||||
| CJX3-12 | 26 | 3.7 | 5.5 | 5.5 | |||||
| CJX3-16 | 26 | 3.7 | 5.5 | 5.5 | 85/3 | ||||
| CJX3-18 | 30 | 5.5 | 7.5 | 7.5 | |||||
| CJX3-19 | 30 | 5.5 | 11 | 11 | 175/5 | ||||
| CJX3-25 | 45 | 7.5 | 15 | 15 | |||||
| CJX3-35 | 50 | 7.5 | 15 | 15 | 270/8 | ||||
| CJX3-50 | 65 | 11 | 22 | 22 | |||||
| CJX3-65 | 80 | 15 | 30 | 30 | |||||
| CJX3-80 | 110 | 19 | 37 | 37 | |||||

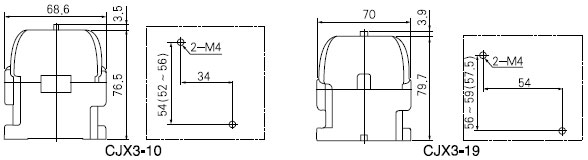

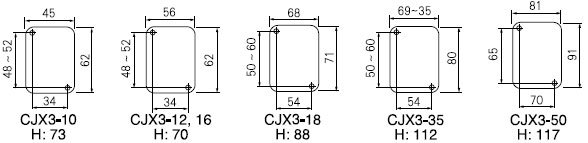

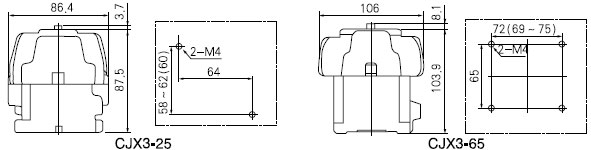

3. Outline and Mounting Dimension
 |
 |
 |
 |
