1.Application

This series contactor is mainly applicable to a line of AC 50Hz or 60Hz, rated working voltage up to 600V and rated working current up to 60A, used to close or and to switch off the line. It complies to IEC947-4-1.

2.Specification

P/N	AMPS	VOLTS
CJX9-2S-30-24V	30	24
CJX9-2S-30-120V	30	120
CJX9-2S-30-240V	30	240
CJX9-2M-40-24V	40	24
CJX9-2M-40-120V	40	120
CJX9-2M-40-240V	40	240
CJX9-3S-30-24V	30	24
CJX9-3S-30-120V	30	120
CJX9-3S-30-240V	30	240
CJX9-3M-40-24V	40	24
CJX9-3M-40-120V	40	120
CJX9-3M-40-240V	40	240
CJX9-2S-50-240V	50	24
CJX9-3G-50-120C	50	120
CJX9-3G-50-240V	50	240
CJX9-3F-60-24V	60	24
CJX9-3A-60-120V	60	120
CJX9-3A-60-240V	60	240

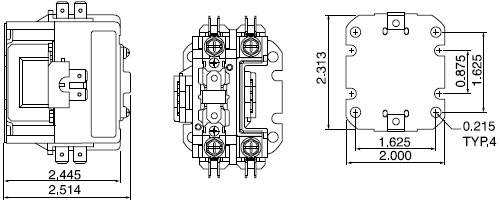

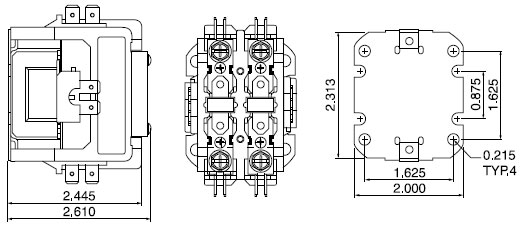

3. Outline and Mounting Dimension
