HZJ-50A/ D.C Contactors
 |
Add to Inquiry Basket
View Inquiry Basket
The products that you selected had been put into inquiry basket !| Classification | D.C contactors |
| Type | HZJ-50A/ |

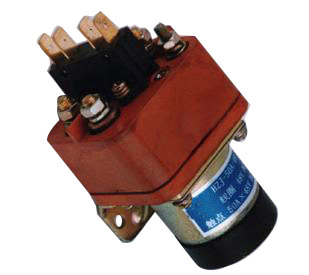

| Appearance |  |

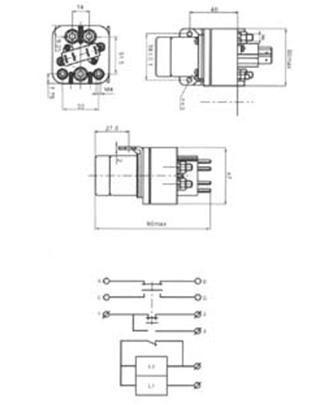

| Outline LXWXH(mm) | |
| Feature | |
| Contact Ratings | |
| Contact Form 1Z Contact circuit Voltage and loading current(resistant) 48VDC Max 50A Contact Resistance 30mΩMax. 20±5oC cold state max motion voltage(VDC) Pick-up 70% Drop-out 5%~30% Machanical life(Min.) 100,000 Ops Electrical life(Min.) 50,000 Ops | |
| Coil Ratings | |
| Coil rated voltage 12~48 VDC Max coil current under the rated voltage 0.15A With 20±5oC cold state starting coil max current 5A | |
| Specification | |
| Insulation Resistance 100MΩMin. Dielectric strength Between Contacts 2000VAC. Between coil and contacts 1500VAC. Environment temperature and attitude -60oC~+70oC; 0~20000m Max relative humidity 98% The shocking of fixed point Frequency(11Z) 10~200 Acceleration(g) ≤3.5 Shocking Speed(time/min.) 60~100 Acceleration(g) 4 Constant acceleration 8 Operation regulation(Continue) Installation direction(Random) | |
| Layout (Bottom view) |  |
