Straight-Through wiring ,Replaces 1 1/2 pole devices used primarily in residential central air conditioning

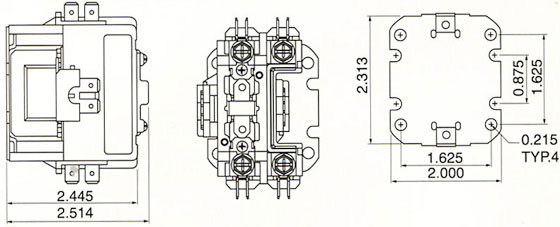

Features

1.Replaces many type 117 contactors used by OEM's
2.Universal style mounting bracket fits existing mounting holes
3.Screw terminals and 1/4 quick connect terminals for easy installation

Specifications

Temperature range	-40°F to 150°F
Mechanical life (no load)	Conforms to UL and ARI specifications
Electricl life	Conforms to UL and ARI specifications 94-388 thru 94-390 achieve 200,000 cycles, make LRA at . 5 pf, break 125% of FLA at . 75 pf at rated voltage ,10 , 000 cycles make and break LRA at . 5 pf rated voltage 94-394 thru 94-396 achieve 100,000 cycles, make LAR at. 5 pf at rated voltage 6,000 cycles make and break LRA at . 5 pf rated voltage
Weight (approximate)	9.25 oz
Coils Frequency	50/60Hz
Coil insulation	Class B(130^oC )
Termination	Screw and double 1/4 Q.C.
Operate	85%of nominal coil coltage; 110% maximum safe operate
Duty cycle	Continuous

Coil data

Steveco Number 30 Amp 40Amp	Voltage AC	Ress DC OHMS	Current MA	Nominal VA	Max. inrush
AMC2-388 AMC2-394	24	16.5	208	5	20
AMC2-389 AMC2-395	120	420	42	5	20
AMC2-390 AMC2-396	208/240	1825	21	5	20

Contact ratings

Type	Voltage	FLA	LRA	RES
AMC2-388 thru AMC2-390	277	30	150	40
	480	0	75	40
	600	30	50	40
AMC2-394 thru AMC2-396	277	40	200	50
	480	40	100	50
	600	40	80	50
