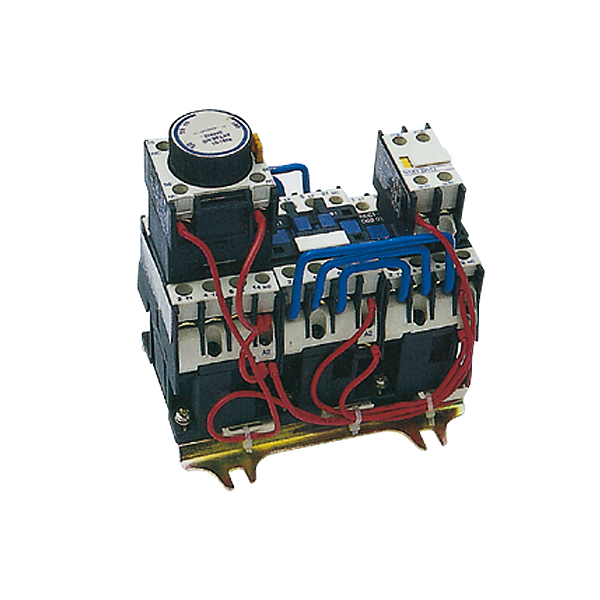

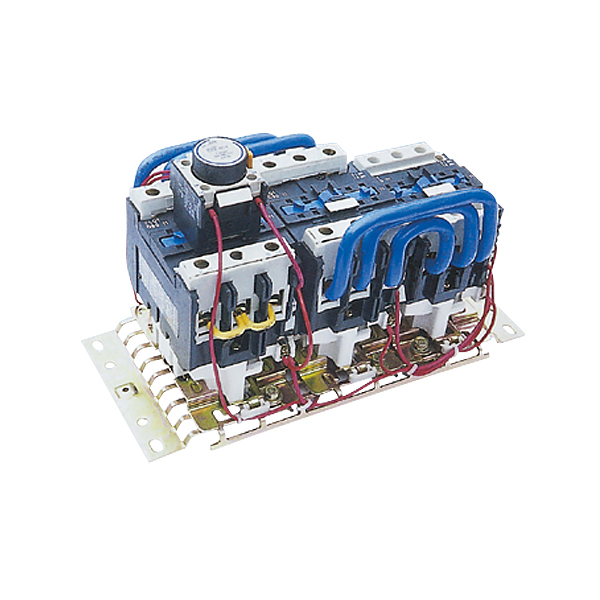

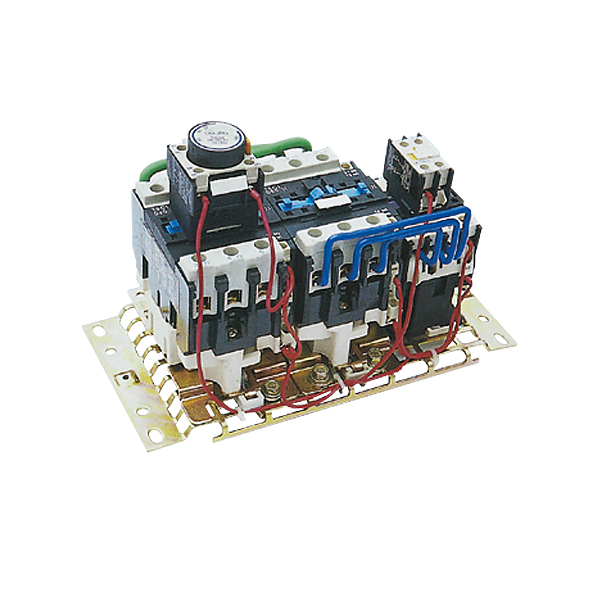

QCX3 Star-delta Reduced Voltage Starter
 |
 |
 |
Add to Inquiry Basket
View Inquiry Basket
The products that you selected had been put into inquiry basket !1.Application
QCX3 series star delta reduced voltage starter is suitable for starting motor in the circuit of AC 50/60Hz, voltage up to 660V and current up to 95A. It is provided with a timer for automaticchangeover of start-delta to reduce the voltage and current of motor starter. It complies withIEC947-4-1.
2.Specification
| Type | Rated Operating Current (A) | 3-phase Motor Capacity (kw) | |||
|---|---|---|---|---|---|
| AC3 | 220V | 380V | 415V | 440V | |
| QCX3-09 | 9 | 4 | 7.5 | 7.5 | 7.5 |
| QCX3-12 | 12 | 5.5 | 11 | 11 | 11 |
| QCX3-18 | 18 | 11 | 18.5 | 22 | 22 |
| QCX3-25 | 25 | 11 | 22 | 22 | 22 |
| QCX3-32 | 32 | 15 | 25 | 25 | 25 |
| QCX3-40 | 40 | 18.5 | 37 | 37 | 37 |
| QCX3-50 | 50 | 25 | 55 | 59 | 59 |
| QCX3-65 | 65 | 32 | 55 | 59 | 59 |
| QCX3-80 | 80 | 37 | 75 | 75 | 75 |
| QCX3-95 | 95 | 45 | 80 | 80 | 80 |
