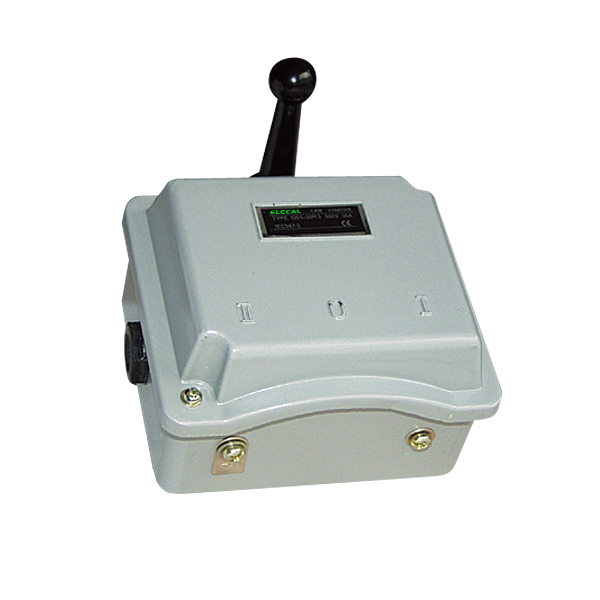

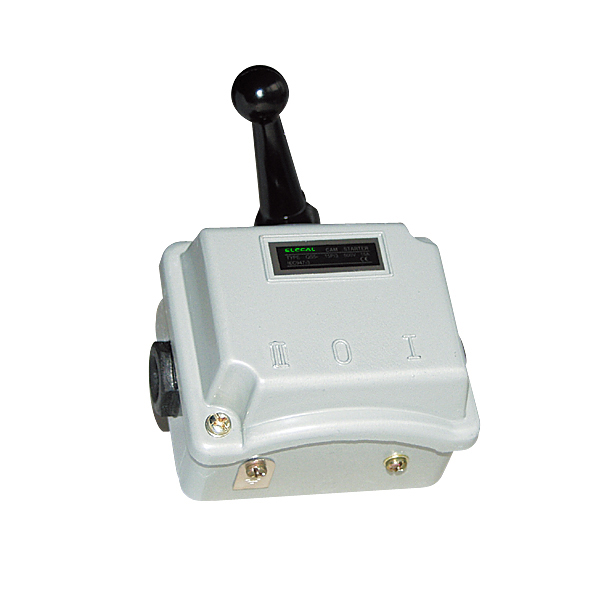

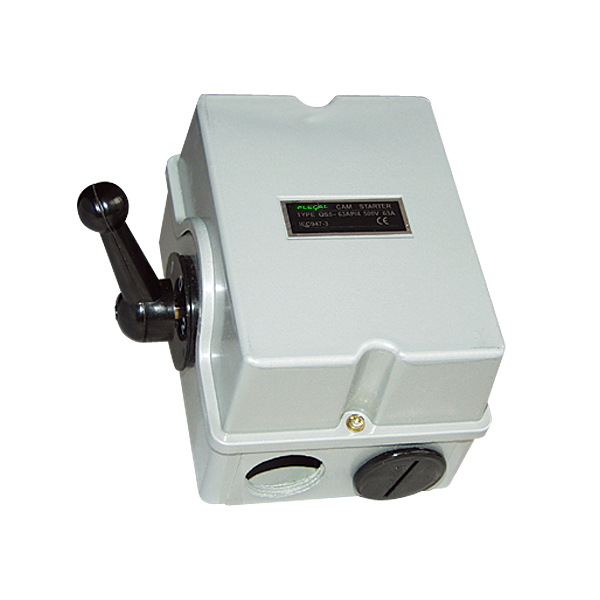

QS5 Series Cam Starter

Bookmark This Page

Print This Page

Contact Online

Asia :

　　　　　　　　　　　　Europe & Africa :

Middle East Area :

　　　　Oceania & America :

E-Mail : sales@elecal.com

Catalogue Download (PDF Files)

Add to Inquiry Basket　　

View Inquiry Basket

1.Application
QS5 cam starter is mainly used to start torward or backward and stop directly three-phase asynchronous elecric motor with AC 50/60Hz, voltage up to 500V and capacity up to 7.5KW. It can also be used for changeover from one ind of circuit to the other.

2.Specification

Model	Mark	Rated current (A)	Motor control capacity (HP)	Mechanical life (times)	Frequency of operation (per hr)	Applications	Position of lever
QS5-15A	I-O	15	5.5	250000	200	ON-OFF switching	0-60
QS5-30A		30	10
QS5-15N	I-O-I	15	5.5			Forward & reverse	60-0-60
QS5-30N		30	10
QS5-15P/3	I-O-II	15	5.5			for 3 pole two circuit	60-0-60
QS5-30P/3		30	10
QS5-63A	I-O	63	22	200000	180	ON-OFF switching	0-60
QS5-100A		100	30
QS5-63N	I-O-I	63	22			Forward & reverse	60-0-60
QS5-100N		100	30
QS5-63/P4	I-O-II	63	22			for 3 pole rwo circuit	60-0-60
QS5-100/P4		100
