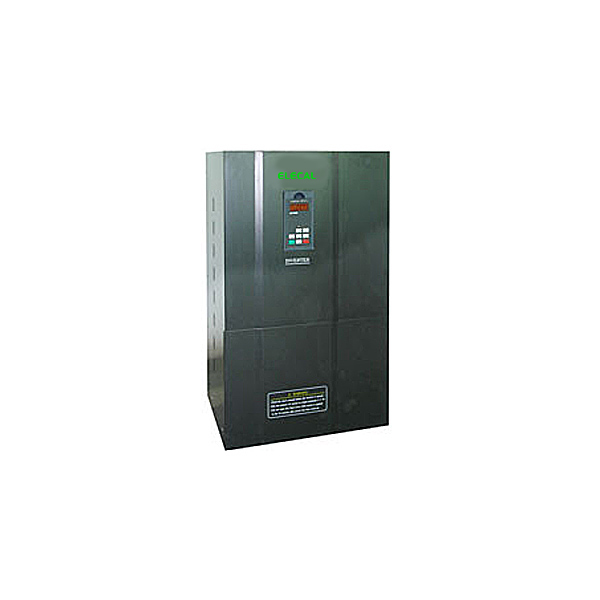

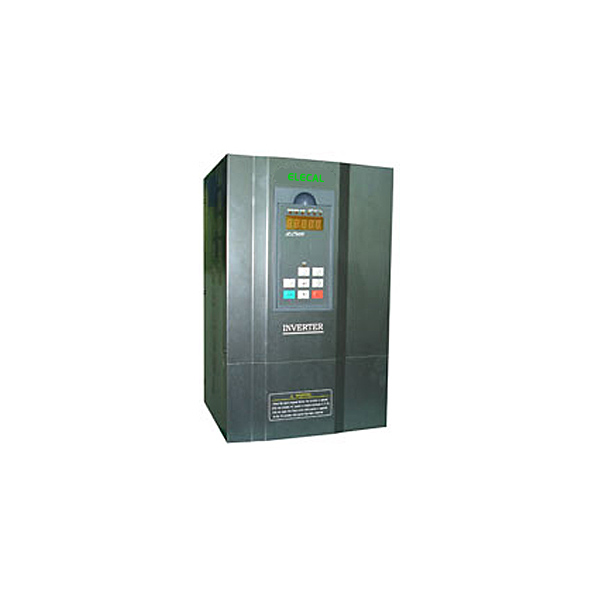

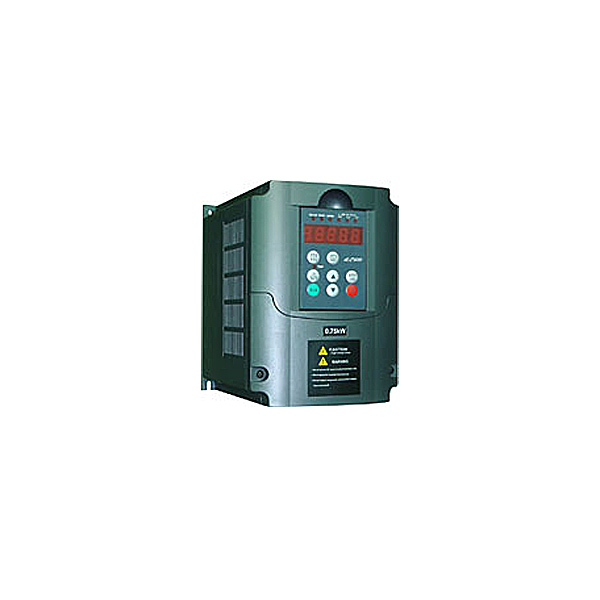

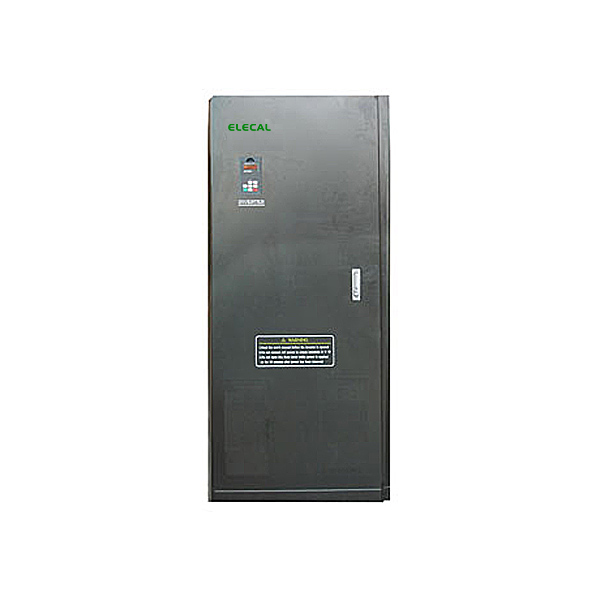

1.Introduction
comprehensive technology characteristics
1)Input & output characteristics
Input voltage range:380V/22V±15%
Input frequency range:47~63Hz
Output voltage range:0~rated input voltage
Output frequency range:0~600Hz

2)Peripheral interface characteristics
Programmable digital input:6-channel input.
Programmable analog input:AL1:0~10V input,AL2:0~10V or 0~20mA input.
Open collector output:2-channel output.
Relay output:1-channel output.
Analog output:1-channel output,0/4~20ma or 0~10V is available.

3)Characteristics of technical parameters
Control way:Vector control without PG,V/F control.
Overload way:150% rated current at 60s;180%rated current at 10s.
Starting torque:0.5HZ/150%(SVC)(without PG vector control)
Speed ratio:1:100(vector control without PG)
Speed control accuracy:0.5% max speed(vector control without PG).
Carrier frequency:1.0K~15.0KHZ.

4)Function characteristics
Frequency setting way:Digital setting,analog quantity,serial communication setting,multi-speed,PID setting,etc.;
PID control function.
Multi-speed control function:8-speed control.
Wobble frequency control function.
Non-shutdown function under instantaneous power failure
Function of restart by tracking speed:Realize impact-free smooth start of rotating motor.
QUICK/JOG key function:Multi-function shortcut key defined freely by users.
Automatic voltage adjustment function:When the mains voltage changes,it can keep output voltage constant automatically.
25 kinds of fault protection functions:Protections against over current,over voltage,under voltage,over temperature,phasa failure,over load,etc.

2. Specifications

Model	Input voltage	Power(kwa)	capacity of driver(KWA)	Output current(A)	Applicable motor(KW)
ADLT6000EV22004L	Single and three-phase 220V 50HZ	0.4	1.0	2.5	0.4
ADLT6000EV22007L	Single and three-phase 220V 50HZ	0.75	2.0	5.0	0.75
ADLT6000EV220015L	Single and three-phase 220V 50HZ	1.5	2.8	7.0	1.5
ADLT6000EV22022L	Single and three-phase 220V 50HZ	2.2	4.0	10	2.2
ADLT6000EV83007L	3380v 50HZ	0.75	2.2	2.7	0.75
ADLT6000EV83015L	3380V 50HZ	1.5	3.2	4.0	1.5
ADLT6000EV83022L	3380V 50HZ	2.2	4.0	5.0	2.2
ADLT6000EV83040L	3380V 50HZ	4.0	6.8	8.5	4.0
ADLT6000EV83055L	3380V 50HZ	5.5	10	12.5	5.5
ADLT6000EV83075L	3380V 50HZ	7.5	14	17.5	7.5
ADLT6000EV83110L	3380V 50HZ	11	19	24	11
ADLT6000EV83150L	3380V 50HZ	15	26	33	15
ADLT6000EV83185L	3380V 50HZ	18.5	32	40	18.5
ADLT6000EV83220L	3380V 50HZ	22	37	47	22
ADLT6000EV83300L	3380V 50HZ	30	52	65	30
ADLT6000EV83370L	3380V 50HZ	37	64	80	37
ADLT6000EV83450L	3380V 50HZ	45	72	91	45
ADLT6000EV83550L	3380V 50HZ	55	84	110	55
ADLT6000EV83750L	3380V 50HZ	75	116	152	75
ADLT6000EV83900L	3380V 50HZ	90	134	176	90
ADLT6000EV831100L	3380V 50HZ	110	160	210	110
ADLT6000EV831320L	3380V 50HZ	132	193	253	132
ADLT6000EV831600L	3380V 50HZ	160	230	304	160
ADLT6000EV832000L	3380V 50HZ	200	290	380	200
ADLT6000EV832200	3380V 50HZ	220	325	426	220
ADLT6000EV832500	3380V 50HZ	250	281	500	250
ADLT6000EV832800L	3380V 50HZ	280	427	560	280
ADLT6000EV833150L	3380V 50HZ	315	460	605	315
