1. Appliance

SVC₂ automatic voltage stabilizer consists of contact voltage regulator,sampling control cir-cuit and servomotor as well.It has excellent features,such as small waveform distortion,high efficiency,high power factor,free from the effect or frequency variation of supply.It can be widely used in most situations where the voltage stabilization is required.

2.Specification

Input voltage	150V-250V
Output voltage	220V±3%,110V±3%
Frequency	50HZ/60HZ
Response time	<1sec.(against 10% input voltage deviation)
Efficiency	>90%
Ambient temperature	-10oC~±40oC
Relative humidity	<90%
Waveform distortion	Non-lack fidelity waveform
Power factor cosΦ	0.8
Insulation resistance	>5MΩ

3.Specification

Type	Outline(cm)
	L	W	H
SVC2-500VA	220	220	65
SVC2-1000VA	240	240	87
SVC2-1500VA	240	240	87

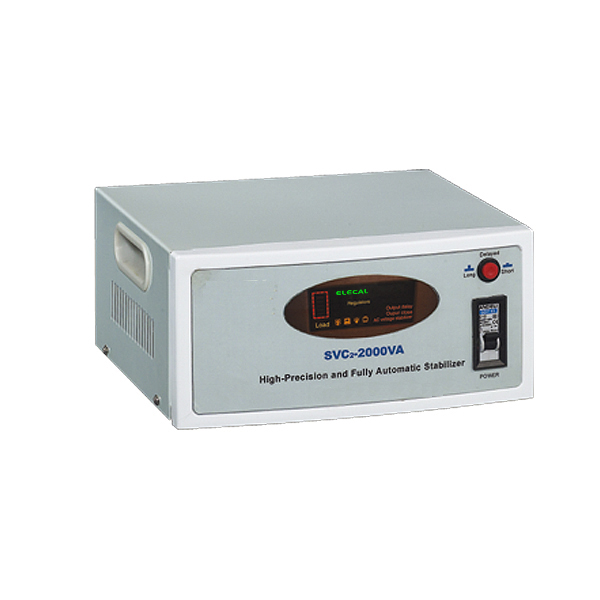

SVC2-2000VA	275	250	125

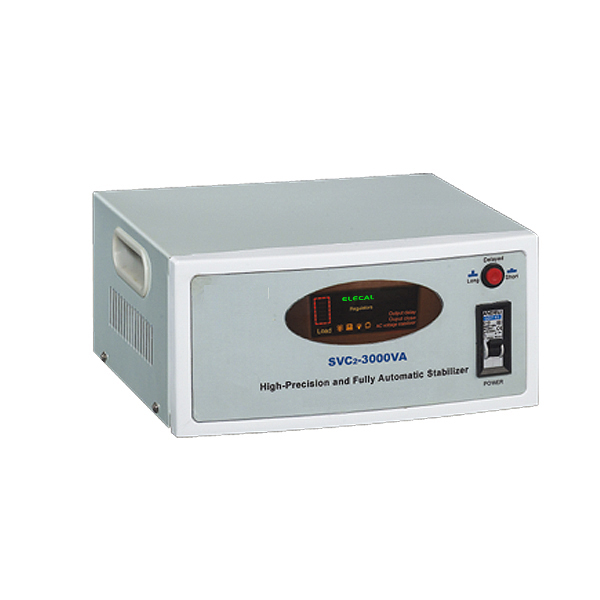

SVC2-3000VA	275	250	125

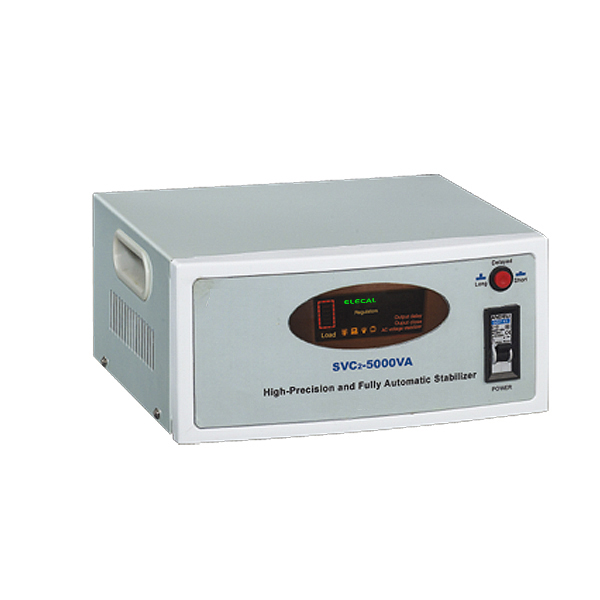

SVC2-5000VA	340	350	160
SVC2-7000VA	340	350	160
