1.Application

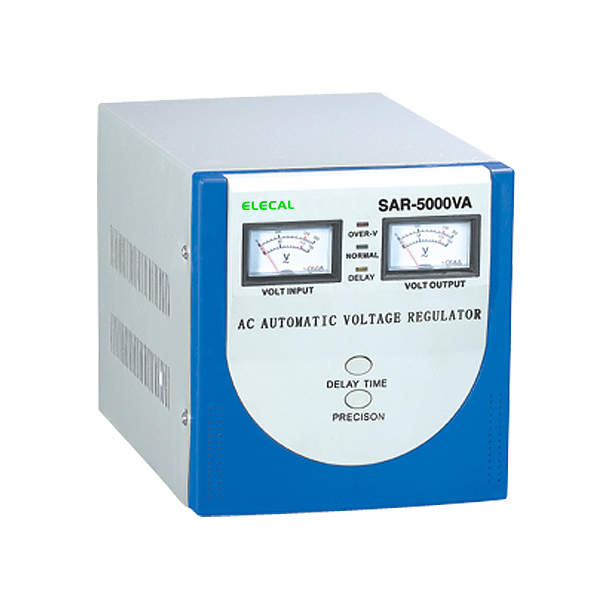

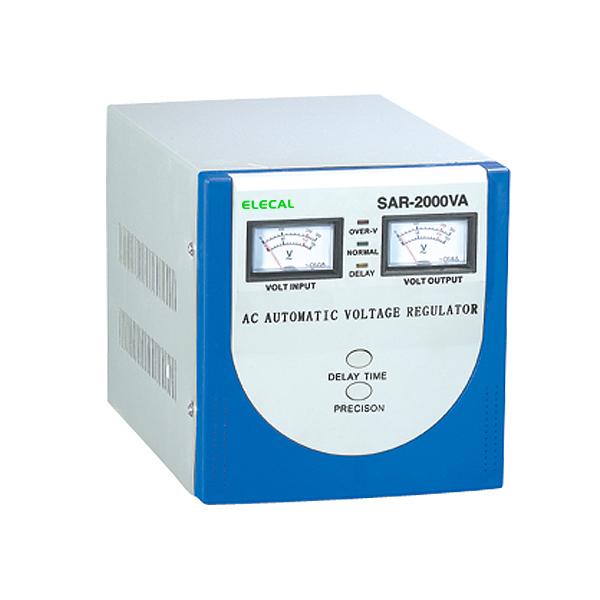

These special products of SAR series Voltage Regulator have advanced equipment, abundant technology, reliable quality and distinguished credit. SAR series are designed at JS3717-84 request, these products conform to fully automatic control of integrated circuit. They are of quick speed, good reliable of sensitive action, convenient use and assure the stale resuit. They are suitable for families, schools, enterprises, hotels and diets etc., where need a stable civil power. They can make the illumination lamp, TV set, air-conditioner, refrigerator, computer SAR-2000VA and copy machine etc. work at a normal condition and have a long using time.

2. Technical specification

Frequency	Regulating Time	Temperature Rise	Withstand Voltage	Low Voltage Protection	Over Voltage Protection
50-60Hz	Less Than 0.5	<60oC	Accord With Ministry Issued Standard	Output 100V/160V	Output 270V/260V
Model	Range	Input Civil Power Voltage(V)	Output Precision of Stabling Voltage
	Current	160-260	220V±5%
0.5KVA To 5KVA	Over-Low Voltage	130-270	220V±8%
	Special Over-Low Voltage	100-270	220V±10%
	High Precision of Stabling Voltage	160-270	220V±3%
