1.Usage
Emergency power supplied to the equipment of 380V/220V, such as fire protection facility or direct load or especially important load or fire protection emergency light load or other loads Installation form: On the ground (standard power cupboard) Backup time: 90-120 minuted, (standard), the backup time coule be deposited as designed Specification: 2KW-800KW Specification: 2,4,6,8,10,15,20,25,30,45,55,75,95,110,130,160,180,200,220,250,280,315,400, 500,630,800KW. These products are used for force load and fire protection emergency light.

2.Product summary

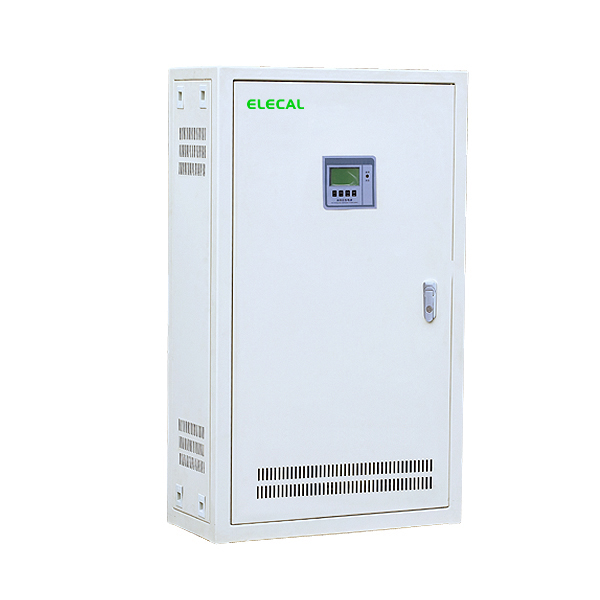

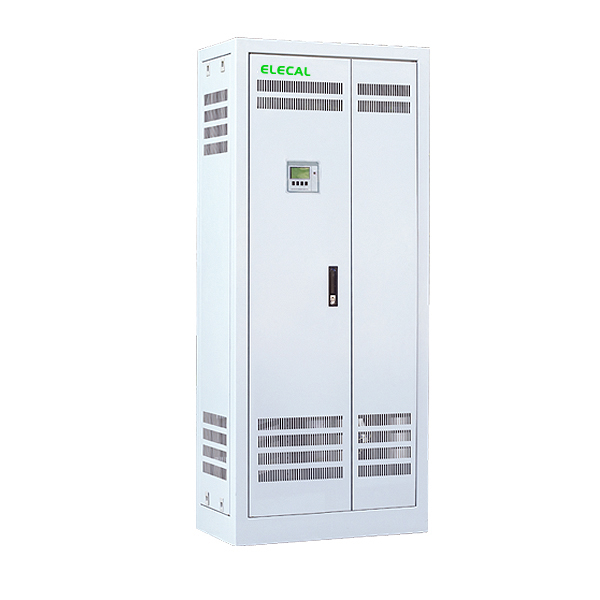

EPS Series is of high technical green product with CPU controlled, digital circuit and high integrated level electronic element, which adopts module inverter produced by international famous manufactory, and the newest fifth IGBT and invert technique.This product provieds the second or third powr for the direct load and especially important load facility and fire protection equipment or light.

3.Product summary
Static, no noise, no arranged cigarettes, no common damage, no fire hidden danger Switch over automatically without people Save energy, lose little power without emergency power supplied Stable capability,reliable safety and long using life Comparing with generator, it’s comprehensive price is lower and capability price ratio is better.

4.Characteristics
Adopt the newest IGBT invert module and high reliable integrated circuit Modulate PWM technology in pulse width, four in one desigmm,constructer simplified Supply power to any inductive or capacityve loads Link with fire control, could realize building intelligent monitor by distance and fire protection All the main componets adopt the high reliable well-known brand Direction wires and parts are of fire-netardant and un-burnt characteristics.
Notice:
1. EPS series is used for three phases, single phase or mixed type electrical equipment, such as lift, water pump, air blower, light, the screen of securities, air conditioner, office equipment, finacial institution and so on.
2.Auto. fire protection linking device could be chosen.
3. When the EPS needs fire protection link, remote monitor and output with multi-loops, please make sure before making order.

5.EPS products tecnincal parameter

Type		EPS-800KW
Voltage		380±20%
Input	Phase	Three phases four wires+PE
	Frequency	50HZ±5%
	Capacity	2KW-800KW
Output	Voltage	380VAC Three phases four wires+PE
	Voltage Precision	±5%
	Waveform	Sine wave distortion 3%
	Frequency	50HZ±0.5%
	Overload capacity	120% ordinarily run
Regulating time		<0.2s
Battery		Sealed battery maintained for free
Backup time		Standard time is 90 minuted or 120 minuted (backup time could be deposited as required)
Protection		Short-circuit protection, over-current protection, could run lack of phase
Display		LED or LCD
Efficiency		Power supplied emergently:above90%, Power supplied by electric net:about 100%
Operation environment		Temperature:-24oC-40oC, Relative humidity: 0-90% sealever height:less than 2000m
Noise		When there is city power, placed without noise, otherwise, the noise<55dB, larger than EPS-75KW, the noise<65dB
Size/weight		See the size and weight list
The method of door-opened and wires entry		The front door single open, the back door double open, the wires enter from the bottom(standard type)

Notice:
1.The output loop could be made inside the cupboard as required.
2.Detail specification: 2,4,6,8,10,15,20,25,30,35,55,75,95110,130,160,180,200,280,315,400,500,630,800KW.
