AC/DC Inverter
 |
 |
 |
Add to Inquiry Basket
View Inquiry Basket
The products that you selected had been put into inquiry basket !1. Application
AC/DC inverter is designed for switching DC24V to AC110-220V. They can be usedoutdoors or on home appliance as emergency power. Usually, cord with AC powersocket and the DC power cord with DC battery. When the load connects to the DCpower cord with DC power, if the commercial power falls, the inverter will convert thebatttery voltage to AC voltage and go on supplying. When the commercial power restall,the inverter will switch to charge the battery by itself. When the battery is fully charged,it will stop automatically.
2. Feature
AC voltage available for AC 100V, 110V, 120V, 220V, 230V or 240V at request.Each unit contains two AC sockets available for two pin plugs.Automatic function change for inverter or batttery charge.Selective 4 AC voltage for each unit, such as when AC 110V, it will be available for AC110V, 120V, 130V and 140V.Different led indicator for function of inverter and charger.Each unit contain a AC cord for AC input voltage besides.Model ZUP-300 and ZUP-300A unit contains an extra power cord for DC battery.Products applicable for:
A. Personal computer.
B. Various video/audio equipment. (TV, casset, tape record, etc.)
C. Small motor equipment.
D. Various lighting equipment. Protection:
a. Protection for short circuit and polarity reverse of battery.
b. Overload fuse protection for charging current, input voltage and output voltage.
3. Specification
Two outlets are incorporated for the simultaneous use of both the 110V and 220V outlets.The sockets are of a type that is capable of accepting two different types of plugsprongsand blades of two different forms.Built-in overload protection circuit and overdischarge protection circuit.
AC/DC inverter is designed for switching DC24V to AC110-220V. They can be usedoutdoors or on home appliance as emergency power. Usually, cord with AC powersocket and the DC power cord with DC battery. When the load connects to the DCpower cord with DC power, if the commercial power falls, the inverter will convert thebatttery voltage to AC voltage and go on supplying. When the commercial power restall,the inverter will switch to charge the battery by itself. When the battery is fully charged,it will stop automatically.
2. Feature
AC voltage available for AC 100V, 110V, 120V, 220V, 230V or 240V at request.Each unit contains two AC sockets available for two pin plugs.Automatic function change for inverter or batttery charge.Selective 4 AC voltage for each unit, such as when AC 110V, it will be available for AC110V, 120V, 130V and 140V.Different led indicator for function of inverter and charger.Each unit contain a AC cord for AC input voltage besides.Model ZUP-300 and ZUP-300A unit contains an extra power cord for DC battery.Products applicable for:
A. Personal computer.
B. Various video/audio equipment. (TV, casset, tape record, etc.)
C. Small motor equipment.
D. Various lighting equipment. Protection:
a. Protection for short circuit and polarity reverse of battery.
b. Overload fuse protection for charging current, input voltage and output voltage.
3. Specification
| Type | DC Voltage | Capacity | Charging Current |
| ZUP-300VA | DC12V, 24V | max.300W | max.25A |

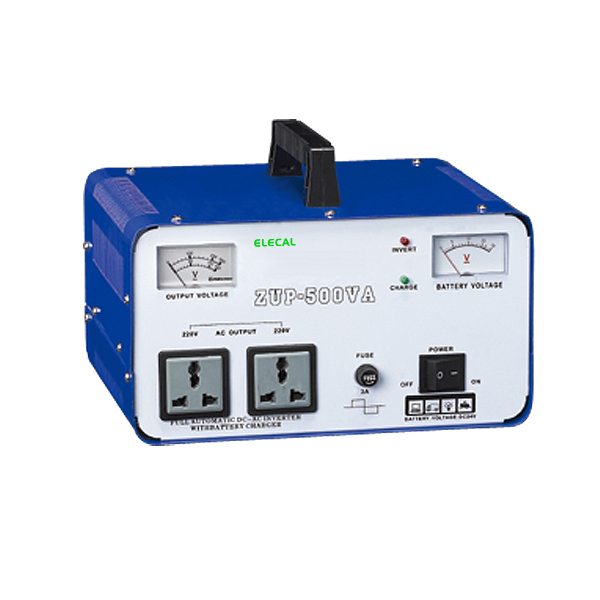

| ZUP-500VA | DC12V, 24V | max.500W | max.35A |

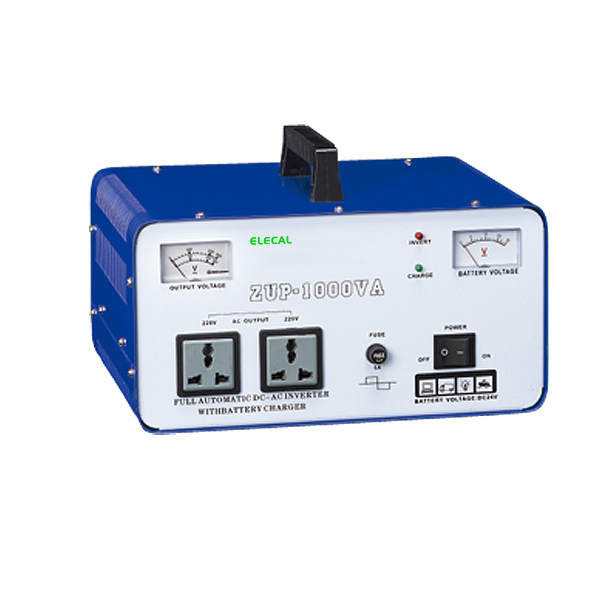

| ZUP-1000VA | DC12V, 24V | max.1000W | max.35A |
| ZUP-1500VA | DC12V, 24V | max.1500W | max.45A |

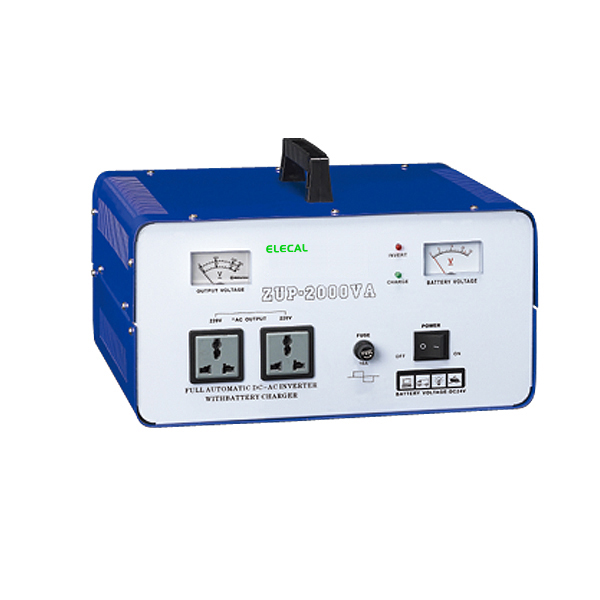

| ZUP-2000VA | DC12V, 24V | max.2000W | max.60A |
| ZUP-3000VA | DC24V, 48V | max.3000W | max.90A |
| ZUP-5000VA | DC24V, 48V | max.5000W | max.150A |
 |
 |
Batteries can be easily chargedusing home AC power source. |
Battery charging will be made safer than usingautomatic charging voltage control system. |
