Production introduction

Our company has developed this product by ourselves.As a high performance,high safety,pollution free dry-type transformer,it is suitable for the harsh environments where there is a high fire protection requirement,the great load fluctuation and the site where is of filth and moisture.For example:airport,power plant,metallurgy operation,hospital,high building shopping center,densely inhabited ared,petrochemical industry,nuclear power station and nuclear submarine,elc.

Normal service conditions
1.A unique ceramic type of insulation structure is adopted in H-class high strength insulation cylinders and high-frequency ceramic cushion blocks are adopted to ensure that no deformation will occur.
2.The high-voltage and low-voltage windings are made of NOMEX wrapped flat copper wires and imported copper foils.And they are sealed with high strength insulation materials.
3.The iron core is made of laminated imported high-quality silicon-steel sheets of high magnetic conductivity with a 45 stepwise all-bias structure.A flexible fastening unit is adopted to fasten the winding and iron core,which ensures a relatively low no-load loss and low noise.
4.Outlet terminals are fixed to the top of winding,taps are in the middle of winding,low-voltage line terminal are in plate-type current-conducting rows for which cold pressure welding is adopted.

Normal service conditions
1)Altitude should not be over 1000m:indoor type
2)Highest ambient temperature should not over:+40^oC;Highest daily average should not over temperature:+30^oC
3)Highest annual average temperature should not over +20^oC,lowest temperature should not below -5^oC,We can provide transformer operated in special conditions according to user's requirement.

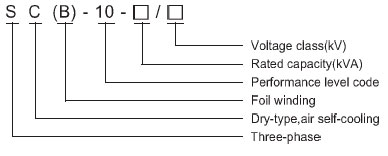

Model designation

Applicable standards
GB6450-1986 Dry-type power transformer
GB/T10228-1997 Technical parameters and requirements for dry-type power transformer
GB/T17211-1998 Guide rules for dry-type power transformer load
GB10237-1998 Insulation level and insulation test for power transformer
GB4208-1993 Casing protection grade(IP code)
JB/10008-1999 6~220KV transformer sound level
JB/T56009-1998 Product quality grading for dry-type power transformer

Performance characteristics
1.Excellent heat dissipation,long thermal life,good overload capacity,without forced air-cooling under a long-term 120% overload and IP45 condition.It can operate for a long time at full load.
2.Extremely high safety fire resistance performance,smoke-free while burning under a temperature as high as 800^oC.
3.Extremely high thremal shock resistance capacity.
4.100% water-proof,excellent moisture -proof.
5.Unique winding structure and field strength calculation makes partial discharge impossible.
6.Low loss and significant energy saving effect.Compared with SC9 series of dry-type transformers,the no-load loss falls 10% and load loss falls 5% in average.
7.The insulation material and copper conductor can be dismantled easily and recycled after the service life. Therefore,no pollution will occur.

Notes for placing orders

Transformer type:rated capacity kVA
Number of phases:three-phase single-phase
High voltage: KV/Low voltage:KV
Frequency:50HZ 60HZ
Tapping range:±4×2.5% ±3×2.5% other
Connection group:Yyn0 Dyn11 other
Impedance voltage:4% 6% other
Cooling method: ONAN ONAF
Protecting grade of outer casing:IP00 IP20 IP30 other

Method of incoming and outgoing line:
1.Incoming line to lower part and outgoing line from upper part
2.Incoming line to upper part and outgoing line form upper part
3.Incoming line to upper part and outgoing line form side part
4.other
*If customer has no requirement,the color of outer casing is light grey(the standard color of ANDELI),or you sould indicate color code that you want

Main technical parameters of SG(B)10-100~2500/10 series of transformers
