S9-M-30-2500/10 Hermetically-sealed distribution transformer

Bookmark This Page

Print This Page

Contact Online

Asia :

　　　　　　　　　　　　Europe & Africa :

Middle East Area :

　　　　Oceania & America :

E-Mail : sales@elecal.com

Catalogue Download (PDF Files)

Add to Inquiry Basket　　

View Inquiry Basket

Production introduction

Installation mode:indoor/outdoor type
Ambient temperature:-25^oC~+40^oC(outdoor) -5^oC~+40^oC(indoor)
Highest altitude:1000m
Installation site:in places without corrosive gases and obvious dusts.

Applicable standards
GB1094.1-2-1996 Power Transformer
GB1094.3;5-2003 Power transformer
GB/T6451-1999 Technical parameters and requirements for three-phase oil-immersed power transformer

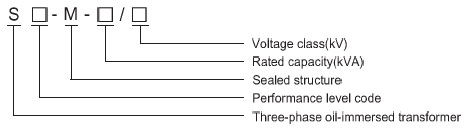

Model designation

Performance characteristics
1.A multilayer cylinder structure is used for all high voltage windings in order to improve the voltage impulse distribution of windings.
2.For the capacity range of low voltage windings is from 30kVA to 2000kVA,the cylinder type or spiral structure is used to ensure the high mechanical strength,ampere lure distribution,and excellent short-circuits proof performance.
3.The securing structure is set in the transformer body,which is used for ensuring that no displacement will occur during the transportation;meanwhile,the turnbuckles are mounted in fasteners,which is for assuring that fasteners will not be loose during the long term operation.
4.Corrugated tanks are used in transformer for replacing the conservator.The tank enclosure and rim are completety sealed by welding or bolting up,which prolongs the service life of transformer oil.
5.The transformer surface are painted with primer and finish coats after derusting,and phosphorizing;which can meet the special operation requirements in metallurgic and petrochemical industries,as well as,in moist and dirty places.
6.The press relief valves,signal thermometers,and gas relays are equipped in the oil tank of hermetically sealed transformer in order to the standard requirements for safe operation.The transformers are attractive and competitive due to the compact shape,excellent design,and maintenance-free.

Notes for placing orders

Transformer type:rated capacity kVA
Number of phases:three-phase single-phase
High voltage: KV/Low voltage:KV
Frequency:50HZ 60HZ
Tapping range:±4×2.5% ±3×2.5% other
Connection group:Yyn0 Dyn11 other
Impedance voltage:4% 6% other

Main technical parameters of S9-M-30~2500/10 series of transformers

Rated capacity(KVA)	Voltage combination(KV)			Connecting groupid	No-load lossess(W)	Load-loss(W)(75^oC)	Short circuit impedance(%)	No-load current(%)	IP00(no crust)			Overall dimension(mm)	Gauge(mm)
Rated capacity(KVA)	High voltage(KV)	Tapping(%)	Low voltage(KV)	Connecting groupid	No-load lossess(W)	Load-loss(W)(75^oC)	Short circuit impedance(%)	No-load current(%)	Body	Oil	Gross weight	Length×Width×Height	Gauge(mm)
30	6 6.3 10	±5 ±2×2.5	0.4	Yyno or Dynll	130	600	4.0	2.1	185	80	330	750×530×820	400×400
50					170	870		2.0	240	90	400	830×630×970	400×400
63					200	1040		1.9	260	100	440	830×670×970	400×400
80					240	1250		1.8	280	105	520	1145×665×1030	550×550
100					290	1500		1.6	325	120	600	1145×665×1055	550×550
125					340	1800		1.5	440	140	700	920×680×1075	550×550
160					400	2200		1.4	490	140	740	1190×690×1145	550×550
200					480	2600		1.3	500	160	860	1290×765×1165	550×550
250					560	3050		1.2	610	200	1000	1385×815×1180	550×550
315					670	3650		1.1	740	220	1250	1345×770×1275	550×550
400					800	4300		1.0	920	240	1400	1430×820×1305	660×660
500					960	5150		1.0	1100	300	1700	1520×870×1380	660×660
630					1200	6200	4.5	0.9	1330	390	2100	1650×920×1390	820×820
800					1400	7500		0.8	1560	470	2565	1780×1020×1475	820×820
1000					1700	10300		0.7	1720	420	2690	1830×1110×1600	820×820
1250					1950	12000		0.6	1920	510	3110	1870×1120×1685	820×820
1600					2400	14500		0.6	2430	590	3800	1930×1160×1800	1070×1070
2000					2850	17200	5.5	0.5	2950	810	4770	2120×1260×1920	1070×1070
2500					3360	20500	5.5	0.5	3250	1040	5370	2240×1320×1950	1070×1070

Main technical parameters of S10-M-30~2500/10 series of transformers

Rated capacity(KVA)	Voltage combination(KV)			Connecting groupid	No-load lossess(W)	Load-loss(W)(75^oC)	Short circuit impedance(%)	No-load current(%)	IP00(no crust)			Overall dimension(mm)	Gauge(mm)
Rated capacity(KVA)	High voltage(KV)	Tapping(%)	Low voltage(KV)	Connecting groupid	No-load lossess(W)	Load-loss(W)(75^oC)	Short circuit impedance(%)	No-load current(%)	Body	Oil	Gross weight	Length×Width×Height	Gauge(mm)
30	6 6.3 10	±5 ±2×2.5	0.4	Yyno or Dynll	110	600	4.0	2.1	185	80	330	750×530×820	400×400
50					150	870		2.0	245	90	390	830×630×970	400×400
63					180	1040		1.9	285	100	490	860×670×1000	400×400
80					200	1250		1.8	295	115	520	890×680×1025	550×550
100					230	1500		1.6	325	140	590	930×690×1060	550×550
125					270	1800		1.5	380	150	730	950×720×1090	550×550
160					310	2200		1.4	470	170	770	970×740×1180	550×550
200					380	2600		1.3	550	205	930	1070×805×1150	550×550
250					460	3050		1.2	635	225	1060	1410×820×1210	550×550
315					540	3650		1.1	825	240	1255	1455×830×1260	660×660
400					650	4300		1.0	965	280	1525	1530×840×1300	660×660
500					780	5150		1.0	1150	305	1800	1630×930×1390	660×660
630					920	6200	4.5	0.9	1360	420	2225	1710×960×1445	660×660
800					1120	7500		0.8	1560	470	2565	1780×1020×1475	820×820
1000					1320	10300		0.7	1900	540	3070	1850×1130×1600	820×820
1250					1560	12000		0.6	2160	615	3415	1900×1170×1660	820×820
1600					1880	14500		0.6	2575	770	4155	1074×1240×1700	1070×1070
2000					2280	17200	5.5	0.5	2840	815	4690	2120×1260×1790	1070×1070
2500					2630	20500	5.5	0.5	3500	1240	6085	2260×1360×1900	1070×1070

Main technical parameters of S10-M-30~2500/10 series of transformers

Rated capacity(KVA)	Voltage combination(KV)			Connecting groupid	No-load lossess(W)	Load-loss(W)(75^oC)	Short circuit impedance(%)	No-load current(%)	IP00(no crust)			Overall dimension(mm)	Gauge(mm)
Rated capacity(KVA)	High voltage(KV)	Tapping(%)	Low voltage(KV)	Connecting groupid	No-load lossess(W)	Load-loss(W)(75^oC)	Short circuit impedance(%)	No-load current(%)	Body	Oil	Gross weight	Length×Width×Height	Gauge(mm)
30	6 6.3 10	±5 ±2×2.5	0.4	Yyno or Dynll	100	600	4.0	2.1	165	70	300	800×660×940	400×400
50					130	870		2.0	240	100	450	820×610×1035	400×400
63					150	1040		1.9	270	100	500	830×640×1045	400×400
80					180	1250		1.8	360	113	585	900×675×1140	550×550
100					200	1500		1.6	380	120	590	870×670×1170	550×550
125					240	1800		1.5	430	129	780	1180×670×1170	550×550
160					280	2200		1.4	550	140	800	1190×690×1195	550×550
200					340	2600		1.3	570	165	940	1290×765×1245	550×550
250					400	3050		1.2	750	220	1230	1385×790×1330	550×550
315					480	3650		1.1	790	230	1280	1335×770×1340	550×550
400					570	4300		1.0	1100	280	1670	1430×820×1430	660×660
500					680	5150		1.0	1300	300	1880	1420×790×1510	660×660
630					810	6200	4.5	0.9	1440	350	2170	1525×830×1540	660×660
800					980	7500		0.8	1750	355	2453	1550×840×1660	660×660
1000					1150	10300		0.7	1810	470	2820	1830×1130×1640	820×820
1250					1360	12000		0.6	2160	520	3340	1870×1130×1680	820×820
1600					1640	14500		0.6	2625	600	3700	1850×1150×1965	1070×1070
2000					1940	17200	5.5	0.5	3100	710	4300	2090×1280×1930	1070×1070

Main technical parameters of S9,s10,s11-2500~6300/10 series of transformers

Rated capacity(KVA)	Voltage combination(KV)			Connecting groupid	No-load lossess(W)	Load-loss(W)(75^oC)	Short circuit impedance(%)	No-load current(%)	IP00(no crust)			Overall dimension(mm)	Gauge(mm)
Rated capacity(KVA)	High voltage(KV)	Tapping(%)	Low voltage(KV)	Connecting groupid	No-load lossess(W)	Load-loss(W)(75^oC)	Short circuit impedance(%)	No-load current(%)	Body	Oil	Gross weight	Length×Width×Height	Gauge(mm)
S9
2500	6 6.3 10 10.5 11	±5 ±2×2.5	3.15 6.3	Yd11	2970	20700	5.5	0.70	3000	1240	6100	2260×1360×1900	1070×1070
3150					3510	24300		0.70	3630	1510	7800	2460×1400×2600	1070×1070
4000					4320	28800		0.60	4350	1770	8100	2700×1900×2800	1475×1070
5000					5130	33000		0.60	5180	2000	9300	3000×2200×2900	1475×1475
6300					6120	36900		0.55	6490	2200	10800	3200×2400×3100	1475×1475
S10
2500	6 6.3 10 10.5 11	±5 ±2×2.5	3.15 6.3	Yd11	2640	19550	5.5	0.70	3150	1300	6390	2260×1360×1950	1070×1070
3150					3120	22950		0.70	3800	1590	7360	2460×1400×2650	1070×1070
4000					3840	27200		0.60	4560	1860	8500	2700×1900×2850	1475×1070
5000					4560	31170		0.60	5440	2100	9760	3000×2200×2950	1475×1070
6300					5440	34850		0.55	6820	2300	11350	3200×2400×3150	1475×1070
S11
2500	6 6.3 10 10.5 11	±5 ±2×2.5	3.15 6.3	Yd11	2310	19550	5.5	0.70	3300	1430	6690	2260×1360×2000	1070×1070
3150					2730	22950		0.70	3990	1660	7750	2460×1400×2700	1070×1070
4000					3360	27200		0.60	4780	1950	8900	2700×1900×2900	1475×1070
5000					3990	31170		0.60	5700	2200	10200	3000×2200×3000	1475×1070
6300					4760	34850		0.55	7140	2400	11880	3200×2400×3200	1475×1070
