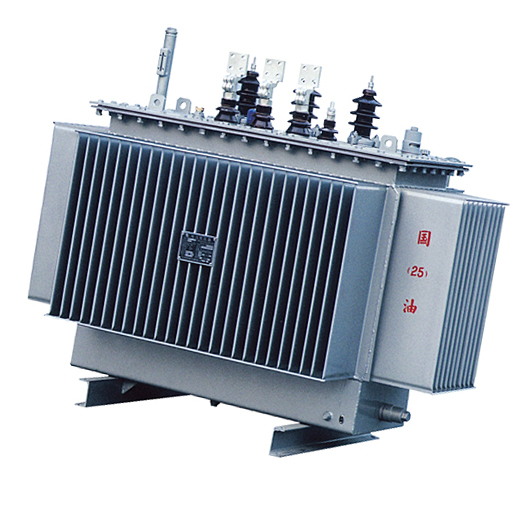

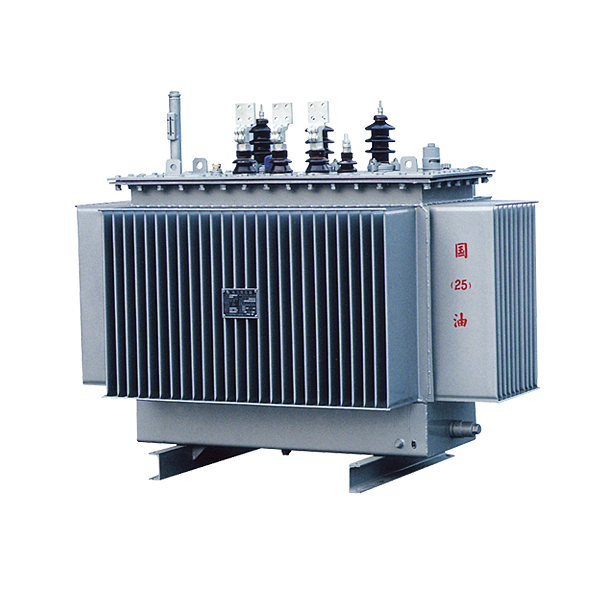

Class 10KV S11-M series transformer

Return

Bookmark This Page

Print This Page

Contact Online

Asia :

　　　　　　　　　　　　Europe & Africa :

Middle East Area :

　　　　Oceania & America :

E-Mail : sales@elecal.com

Catalogue Download (PDF Files)

Add to Inquiry Basket　　

View Inquiry Basket

Rated capacity (KVA)	Voltage			connection group tab	Loss		unload current(%)	resistant voltage	weight			Measure(MM)			Distance of Din rail
Rated capacity (KVA)	high-voltage(kv)	extend connection	low-voltage(kv)	connection group tab	unload	load	unload current(%)	resistant voltage	empty weight	oil weight	total weight	length(L)	width(W)	height(H)	cross(M)×length
30	6 6.3 10 10.5 11	±5% (±2×2.5%)	0.4	Yyn0	100	600	2.1	4	205	80	360	755	700	970	400×400
50					130	870	2.0		260	85	420	785	735	995	400×450
63					150	1040	1.9		325	110	535	1150	700	1130	400×450
80					180	1250	1.8		330	90	505	815	755	1035	400×450
100					200	1500	1.6		380	100	570	830	775	1040	400×450
125					240	1800	1.5		430	105	645	845	770	1100	400×550
160					280	2200	1.4		495	115	725	875	780	1115	550×550
200					340	2600	1.3		570	130	845	1160	740	1135	550×550
250					400	3050	1.2		670	150	1010	1270	840	1160	550×550
315					480	3650	1.1		785	165	1135	1220	775	1220	660×660
400					570	4300	1.0		935	190	1375	1350	895	1265	660×660
500					680	5150	1.0		1100	215	1580	1395	905	1325	660×660
630					810	6200	0.9		1315	250	1905	1465	980	1355	660×660
800					980	7500	0.8	4.5	1655	310	2360	1555	995	1465	820×820
1000					1150	10300	0.7		1835	355	2710	1715	1160	1525	820×820
1250					1360	12000	0.6		2185	410	3200	1790	1235	1585	820×820
1600					1640	14500	0.6		2490	500	3845	1830	1300	1670	820×820
