ZGS11 Series Combired Transformer
 |
 |
Add to Inquiry Basket
View Inquiry Basket

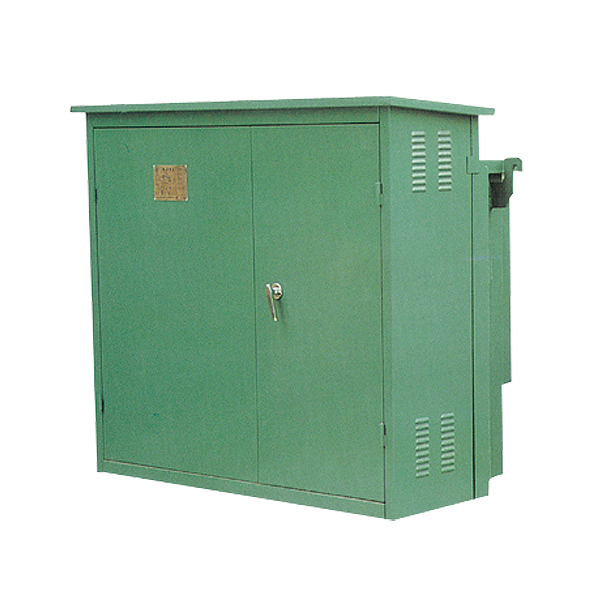

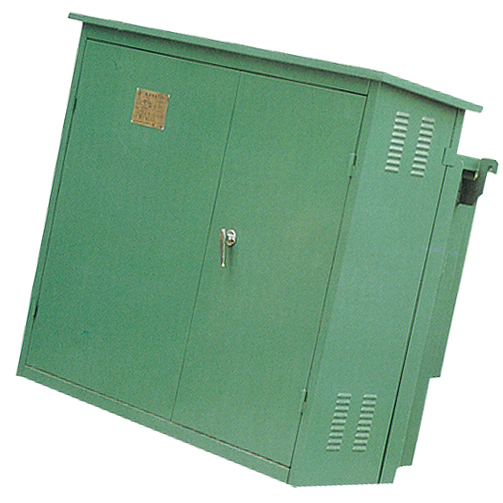

The products that you selected had been put into inquiry basket !| 1.Summy ZGS11 Combined transformer is one of the high-tech prodnets devel-oped by our company on the basis of bad-mounted Transformer. Rangeof capacity:200-1000KV/A. The produet is suitable for the reutral-pointdistribution system or small-resistance earthing system in a 10KV dis-tribution network, or the neutral-point solid grounding system of a three-phase four-wire system in a 400V distribution network, well-integrated,reliable in power supply, compact, light in weight, low noise, etc; It hastwo types of cable outlet s:ring net type and terminal type.The producet can be placed directly into the load center of 10KVnetwork, thus the line loss in reduced and power dis tribution reliabilityin increased. |
2.Technical Specification
| Type | Rated Capacity (KVA) | Voltage Schedule | Vector Group | Consumption(w) | No-load current (%) | |||
| HV(KV) | Tapping | LV(KV) | No-load (KW) | load (KW) | ||||
| ZGS9-H(Z)-100/10 | 100 | ±5%(±2×2.5%) | 0.4 | Dyn11 | 0.29 | 1.50 | 1.6 | |
| ZGS9-H(Z)-125/10 | 125 | 0.34 | 1.80 | 1.5 | ||||
| ZGS9-H(Z)-160/10 | 160 | 0.40 | 2.20 | 1.4 | ||||
| ZGS9-H(Z)-200/10 | 200 | 0.48 | 2.60 | 1.3 | ||||
| ZGS9-H(Z)-250/10 | 250 | 0.56 | 3.05 | 1.2 | ||||
| ZGS9-H(Z)-315/10 | 315 | 0.67 | 3.65 | 1.1 | ||||
| ZGS9-H(Z)-400/10 | 400 | 0.80 | 4.30 | 1 | ||||
| ZGS9-H(Z)-500/10 | 500 | 0.96 | 5.10 | 1 | ||||
| ZGS9-H(Z)-630/10 | 630 | 1.20 | 6.20 | 0.9 | ||||
| ZGS9-H(Z)-800/10 | 800 | 1.40 | 7.50 | 0.8 | ||||
| ZGS9-H(Z)-1000/10 | 1000 | 1.70 | 10.30 | 0.7 | ||||
