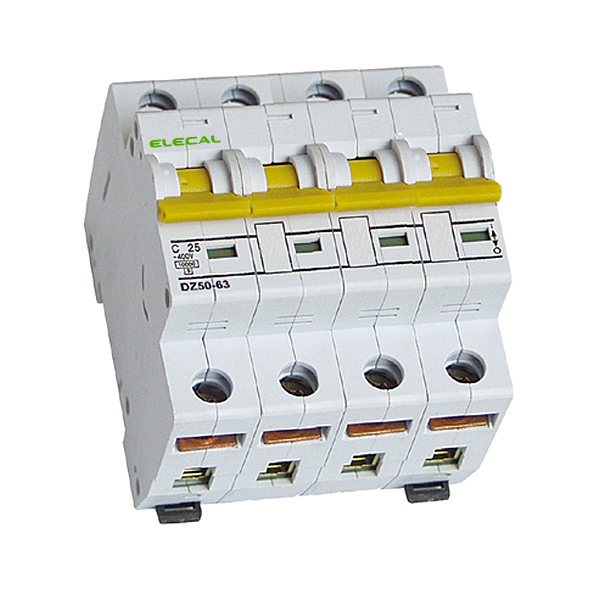

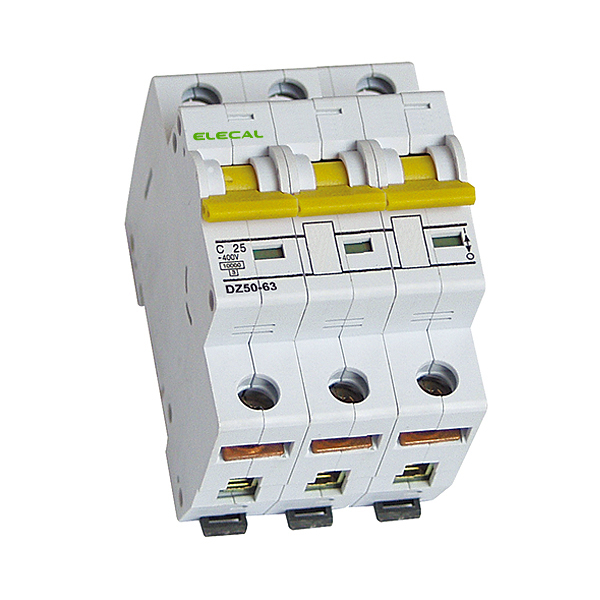

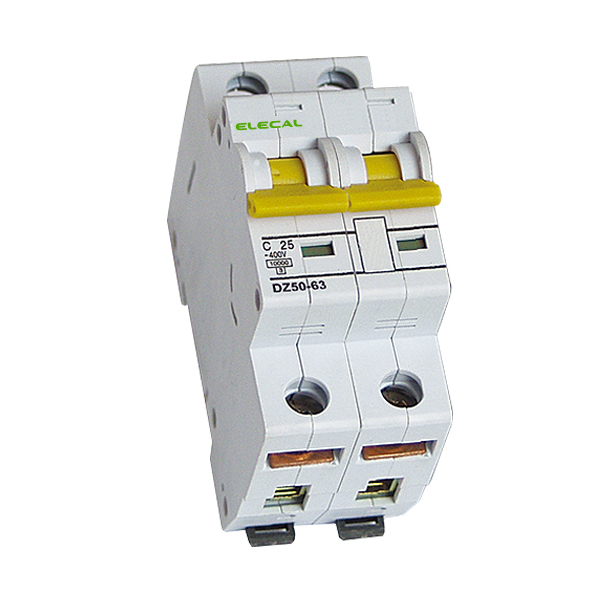

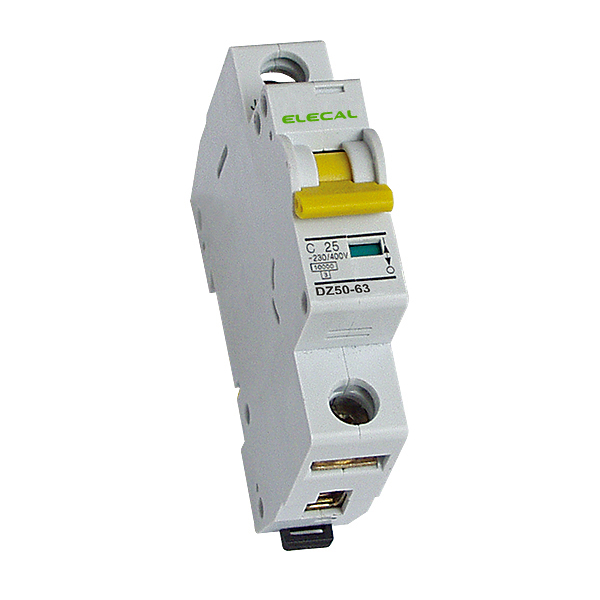

AL7 Mini Circuit Breaker

Return

Bookmark This Page

Print This Page

Contact Online

Asia :

　　　　　　　　　　　　Europe & Africa :

Middle East Area :

　　　　Oceania & America :

E-Mail : sales@elecal.com

Catalogue Download (PDF Files)

Add to Inquiry Basket　　

View Inquiry Basket

Main technical Specifications

Series		AL7
Type		B			C				G
Poles		1	2	3	1	2	3	4	1	2	3
Rated Voltage(V)		240/415
Rated Current(A)		6,10,16,20,25			2,4,6,10,20,25,32,40,50				6,10,15,20,30,40,50
Breaking Capacity(KA)		10			6				6
Triping Device		Thermal-coil magnetic
Dimen-sions(mm)	a b c d	17.7	35.4	53.1	17.7	35.4	53.7	0.8	17.7	35.4	53.1
		43							67
		67
Weight(kg)		0.1	0.2	0.3	0.1	0.2	0.3	0.4	0.1	0.2	0.3
