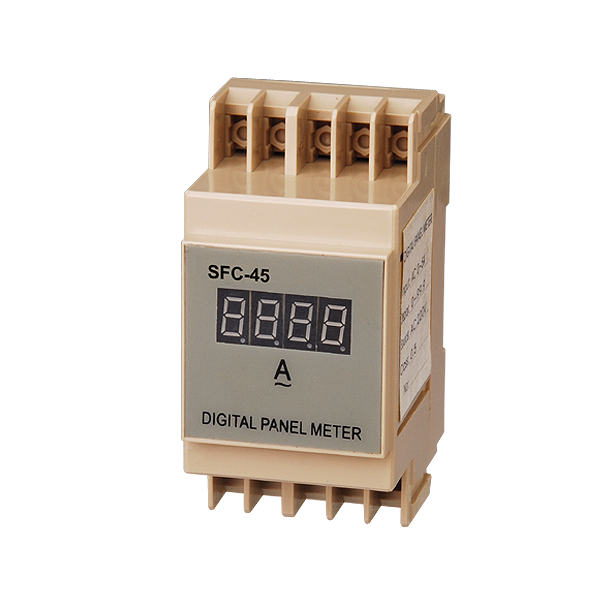

Modular Type Panel Meter
 |
 |
 |
 |
 |
 |
 |
 |
 |
Add to Inquiry Basket
View Inquiry Basket
The products that you selected had been put into inquiry basket !| MODEL | NAME | SPECIFICATION | ACCURACY | |
|---|---|---|---|---|
| SFC-45 SFC-100 |

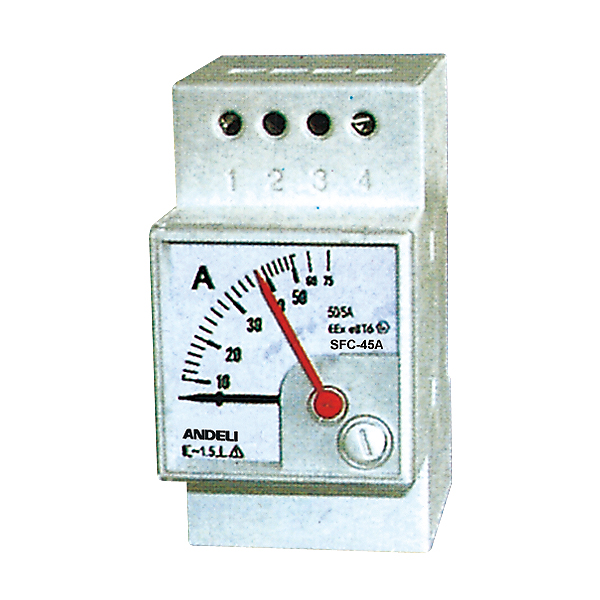

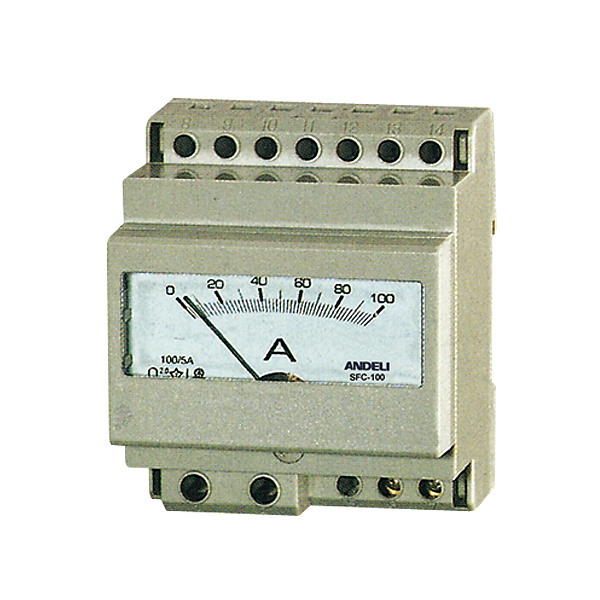

AC AMMETER | FROM 10A,15A, 20A,30A...TO 3000A,500A | WITH EXT.C/T 1A OR 5A | CLASS 1.5 |
| FROM 0.1A,0.5A, 1A,5A,10A,25A...TO 80A,100A | AC DIRECT CONNECTION | CLASS 1.5 | ||
| DC AMMETER | FROM 50A,100A, 1mA,5mA...1A,5A,10A,25A,30A...TO 100 | DC DIRECT CONNECTION | CLASS 1.5 | |
| FROM 10A,15A, 20A,30A...2500A,3000A...TO 8KA,10KA | WITH EXT,SHUNT 50MV,60MV OR 75MV | CLASS 1.5 | ||

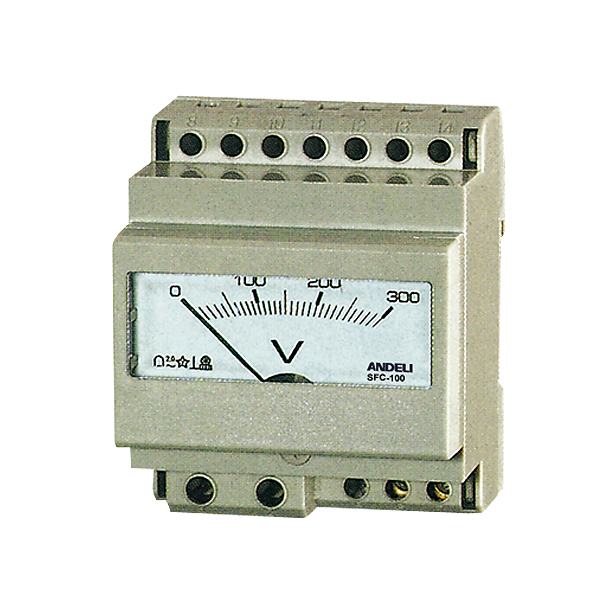

| AC VOLTMETER | FROM 30V,50V,100V...TO 300V,500V,600V | AC DIRECT CONNECTION | CLASS 1.5 | |
| FROM 1KV,2KV, 5KV...TO 380KV,450KV | WITH EXT.VOLTAGE TRANSFORMER | CLASS 1.5 | ||
| DC VOLTMETER | FROM 10V,20V, 30V...TO 500V,600V,1000V | DC DIRECT CONNECTION | CLASS 1.5 | |
| FROM 1KV,2KV, 5KV...TO 8KV,9KV,10KV | WITH EXT. RESISTOR | CLASS 1.5 | ||

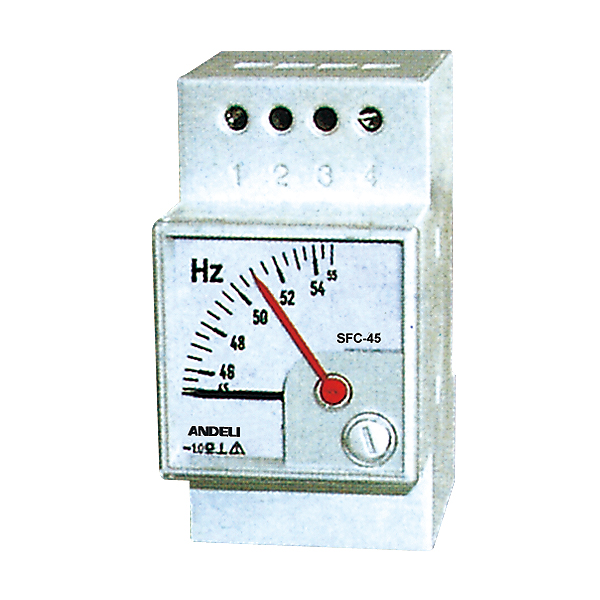

| FREQUENCY METER | VOLTAGE:110V,220V,380V,440V | ...... | CLASS 1.0 | |
| FREQUENCY: 45-55Hz,45-65hZ,55-65Hz,47-53Hz | ||||

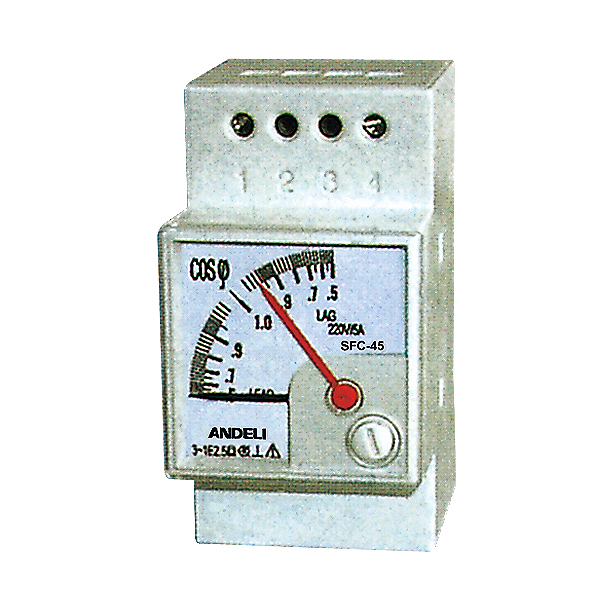

| POWER FACTOR METER(COS§) | VOLTAGE: 10V,220V,380V,440V CURRENT: 1A OR 5A | FOR IPHASE OR 3PHASE | CLASS 2.5 | |
| SCALE: 0.5cap-1-0.5ind, 0.3cap-1-0.1ind, 0.7cap-1-0.2ind | ||||

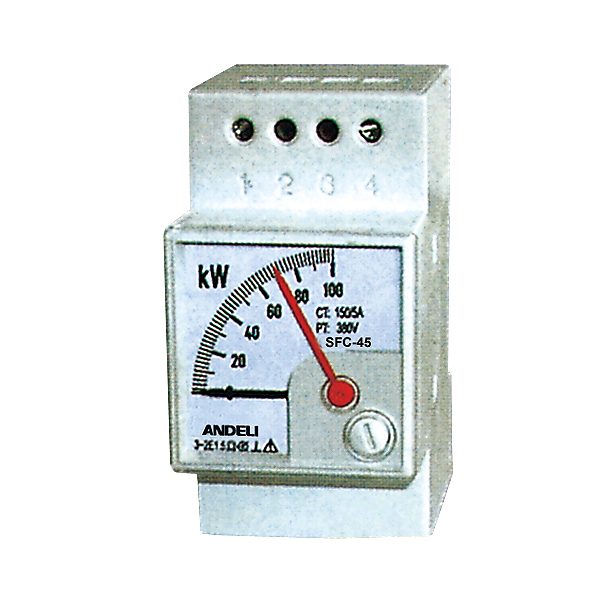

| POWER METER(KW OR KVAR) | VOLTAGE: 110V,220V,380V,440V CURRENT: 1A OR5A | FOR IPIW,3P3W,3P4W WITH C/T OR VOLTAGE TRANSFORMER | CLASS 1.5 | |
