1.Applications

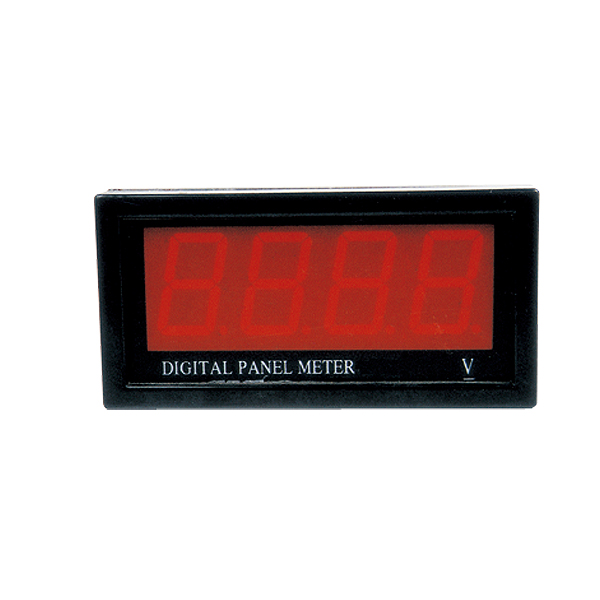

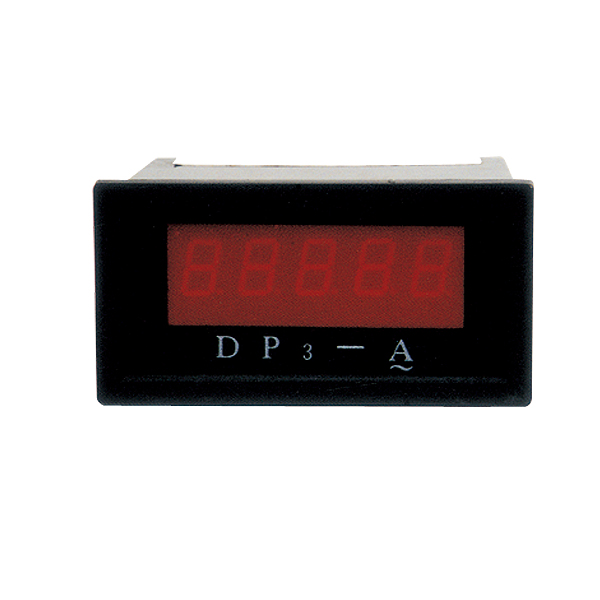

Digital panel meter which is various and artistic in appearance design is used for dual slope, high precise A/D changeover circuit and high light LED cassette setting specification. It is very convenient for user to fix the equipment.

2.Specification

Description	Direct input range	Input current range	Operation voltage	Display range	Class

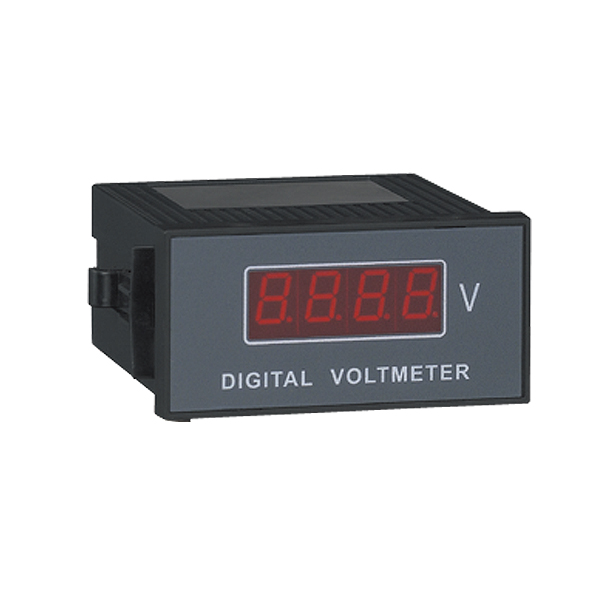

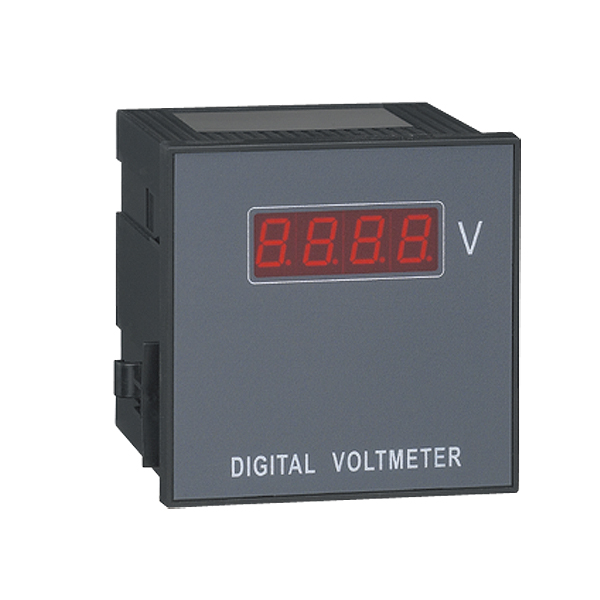

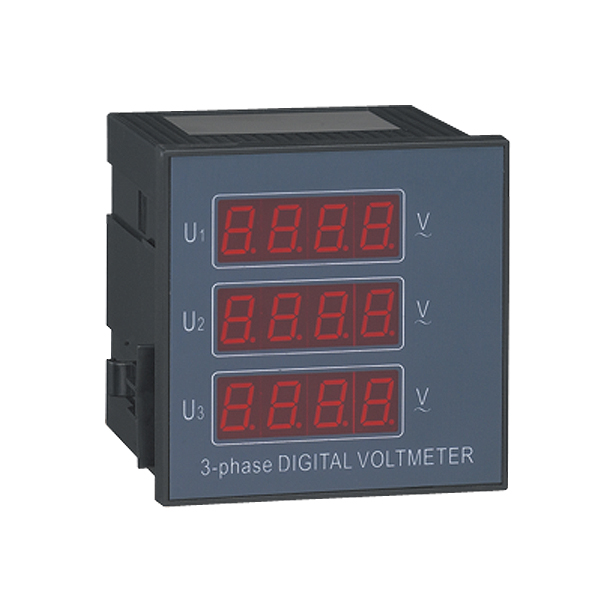

AC & DC digital voltage meter	AC DC0-100V	–	AC 220V 50/60Hz	0-1999	0.5

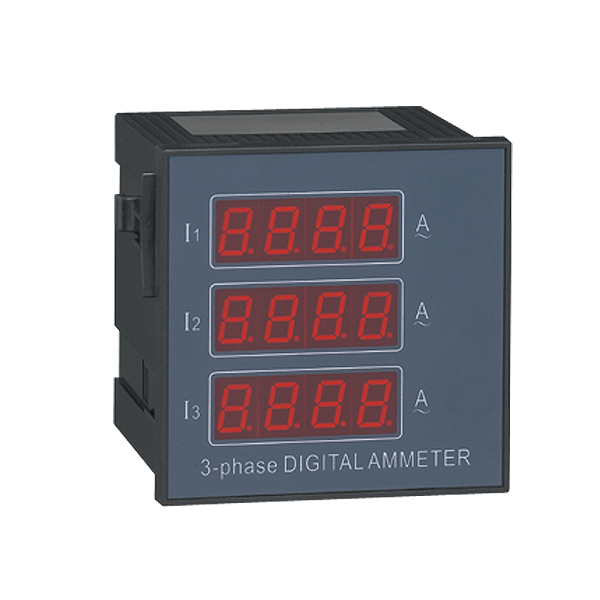

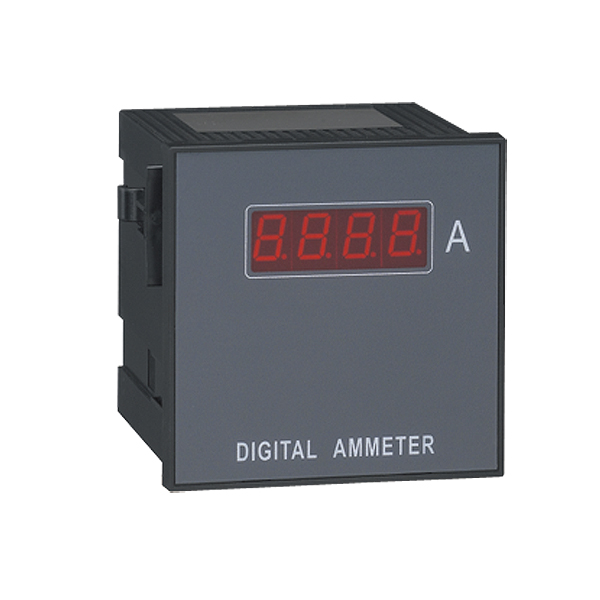

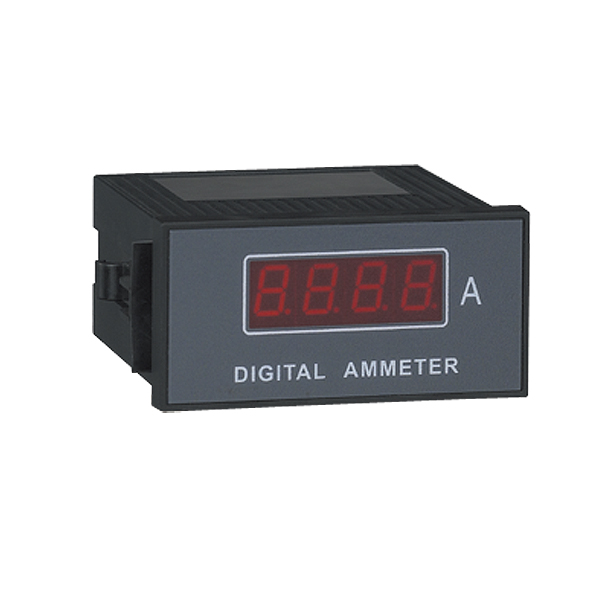

AC & DC digital Ampere meter	AC 10-20A DC 0-10A	–	AC 220V 50/60Hz	0-1999	0.5

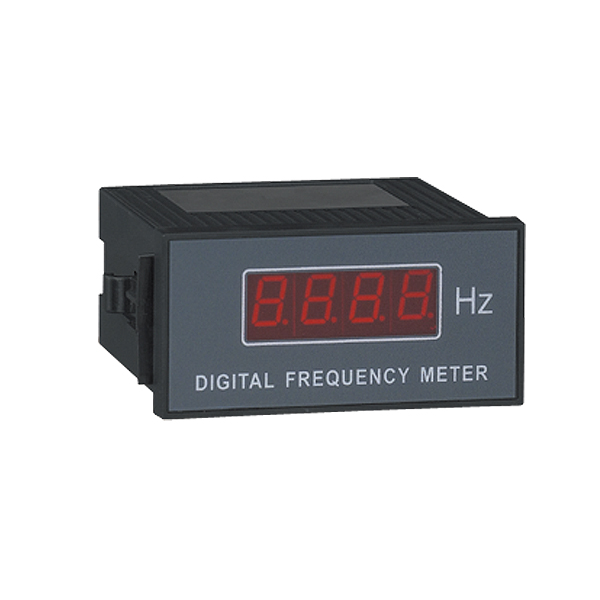

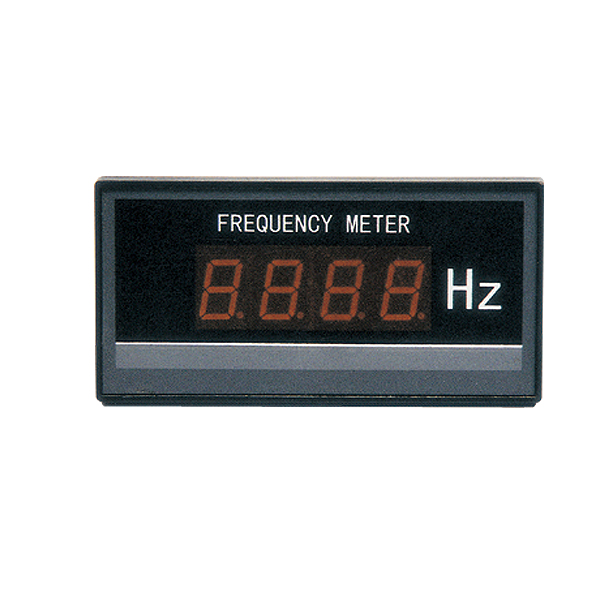

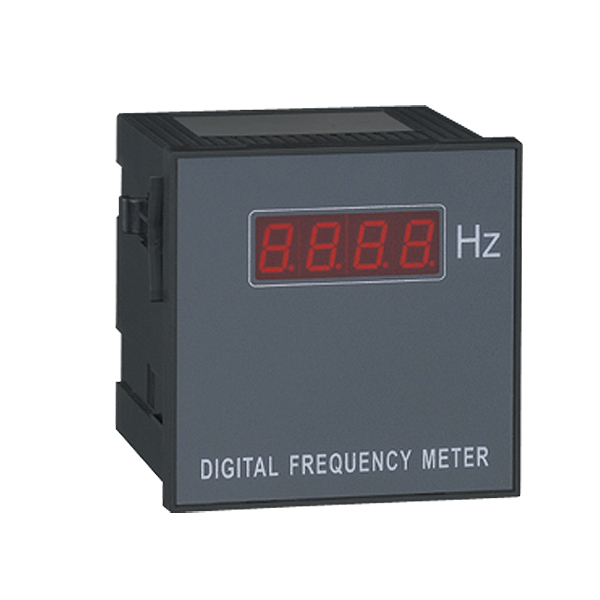

Frequency digital meter	AC 10-2KHZ (20-300V)	–	AC 220V 50/60Hz	0-1999	0.5

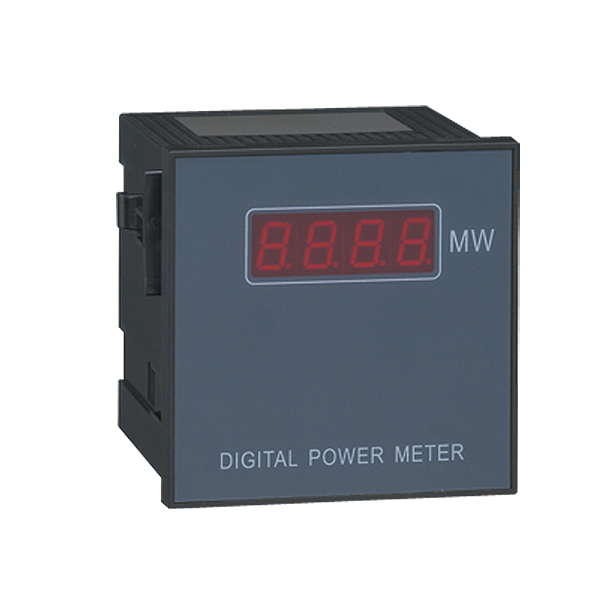

AC tri-phase watt meter	AC 0-100V	AC 5A	AC 380V 50/60Hz AC 110V 50/60Hz	0-1999	–
AC single-phase watt meter	AC 0-220V	AC 10-5A	AC 220V 50/60Hz AC 110V 50/60Hz	0-1999	–

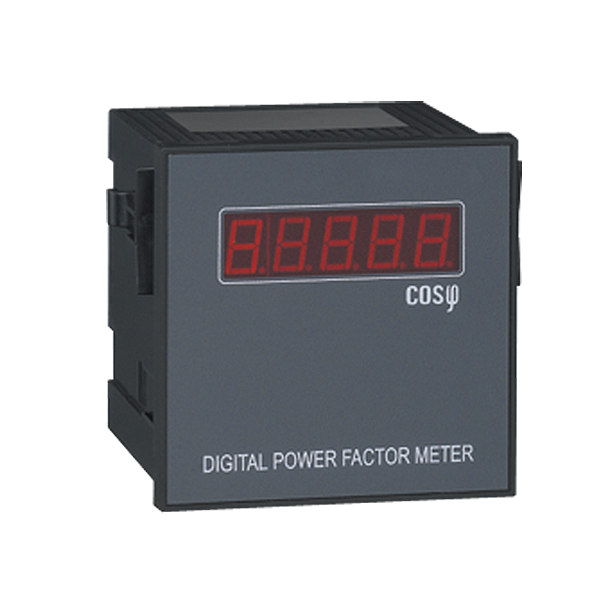

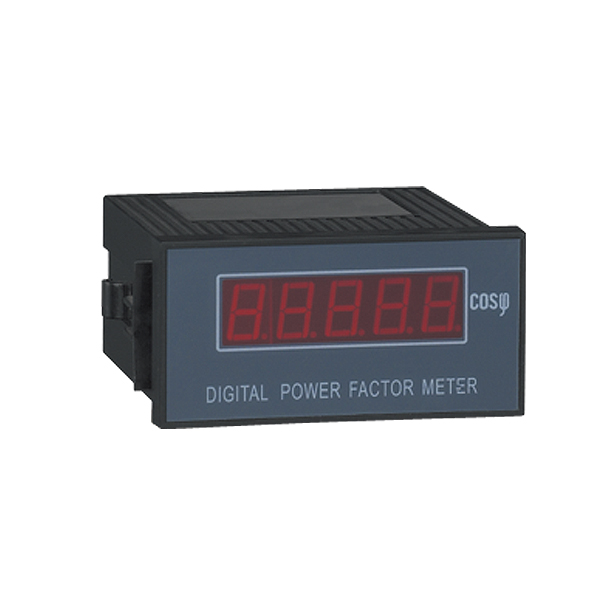

AC single-phase factor meter	AC 100-300V	AC 5A	AC 220V 50/60Hz	0.5-0-0.5	–
