D.C Ammeters-voltmeters

Return

Bookmark This Page

Print This Page

Contact Online

Asia :

　　　　　　　　　　　　Europe & Africa :

Middle East Area :

　　　　Oceania & America :

E-Mail : sales@elecal.com

Catalogue Download (PDF Files)

Add to Inquiry Basket　　

View Inquiry Basket

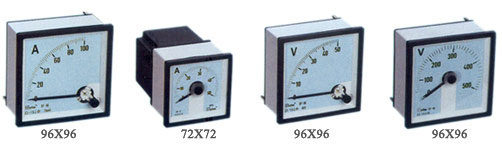

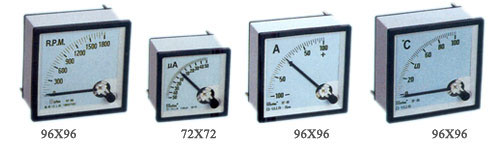

The general features & function & mounting dimension of panel meter:

Specification :

D.C AMMETERS
Type	SF-48(48X48mm)		SF-72(72X72mm)		SF-96(96X96mm)		SF-144(144X144mm)
	50,60,75mV	0 central 50,60,75mV	50,60,75mV	0 central 50,60,75mV	50,60,75mV	0 central 50,60,75mV	50,60,75mV	0 central 50,60,75mV
10A	●	●	●○	●○	●○	●○	●	●
15A	●	●	●○	●○	●○	●○	●	●
20A	●	●	●○	●○	●○	●○	●	●
25A	●	●	●○	●○	●○	●○	●	●
30A	●	●	●○	●○	●○	●○	●	●
40A	●	●	●○	●○	●○	●○	●	●
50A	●	●	●○	●○	●○	●○	●	●
60A	●	●	●○	●○	●○	●○	●	●
80A	●	●	●○	●○	●○	●○	●	●
100A	●	●	●○	●○	●○	●○	●	●
150A	●	●	●○	●○	●○	●○	●	●
200A	●	●	●○	●○	●○	●○	●	●
300A-3000A	●	●	●○	●○	●○	●○	●	●
● 90^o ○ 240^o Interchangable scale

D.C VOLTMETERS
Type	SF-48(48X48mm)		SF-72(72X72mm)		SF-96(96X96mm)		SF-144(144X144mm)
		0 central		0 central		0		0 central
10A	●	●	●○	●○	●○	●○	●	●
15A	●	●	●○	●○	●○	●○	●	●
20A	●	●	●○	●○	●○	●○	●	●
25A	●	●	●○	●○	●○	●○	●	●
30A	●	●	●○	●○	●○	●○	●	●
40A	●	●	●○	●○	●○	●○	●	●
50A	●	●	●○	●○	●○	●○	●	●
60A	●	●	●○	●○	●○	●○	●	●
80A	●	●	●○	●○	●○	●○	●	●
100A	●	●	●○	●○	●○	●○	●	●
150A	●	●	●○	●○	●○	●○	●	●
200A	●	●	●○	●○	●○	●○	●	●
300A-3000A	●	●	●○	●○	●○	●○	●	●
● 90^o ○240^o Interchangable scale
