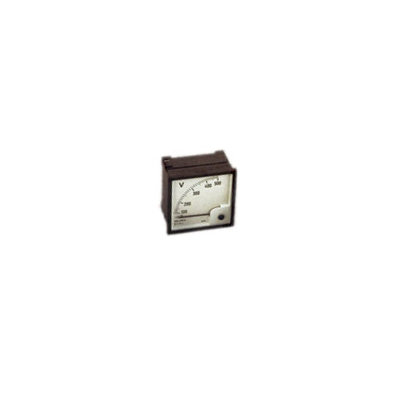

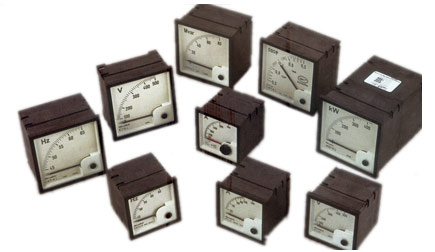

RC-96-8,RC-72-8 panel meter
 |
 |
Add to Inquiry Basket
View Inquiry Basket
The products that you selected had been put into inquiry basket !
 |
|||
|
RC-96-8,RC-72-8 |
|
RC-96-8,RC-72-8:
|
|
Name |
Specification | Primary CT(A) | Model of meter | Accuracy |
| AC Ammeter | From 10A,15A,20A,30A... to 3000A,5000A | Withext.c/t 1A or 5A | RC-96,RC-72 | Class 1.5 |
| From 0.1A,0.5A,1A,5A,10A,25A...to 80A ,100A | AC direct connection | RC-96,RC-72 | Class 1.5 | |
| DC Ammeter | From 50uA,100uA,1mA,5mA...1A,5A,10A,25A,30A... to 100A | DC direct connection | RC-96,RC-72 | Class 1.5 |
| From 10A,15A,20A,30A...2500A,3000A... to 8KA,10KA | With ext.shunt 50MV,60MV or 75MV | RC-96,RC-72 | Class 1.5 | |
| AC Voltmeter | Form 30V,50V,100V... to 300V,500V,600V | AC direct connection | RC-96,RC-72 | Class 1.5 |
| From 1KV,2KV,5KV... to 380KV,450KV | With ext.voltage transformer | RC-96,RC-72 | Class 1.5 | |
| DC Voltmeter | From 10V,20V,30V... to 500V,600V,1000V | DC direct connection | RC-96,RC-72 | Class 1.5 |
| From 1KV,2KV,5KV... to 5KV,9KV,10KV | With ext.resistor | RC-96,RC-72 | Class 1.5 | |
| Frequency Meter | Voltage: 110V ,220V ,380V, 440V | RC-96,RC-72 | Class 1.0 | |
| Frequency:45-55Hz,45-65Hz,55-65Hz,47-53Hz | ||||
| Power factor meter(cos) | Voltage:110V,220V,380V,440V current:1A or 5A | for 1 phase or 3 phase | RC-96,RC-72 | Class 2.5 |
| Scale:0.5cap-1-0.5ind,0.3cap-1-0.1ind,0.7cap-1-0.2ind | ||||
| Power meter (Kw or kvar) | Voltage:110V,220V380V.440V current:1A or 5A | For 1P 1W,3P3W,3P4W | RC-96,RC-72 | Class 1.5 |
| With C?T or voltage transformet | ||||
| Maximum demands ammeter | 15min 5A,or 15MIn 1A | Changeable scale | RC-96,RC-72 | Class 3.0 |
|
Interchangable scale:
|
|
|
The scales of the instruments in this catalogue are conform to the DIN 43802 standards.The instruments for use by means of a C.T. or shunt can have interchangeable scales and are made in such a way that it is impossible to touch the indicator or damage th mechanism while the change is carried out. Shift the lid placed on the upper part of the instrument in the direction of the arrows to obtain access to the aperture; after each operation,close the lid accurately to totally close the aperture Important warning:the instrument should not be connected into the supply when the scale is replaced |
|

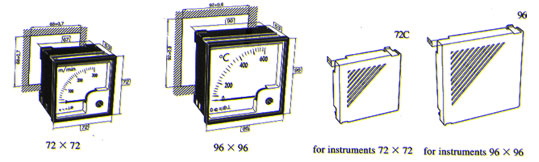

Dimensions in MM:
|
 |
