96X96

72X72

48X48

96X48

Model:SF-D96W(var) SF-D72W(var) SF-DP3 SF-D48W(var)
Size:96X96mm,72X72mm,96X48mm,48X48mm
Function: measure the single phase wattmeter,single phase varmeter,3P3W wattmeter,3P3W varmeter,3P4W wattmeter or 3P4W
Feature:
1.display:4 1/2digital .LED display (red or green)
2.Accuracy:0.5%±3 digit
3.Auxiliary power:AC 110V± 10% 50/60Hz AC 220V±10% 50/60Hz
4.Input signal:Voltage 100V,220V,380V or according to the requirement current:0-5A or 0-1A.
5.Measuring range: All ranges
6.Consumption:<3.2VA
7.Max signal consumption:<0.3VA
8.Operating environment:temperature-10^oC ~+50^oC humidity:≤ 85%
9.Storage Environment:temperature -30^oC~+60^oC humidity:≤ 70%
10.Heat resistance:case of non-combustible plastic material
11.Voltage testing:over 2000V
12. Fastening:by means of nuts, absolutely safe, fast robust, side-by-side.

Digital Meter With DIP Switch:

---

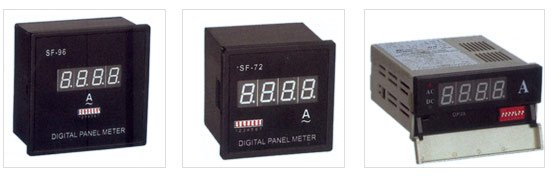

AC Ammeter with dip switch :

96X96mm

72X72mm

96X48mm

AC Voltmeter with dip switch:

---

96X96mm

72X72mm

96X48mm
