SF-96-6 SF-72-6 Series Panel Meter
 |
 |
 |
 |
 |
 |
Add to Inquiry Basket
View Inquiry Basket
The products that you selected had been put into inquiry basket !|
Measuring Ranges :
|
|

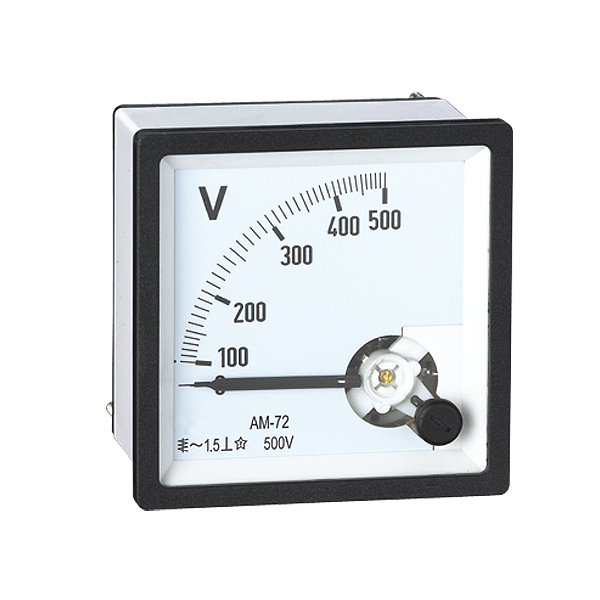

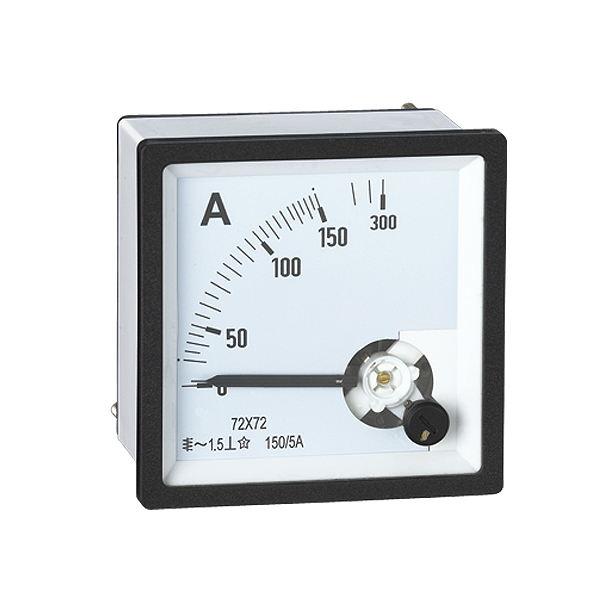

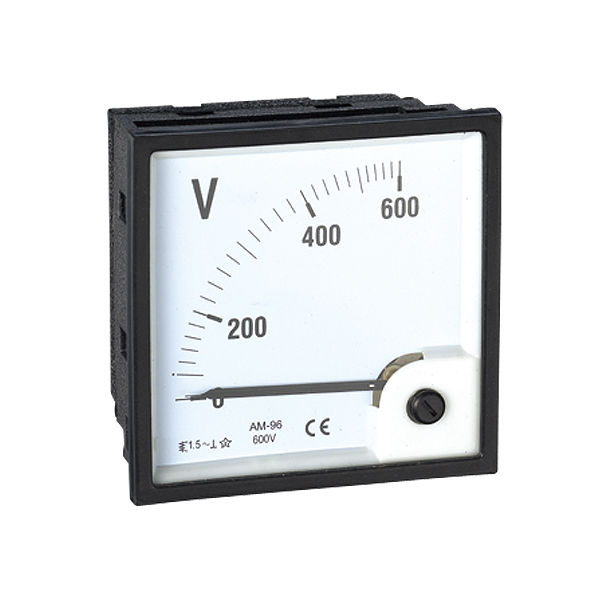

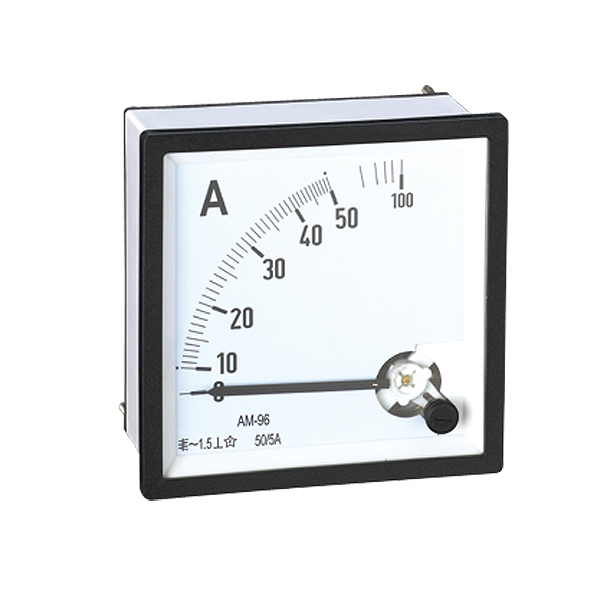

AC.DC.Ameter.Voltmeter AC voltmeters above 600 vp;ts reqiore a basoc 150V meter combined with an external PT Moving coil type:DC 100 uA 50A DC 30V-600V Moving iron type:AC 1A-60A AC 150V-60V Rectifier type:AC 3V-600V AC 1A-5A Accuracy:class 1.5 Model :SD-96 SF-72 SF-48 AC ampere overolad Scale:100%,200%,300%,500%, DC Ammeters above 50A require abasic 50mV meter combined with an external shunt. AC Ammeters above 100A require a basic 5A meter combined with an External CT. |
|

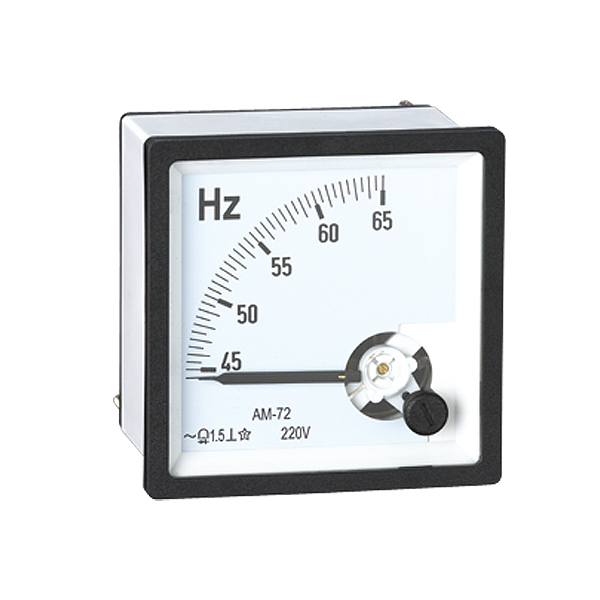

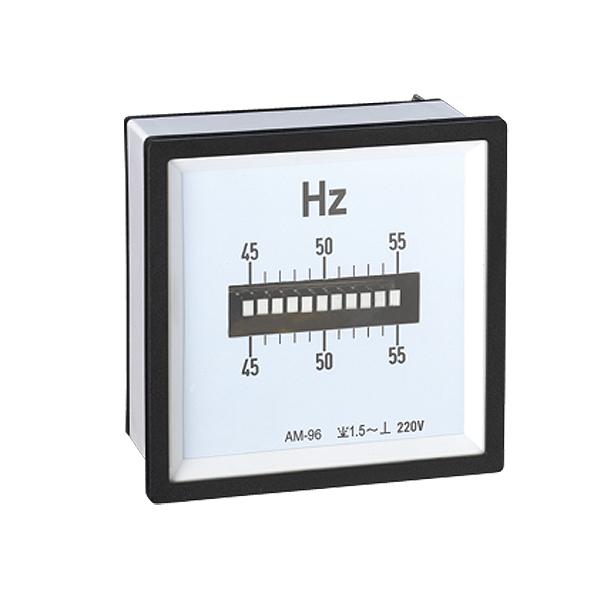

Model:SF-96Hz SF-72Hz SF-48Hz:
|
|
Accuracy |
Class1.5 |
| Working position | Vertical |
| Rated voltage | 100V,220V,380V,500V |
| Limit of voltage fluctuation | ±20% |
| consumption | Max.15mA |
| Test voltage | 2KV,50c/s |
| Measurign range | 45-65 c/s |
| Compostion | Glass window,ABS resin frame and case,PC glss fiber base mounting fittings included |
| Colour | Black base and frame,white scale plate and meter body |
| Pointer | Stick shape in black colour |
|

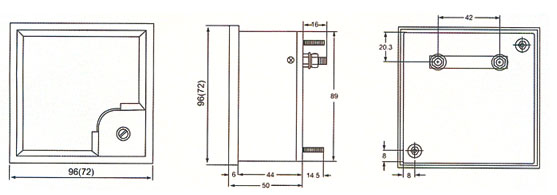

Outline drawing :
|
 |
