Red & Emc Current Transformers

Return

Bookmark This Page

Print This Page

Contact Online

Asia :

　　　　　　　　　　　　Europe & Africa :

Middle East Area :

　　　　Oceania & America :

E-Mail : sales@elecal.com

Catalogue Download (PDF Files)

Add to Inquiry Basket　　

View Inquiry Basket

Rct Series:
Primary current: Secondary current: Standard approval: Maximum voltage: Frequency: Rated load: Class: Short-time thermal current: Rated security coefficient:	100/5-600/5 5A, 1A BS7626, IEC44-1 0.66kV 50/60Hz 2.5VA-15VA 0.5, 0.5s Ith=60×Ih FS<5

Technical data:

Type	A	VA	Class
RED-40	100/5	2.5	1
	150/5	2.5	1
	200/5	5	1
	250/5	5	1
	300/5	10	1
	400/5	10	1
	500/5	10	1
	600/5	10	1

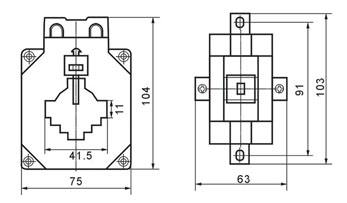

Outline Drawing:

Technical data:

Type	Rated current(A)	VA	Class
EMC-30	100/5	5	0.5
	150/5	5	0.5
	200/5	5	0.5
EMC-40	200/5	5	0.5
	250/5	5	0.5
	300/5	10	0.5
	400/5	10	0.5
	500/5	15	0.5
	600/5	15	0.5

Dimension of case (mm):

Type	A	B	C	D	E	F	G	H
EMC-30	80	108	44	63	77	31	26	11
EMC-40	80	108	44	63	77	41	31	11

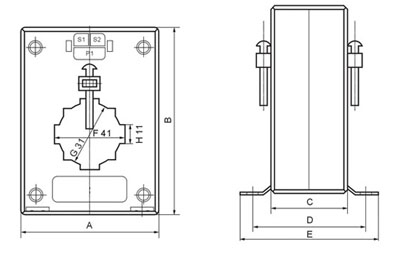

Outline Drawing:
