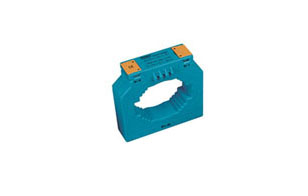

Split core current transformers MES series:

The MES series of current transformer have beautiful outline and Convenient for mounting in many ways. The most current transform need the special mounting and the MES series used the mounting of DIN typing With a lot of times. The protective cover for the terminal block used the switching device with Safety and quick.

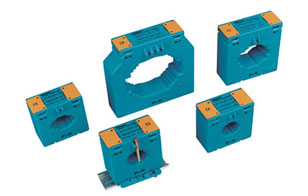

MES guide rail type CT :
Primary current: Secondary current: Standard approval: Maximum voltage: Frequency: Rated load: Class: Short-time thermal current: Rated security coefficient:	5A-3000A 5A, 1A VDE0414, BS7626, IEC44-1 0.72/3KV 50-60Hz 2.5VA, 5VA, 10VA, 15VA 0.5, 1.0 Ith=60×Ih FS<5

Dimension of case [mm]: 　　　

Model	A	B	C	D	E	F	G
MES-62/30	81	47	30	35	71	31	62
MES-62/40	81	47	30	35	71	41	62
MES-30	88	52	30	41	77	31	80
MES-40	88	52	30	41	77	41	80
MES-60	117	57	50	184	77	61	101
MES-100	115	53	86	38	74	101	145

Technical date & Sepecification

Type	Rated current (A)	Rated power (VA)
Type	Rated current (A)	Class:0.5	Class:1
MES-62/30	30/5 40/5 50/5 60/5 75/5 100/5 150/5 200/5	- - - - - 1.5 2 2.5	1 1 1 1.5 1.5 2.5 3 5
MES-62/40	60/5 75/5 100/5 150/5 200/5 250/5 300/5	- - 1 1.5 2.5 3 5	1 1 2 2.5 5 5 7.5
MES-30	30/5 50/5 60/5 75/5 100/5 150/5 200/5	- - - - 1.5 2.5 5	1 1 1.5 1.5 2.5 5 7.5
MES-40	100/5 150/5 200/5 250/5 300/5 400/5 500/5	1.5 2.5 5 5 10 10 10	2.5 5 5 5 15 15 15
MES-60	600/5 800/5 1000/5 1200/5	15 15 15 15	20 20 20 20
MES-100	1000/5 1200/5 1500/5 1600/5 2000/5 2500/5 3000/5	15 15 15 15 15 15 15	30 30 30 30 30 30 30

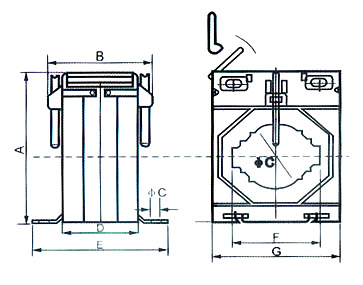

Outline Drawing:
