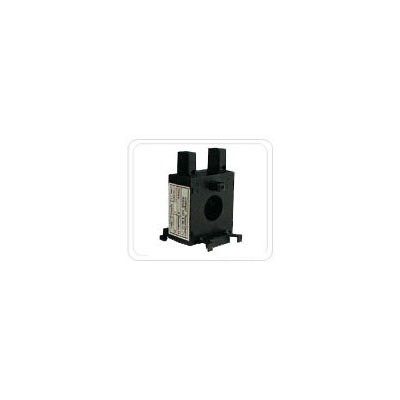

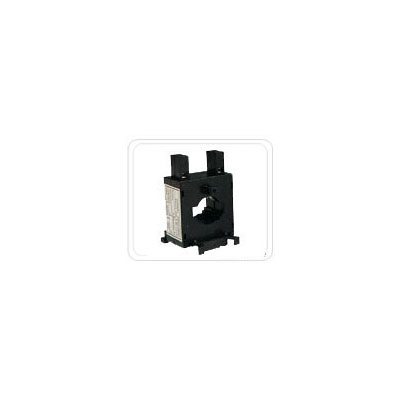

DX Current Transformers

Return

Bookmark This Page

Print This Page

Contact Online

Asia :

　　　　　　　　　　　　Europe & Africa :

Middle East Area :

　　　　Oceania & America :

E-Mail : sales@elecal.com

Catalogue Download (PDF Files)

Add to Inquiry Basket　　

View Inquiry Basket

Dx Series: Model DX-20, DX-30, DX-40 are available for connecting with cable, and also available for connecting with bus bar.
Maximum voltage: Frequency: Class: Short-time thermal current: Mounting methods: Window dimensions :	0.66KV 50-60Hz 1.0 Ith=60Ih either by din rail (35mm) or by screws diameter 22mm (DX-20, DX-20L) 31×10mm (DX-30, DX-30L) 41×10mm (DX-40)

Technical data& Specification:

Model	Primary/ secondary	Busbar Hole Dimension (MM)	Rated Burden (VA)	Class	Rated Voltage
DX-20	50/5A-150/5A	f=20mm	1.5-2.5	1.0	660V
DX-30	100/5A-500/5A	30×10mm	1.5-2.5	1.0	660V
DX-40	150/5A-1000/5A	40×10mm	3-10	1.0	660V
DX-20L	50/5A-150/5A	f=20mm	1.5-2.5	1.0	660V
DX-30L	100/5A-500/5A	30×10mm	1.5-2.5	1.0	660V

Dimension of case (mm):

Model	A	B	C	D	E
DX-20	53	28	57	66	54
DX-30	53	28	57	66	54
DX-40	71	45	73	81	65
DX-20L	53	28	57	66	54
DX-30L	53	28	57	66	54

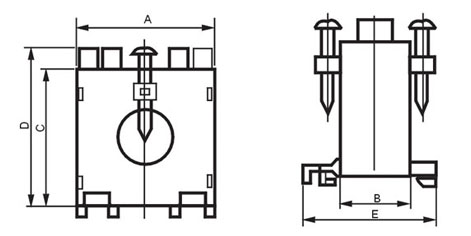

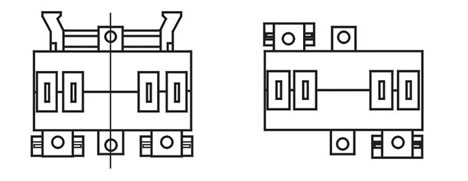

Outline Drawing:
