D363 D364 Series:

Primary current:
Secondary current:
Standard approval:
Maximum voltage:
Frequency:
Rated load:
Class:
Short-time thermal current:
Rated security coefficient:

3×40A-600A
5A, 1A
BS7626, IEC44-1, IEC185
0.72/3KV
50-60Hz
1.25VA-5VA
0.5, 1.0, 3.0
Ith=60×Ih
FS<5

Technical data:

Model	Primary/ secondary	Busbar Hole Dimension	Rated Burden (VA)	class	Rated Voltage	Rated Frequency
D363	3×40/5A-500/5A	3×27mm	1.25-5VA	1/3	0.72	50/60Hz
D364	3×300/5A-600/5A	3×27mm	2.5-5VA	1/3	0.72	50/60Hz

Dimension of case (mm)::

Model	A	B	C	D	E	F	G
D363	185	84	27	75	87	61	41
D364	185	84	37	37	87	61	41

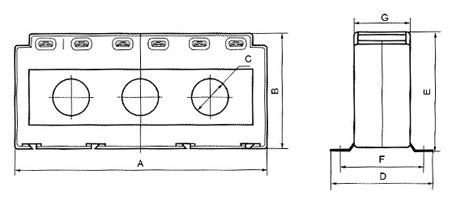

Outline Drawing:
