SFT Current Transformers

Return

Bookmark This Page

Print This Page

Contact Online

Asia :

　　　　　　　　　　　　Europe & Africa :

Middle East Area :

　　　　Oceania & America :

E-Mail : sales@elecal.com

Catalogue Download (PDF Files)

Add to Inquiry Basket　　

View Inquiry Basket

Technical data:

Model	Primary/ secondary	Busbar Hole Dimension	Rated Burden (VA)	class	Rated Voltage	Rated Frequency
2SFT	30/5A-300/5A	30	2.5-5VA	1.0	0.72	50/60Hz
5SFT	100/5A-800/5A	40	5-10VA	1.0	0.72	50/60Hz
19SHT	800/5A-3000/5A	110	15VA	1.0	0.72	50/60Hz

Dimension of case (mm):

Model	A	B	C	D	E	F
2SFT-500	61	68	23	30	51	45
5SFT-601	91	96	72	40	55	70
19SHT-152	165	165	90	110	30	127

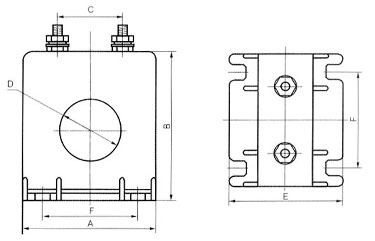

Outline Drawing:
