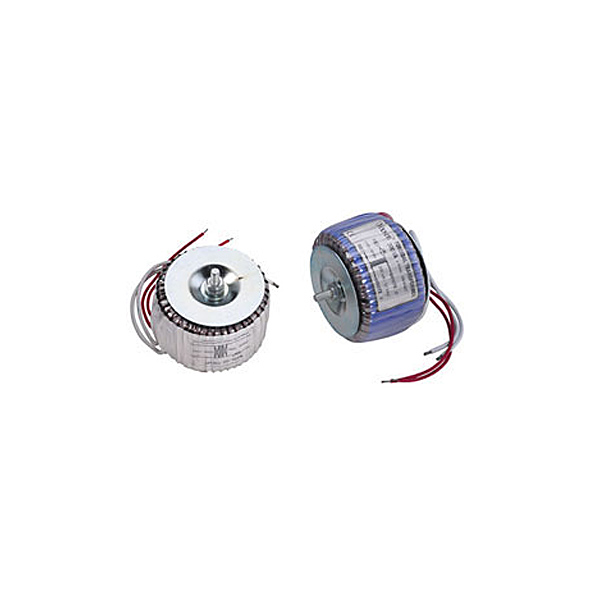

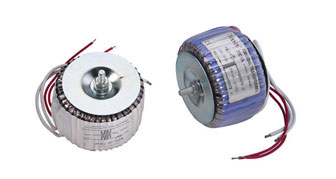

The toroidal transformers are designed and manufactured with rated capacity from 50VA to 1000VA. Advantage:
-Small
-Light
-Changeable dimensions
-Little magnetic field leakage
-Little noise
-Small no-load loss
-High-efficiency
-Low temperaure-rise
-Jnner connection method: Either Welding or Fastening lnner connection method:
-Welding
-Fastening

Technical data & Dimensions: 　　　

DP series toroidal transformers
Model	Rated load (VA)	Static Curren(mA)	Efficiency (%)	Dimensions (mm)
Model	Rated load (VA)	Static Curren(mA)	Efficiency (%)	Height	Diameter
DH-50	50	10	90	45	100
DH-100	100	15	92	50	105
DH-150	150	20	93	55	120
DH-200	200	30	94	60	125
DH-250	250	35	94	65	125
DH-300	300	40	94	60	135
DH-350	350	45	95	65	135
DH-400	400	50	95	75	140
DH-450	450	55	95	70	140
DH-500	500	55	95	80	140
DH-550	550	55	95	70	145
DH-600	600	55	95	85	150
DH-700	700	60	95	85	155
DH-800	800	65	95	85	160
DH-1000	1000	75	95	90	160

Special design could be made acconding to customer's request.
