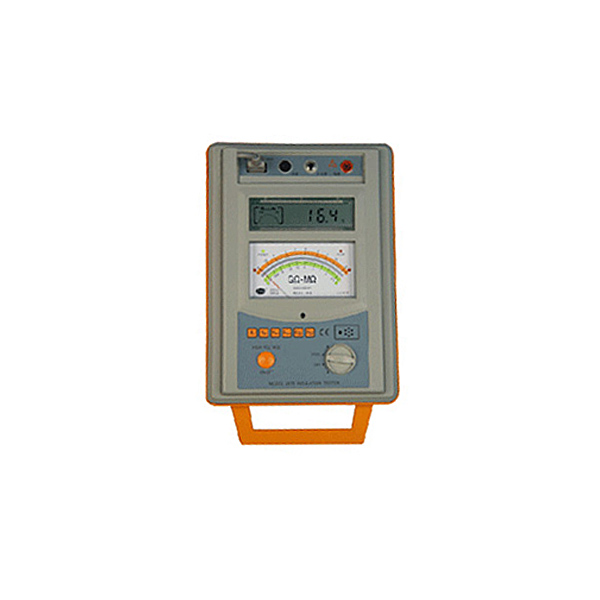

AD2678 Water-Cooled Dynamotor Insulation Tester
 |
 |
Add to Inquiry Basket
View Inquiry Basket
The products that you selected had been put into inquiry basket !|
Application: It can be used for measuring insulation resistance,absorptance(R 60s /R 15s ) and polarization index (R10min/R1min )of water-cooled dynamotor
| |||||||||||||||||||||||||||
 |
Features: * With 2500V rated voltage, test insulation resistance range up to 10GΩ(10000MΩ) * The adjustment for water polarized voltage compensation is not necessary * If the resistance between base and water-pipe is only 3kΩ, the accuracy can be guaranteed. * When water-resistance is more than 80kΩ, the accuracy can be guaranteed * Insulation resistance value can be indicated by scale and 3 1/2 LCD simultaneously * Auto-ranging dual scales and logarithmic scale for easy reading * Display output voltage and surrounding temperature * The timer accumulates the testing time and displays second and minute * During the test, pressing the button [Rt] can read the resistance value of anytime accurately from LCD digital display * The value of R15s ;R 60s ;R10min ; R60s /R15s ; R10min /R 1min can be automatically tested and memorized. * Complete protective function serves safety operation. | ||||||||||||||||||||||||||
Specifications
| |||||||||||||||||||||||||||
