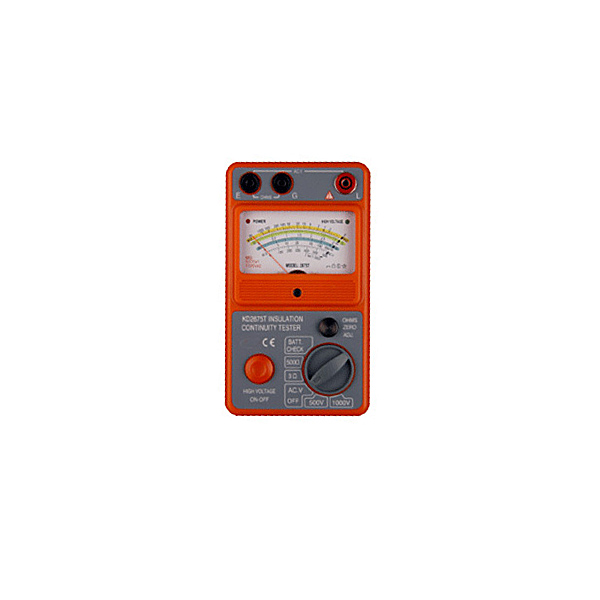

AD2675T Insulation/Continuity Tester

Bookmark This Page

Print This Page

Contact Online

Asia :

　　　　　　　　　　　　Europe & Africa :

Middle East Area :

　　　　Oceania & America :

E-Mail : sales@elecal.com

Catalogue Download (PDF Files)

Add to Inquiry Basket　　

View Inquiry Basket

Application:
Insulation/continuity resistance measurement of electric equipment in repairing,testing or inspecting
Features:
* Two rated voltages for insulation test
* Logarithmic scales display resistance value for easy reading
* 1mA short circuit current on insulation test
* 200mA short circuit current on continuity test
* A 600V AC voltmeter available.
* Low power consumption and powered by 6×1.5V battety (R6 or
LR6).
* Provide with battery check function
* Portable and easy-to-operate.

Insulation Resistance:

Rated Voltage		500V ; 1000V
Open Circuit Voltage		Rated Voltage ( +2 0% - 0 % )
Measuring Range		( 0~1000) M Ω ;(0~2000) M Ω
Range & Error	Error	( 1~500) MΩ	( 2~1000) M Ω
	Error	(0.5 ~ 1 ) M Ω ( 500 ~ 1000 ) M Ω	( 1 ~ 2 ) MΩ (1000 ~ 2000 ) MΩ
Short Circuit Current		≥ 1 mA

Continuity:

Open Circuit Voltage	>4V
Measuring Range	( 0 ~ 3 )Ω ; ( 0 ~ 500 ) Ω
Accuracy	± 5 % RDG
Short Circuit Current	> 200 mA

AC.Voltmeter:

Range & Error

(0~600)V ± 5 %

Withstand Voltage	AC3KV 50Hz 1min
Operating Temperature&Humidity	0℃~40℃; < 85% RH
Power Supply	6×1.5V (R6 or LR6) Battery.
Dimensions	190 mm ( L ) × 110 mm( W ) × 58 mm ( D )
Weight	≈0.5kg
